LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 08/08/2013. View RIKs with Limited Availability for a complete list.

Expiration Reason: RI7100A Limited Support

Aditional replacements may be found by searching for RIK0081 (change the REV letter) or Fixture, Bench-Top 20RF, Active Carrier.

Out of Stock: Ships Contact Factory ARO

Fixture, Bench-Top 20RF, Active Carrier

"Soft Dock" RI7100A Fixtures

Part Number: RIK0081A

In Stock: 0

Estimated Restocking Time: Contact Factory

$5,772
Allows Benchtop Calibration and DIB debug with any Top Plate and only required hardware (unbundled)

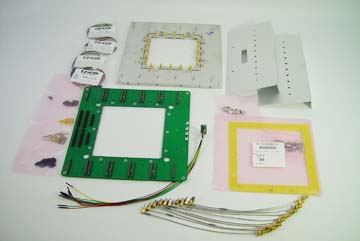

Kit includes the following:

  • Bulkhead SMA connectors
  • EZ Hook DC cables
  • Pogo Pins and Receptacles
  • Pogo Alignment Tool
  • Fixture Top Plate
  • Fixture Carrier
  • Side Covers
  • 1/4" hole covers caps
Note: Full assembly is required.

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1M673SZ1A31SCREW, FLAT PHIL, 4-40 X 1/4", SS, BLK OX, W/NYLOCKHrdwr
2M6J2JS1A16SCREW, SEMS, 4-40 X 1/4" SSHrdwr
3M6MJ8T1A45RECEPTACLE,POGO PIN (DUT Pogo)PcbCnnct
4M6MJ8Y1A45PROBE,POGO PIN (DUT Pogo)PcbCnnct
5M7VBFN2A2Jumper Wire Set 8" (10pcs.) 28AWGCblMsc
6M8MBX01A10Coax,Confrm,.085, 90° SMAM-SMAF Bulkhead, 9.0"Coax
7M8UKXC2A2Cable Assy Ribbon 40cond 6"Rbbn
8M9PLE91A2Cable Assy Ribbon 40cond 18inRbbn
9MBPYNY1A10Hole Plug, finishing, 1/4" nickle pltd steelMchCmp
10MC8X3J1A2Jumper Wire Set 12" (10 pcs.) 28AWGCblMsc
11MEJFZB4E1VI harness 16", 10 pin, active*CblMsc
12MER2651A1Fixture, Top Plate Multi w/ 20 SMA*MscAssy
13RIK0083A1Pogo Alignment Tool, 20RF*CstmrKt
14W1MFCNYA2side bench multi fix*MchFb
15Y00065A11Super Fixture Carrier, Active*PcbAssy
BOM Refreshed:10/13/2019 06:40 PM
