Cassini Fixtures, RIK0120A

Part Number: RIK0122A

In Stock: 0

Estimated Restocking Time: Limited Availability: 12+ weeks

$3,028

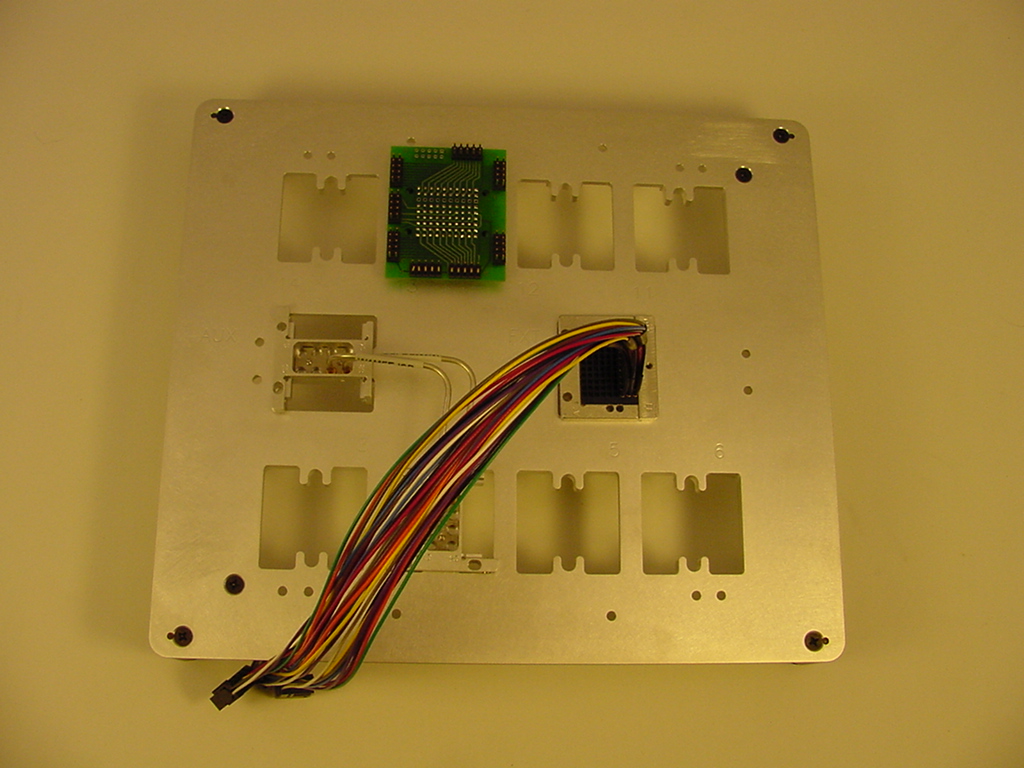

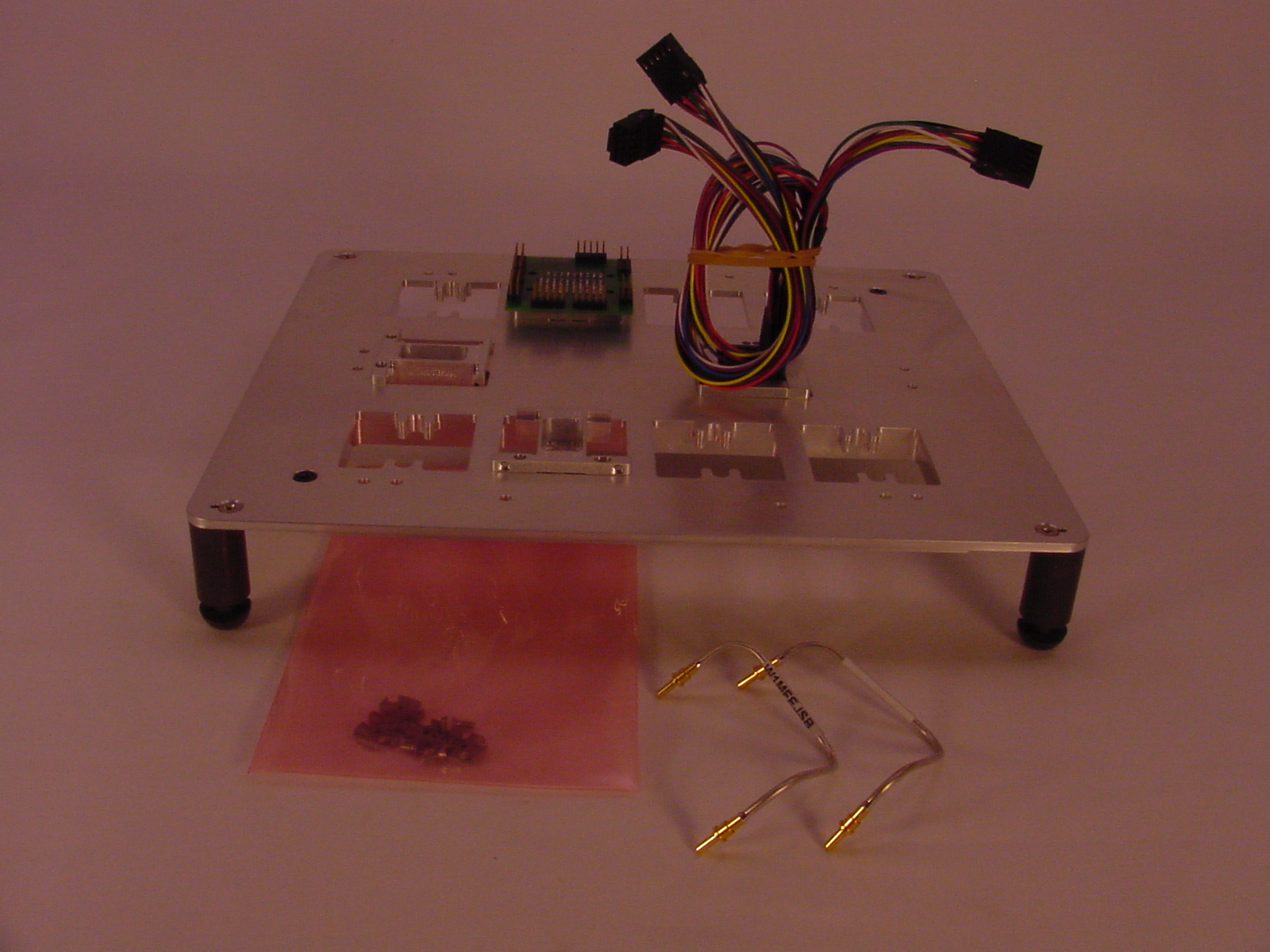

Cassini bottom plate with fixture interface block, 2 RF blocks, 1 DC block and cables. Only compatible with 8 slot Cassini (not RI7100A). To be used with the RIK0120A Top Plate Assembly. You must include RF and DC blocks for each TIM.

Related Documents:

User account required Create new account
Database 'Product Docs', View 'All Documents', Document 'Test Fixtures - Bottom Plate Assembly Resources - Cassini'Bottom Plate ResourcesRIK0122A.JPGDSC01585.JPG

Item Ref Part Number QTY Description Category Qty in Stock
1MC7SVE1A4SCREW, TRUSS PHIL, 4-40 X 3/16" SSHrdwr
2MCJK5K1A6SCREW, 100° FLAT PHIL, 6-32 X 5/16", SS, BLKHrdwr
3MHTLXT3A1Cassini Matrix Fixture Control Block, 12"*CblMsc
4RIK0103A2RF Block Assembly 8 RF*CstmrKt
5W1MFCBZM1MOD FIX BOT, 8 SLOTMchFb
6W1MFCXGE4FOOT, FIXTURE MFIX*MchFb
7W1MFECGA2Actuator Fixture Switch, Cassini*MchFb
8W1MFEJRB1Coax,Semi-Rigid,.085,#12F-#12F 5.5" bent short for fixture*Coax
9W1MFEJSB1Coax,Semi-Rigid,.085,#12F pkz-#12F pkz 5.5" bent long for fixture*Coax
10Y0007WA21Universal Block Assy, DC, Cassini Matrix Fixt. DC Block*PcbAssy
