Out of Stock: Ships 1-2 weeks ARO

Fixture Side Covers ( Panels / Plates ) for 12 RF size Top plate

12/30RF Fixture Sides for RI7100 & Cassini 8

Part Number: RIK0182B

In Stock: 0

Estimated Restocking Time: 1-2 weeks

$420
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

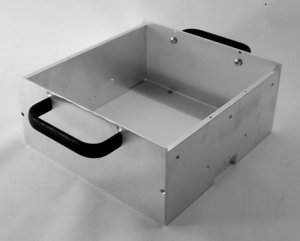

Standard Side plates used in 12/30RF Top Plate Fixtures with RI7100A or 8-slot Cassini bottom plate. (note: compatible with Cassini 16 testhead when TIMs are configured in the 8 available slots)

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock

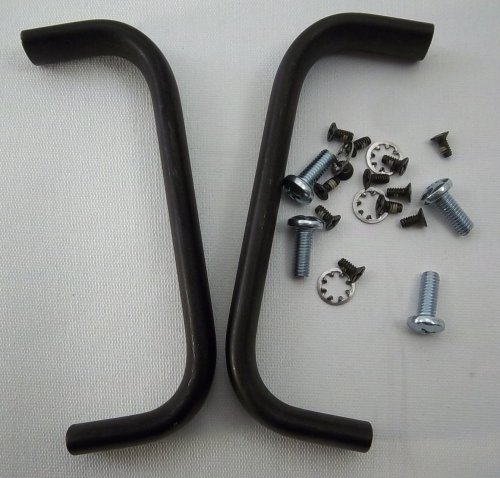

1M5YFXT1A2HANDLE 4" BLACKMchCmp
2M673SZ1A12SCREW, FLAT PHIL, 4-40 X 1/4", SS, BLK OX, W/NYLOCKHrdwr
3M673YF1B4SCREW, PAN HEAD, 10-32 X 3/8", SS, w/patchHrdwr
4M6JGN21A4WASHER, LOCK, #10 INTERNAL TOOTHHrdwr

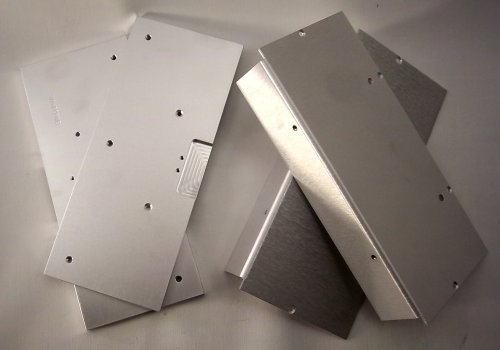

5W1MFCBWB2FIXT,SIDE,SQR (3 hole Moto mod) for 12RF size Top PlateMchFb
6W1MFFAHA2SIDE PANELS 12RF FIX TO CASSINI 8*MchFb
BOM Refreshed:08/18/2019 07:21 PM
