Dual SP4T RF Switch DC - 20GHz (Single Module)
Switch RF up to 20 GHz
Part Number: RIK0203B
Estimated Restocking Time: 1-2 weeks
Two (2) RF SP4T switches. Requires RIFL carrier ( RIK0200A )

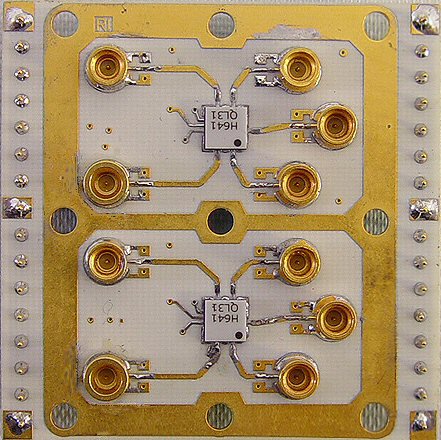

The RIK0203B includes one DUAL SP4T 5MHz to 20GHz RF module. It is intended to be used with the all RI active series carriers. It is especially easy to use since DC wiring is not required when used in conjunction with the smart carrier (RIK0200A). It also helps to reduce fixture complexity where a high level of RF switching is required.
The RIK0203B includes one DUAL SP4T 5MHz to 20GHz RF module. It is intended to be used with the all RI active series carriers. It is especially easy to use since DC wiring is not required when used in conjunction with the smart carrier (RIK0200A). It also helps to reduce fixture complexity where a high level of RF switching is required.
Related Documents:
User account required Create new account | RIK0203B - 20GHz SP4T Absorbtive Switch |
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | ARUW6A5A | 1 | RIK0203B, Packaging Back, Sheet of 9 | Dcmnt | ||
| 2 | M6NT5E1A | 18 | SCREW, CAP HEAD, 2-56 X 3/16", SS | Hrdwr | ||
| 3 | MRTMTG1A | 3 | Antistatic poly tube, 4" dia. | Sppls | ||
| 4 | MRU4K51A | 1 | Clam Shell Packaging Inside Cavity 3.124W"X2.5H"X 1.25D | Sppls | ||
| 5 | MRUPKK1A | 1 | EMI-RF absorber Material, Adhesive backed, .030" (.075mm) | MscElctC | ||
| 6 | MRURC91A | 1 | Packaging Foam, 1" Anti-Static for Clamshell Packaging, GR 5GCW5 | Sppls | ||
| 7 | MRUT9B1A | 1 | Packaging, Plastic Tube, 3/8" dia. Thin/Medium Wall, | Sppls | ||
| 8 | MRUTN01A | 2 | Packaging, Plastic Cap, 3/8" Dia. for Plastic Tubing | Sppls | ||

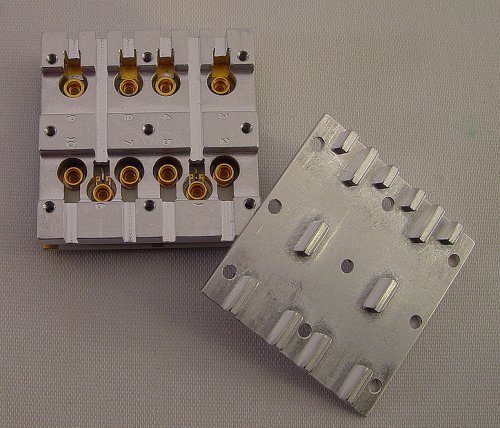

| 9 | W1MFFCRF | 1 | Case 20GHZ SP4T SWITCH SSMP | MchFb | ||
| 10 | W1MFFFAC | 1 | Lid SSMP 20 gHz Switch SP4T | MchFb | ||
| 11 | Y000BZB2 | 1 | FIXTURE SWITCH MODULE, 20GHZ, SP4T, 3.3V LOGIC ONLY! (RIFL Carriers)* | PcbAssy |
