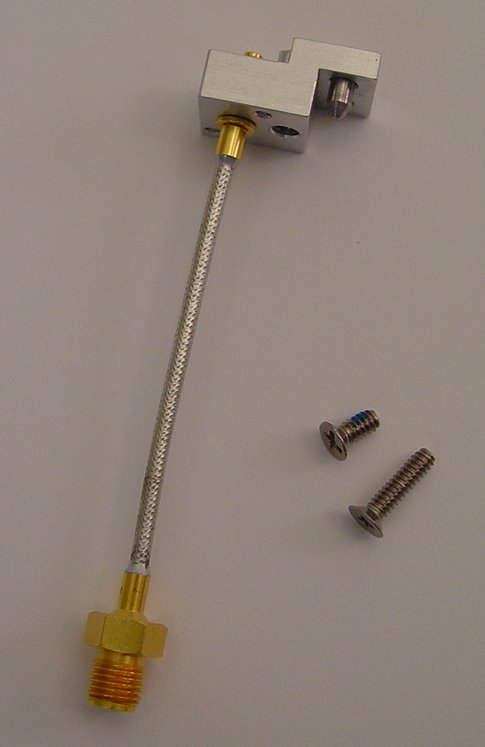

Matrix Fixture Insert, 20 GHz SSMP Fixture (Side B)

Fixture side of resource pair. Requires RIK0216A SSMP Connector. Frequency to 20GHz. Power up to CW 100 Watts.

Part Number: RIK0217A

In Stock: 0

Estimated Restocking Time: 12+ weeks (limited)

$640
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

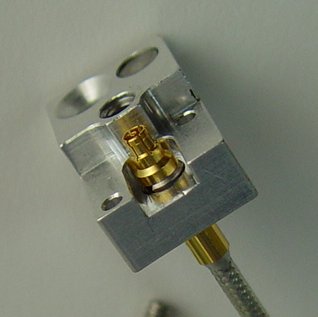

Bottom and TOP shown installed.

Board Bottom (RIK0216A)
Fixture Top (RIK0217A)



SSMP PCB Application Note_v5.pdf
