LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 10/05/2011. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0166B

Expiration Reason: Use rev B (3 rows)

Aditional replacements may be found by searching for RIK0166 (change the REV letter) or Block, FIX Pwr, Cbits and Serial Number (2 rows).

Out of Stock: Ships 12+ weeks (limited) ARO

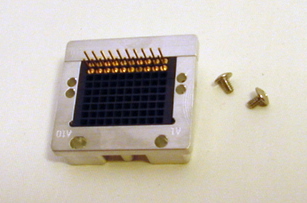

Block, FIX Pwr, Cbits and Serial Number (2 rows)

Engineering Plates & Passive Fixtures (without carrier)

Part Number: RIK0166A

In Stock: 0

Estimated Restocking Time: 12+ weeks (limited)

$260

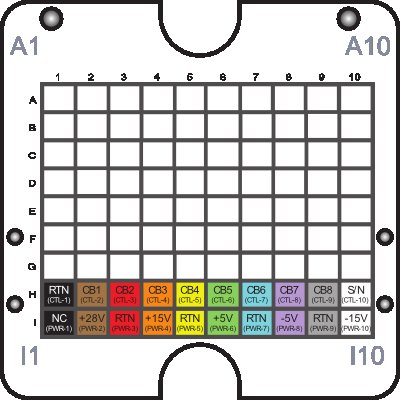

Provides pins to connect Fixture Power, Serial Number and CBITS to an Interface plate or passive fixture (no carrier). Normally a harness connects the bottom plate to the top plate in a Fixture and these pins are available from the carrier.


Related Documents:

User account required Create new account
Product Docs
Test Fixtures - Bottom Plate Resources - Cassinihttp://roos.com/docs/DFES-6Y6VY8?Open

Item Ref Part Number QTY Description Category Qty in Stock
1GF993W2A20PIN,Hypertronics,Nseries,MALE,wirewrapCnnctr
2M6NT5E1A2SCREW, CAP HEAD, 2-56 X 3/16", SSHrdwr
3MC7SVE1A2SCREW, TRUSS PHIL, 4-40 X 3/16" SSHrdwr
4MFAL5G1A9Housing,Hypertronics,Nseries,Module PCnnctr
5MMBGWJ1A1Fixture Block, Cbits,SN,power, for RIK0166A*Dcmnt
6W1MFEGVA1S2 MFIX V2MchFb
7W1MFEGWA1S2 L MFIX V2MchFb
BOM Refreshed:05/11/2020 06:23 PM
