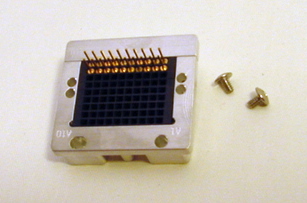

Block, FIX Pwr, Cbits and S/N pins (2 rows, No RIFL)
Engineering Plates & Passive Fixtures (without carrier)
Part Number: RIK0166B
Estimated Restocking Time: 1-2 weeks
NOTE:
Thread-locking fluid (RIK0204A) should be applied to screws.
Provides pins to connect Fixture Power, Serial Number and CBITS to an Interface plate or passive fixture (no carrier). Normally a harness connects the bottom plate to the top plate in a Fixture and these pins are available from the carrier.
Requires DC Cables to connect cbits and power to Fixture Modules or DIB.
Related Documents:
User account required Create new account | Test Fixtures - Bottom Plate Resources - Cassini | http://roos.com/docs/DFES-6Y6VY8?Open |
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MMXT225A | 1 | Diagnostic Fixture Connector Block* | MscAssy |
