Fixture Bottom Plate, Cassini 16 slot, Basic Assembly

Hard Dock, Standard 16 TIM, Cal & Characterization

Part Number: RIK0178A

In Stock: 0

Estimated Restocking Time: 12+ weeks (limited)

$792
DO NOT use this for new Designs.

Suggested Replacement: RIK0178B

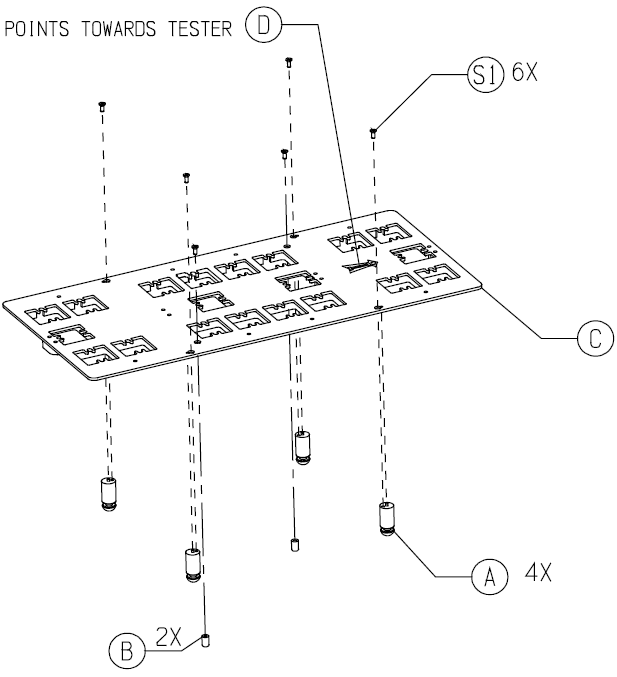

1st Image: Bottom Plate

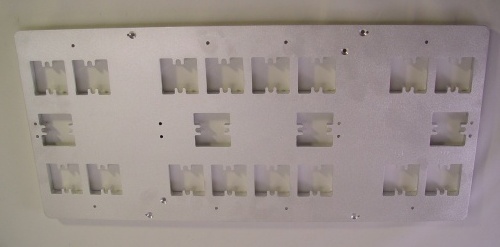

2nd Image: Hardware

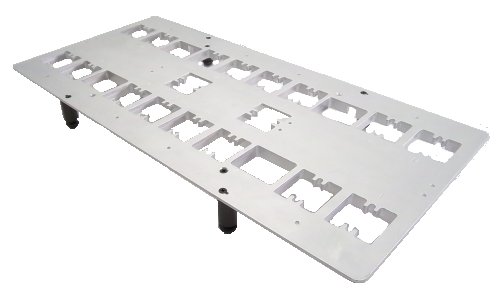

3rd Image: Assembled

Standard bottom plate assembly used on the Cassini 16 Test Head. This Bottom plate can be used as a Soft-dock solution with TIM blocks to connect Evaluation Boards or it can be used with Sides and a Top Plate, Carrier boards, etc. to form a complete Hard-dock fixture.


Related Documents:

User account required Create new account

Product Docs Fixture Assembly Steps - Cassini 16 with InTest Top Plate (RIK0178A, RIK0152B, RIK0164A)


Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1S1MK3VSY1A6SCREW FLAT PHIL 6-32 x 5/16, 100°, ssHrdwr
2MN46RU6A1ASSY document for RIK0178ADcmnt
3DW1MFCPNA1Label, Fixture Orientation arrowMchFb
4AW1MFCXGE4FOOT, FIXTURE MFIX*MchFb
5BW1MFECGA2Actuator Fixture Switch, Cassini*MchFb
6CW1MFEGHK1MOD FIX BOT 16MchFb
