10 In Stock

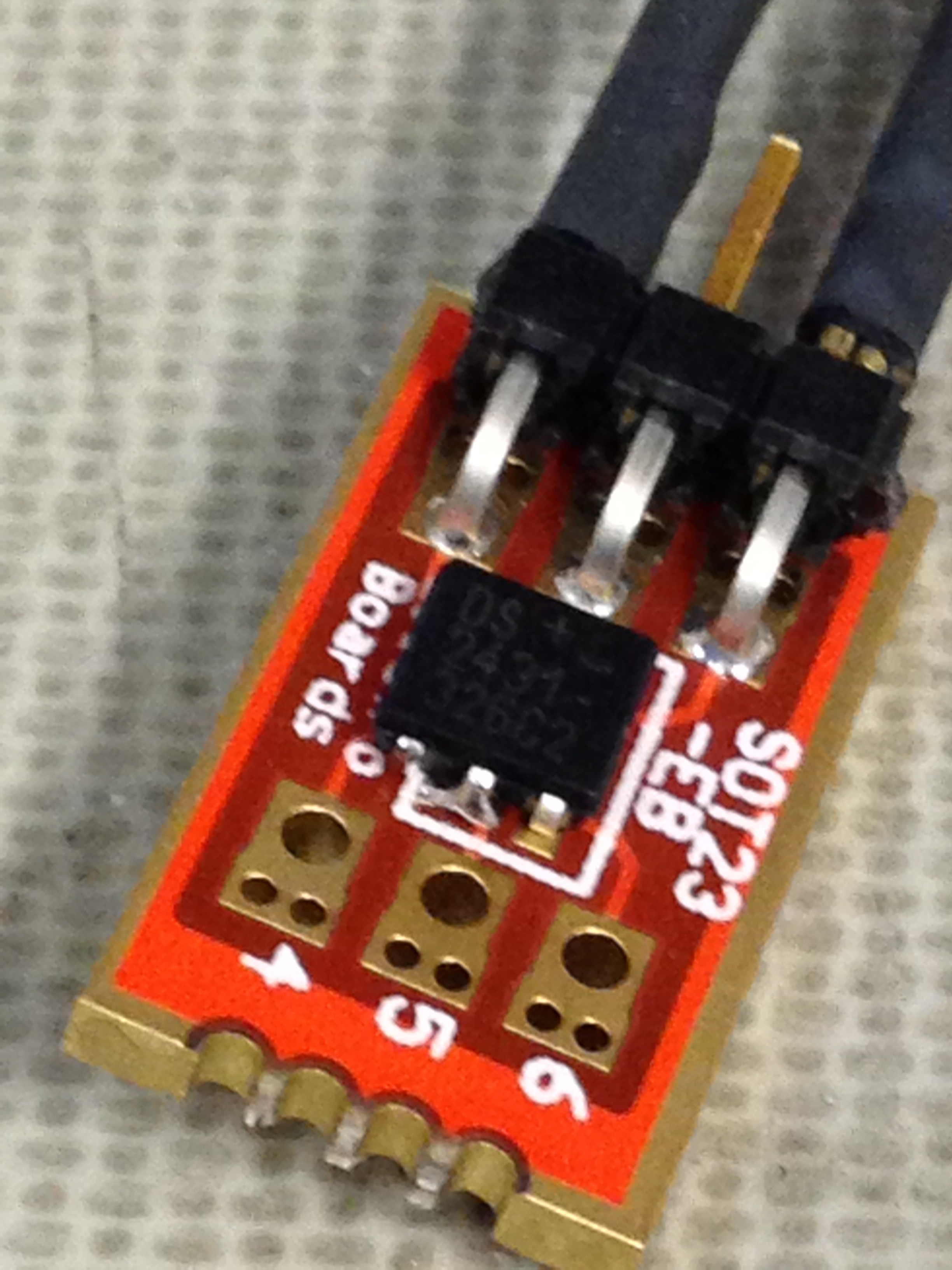

SN Chip Wire Length Adjustable 4 Wire (1ea.)

Fixture or DIB SN for softdock

Part Number: RIK0300A

$150

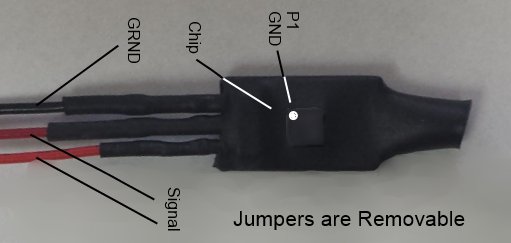

Fixture SN Harness with removable jumpers. Ground is Black and Red is Signal. Pins two and three are common to each other.

Related Documents:

User account required Create new account
Assigning ID or Serial Number (ESN) Chip with Fixture or DIB (Fixture Assembly) https://roos.com/docs/RBEH-8L4VSD

Connect red lead to S/N FIX Block pin. If a FIX carrier is used, connect to S/N pin on the carrier. Multiple S/N chips should be connected to the same pin and is read by Cassini during startup or system check.

Item Ref Part Number QTY Description Category Qty in Stock
1MJUMNF4B1Matrix Fixture, Serial Number (SN) Harness, 4 wire*CblMsc
BOM Refreshed:05/11/2020 06:26 PM
