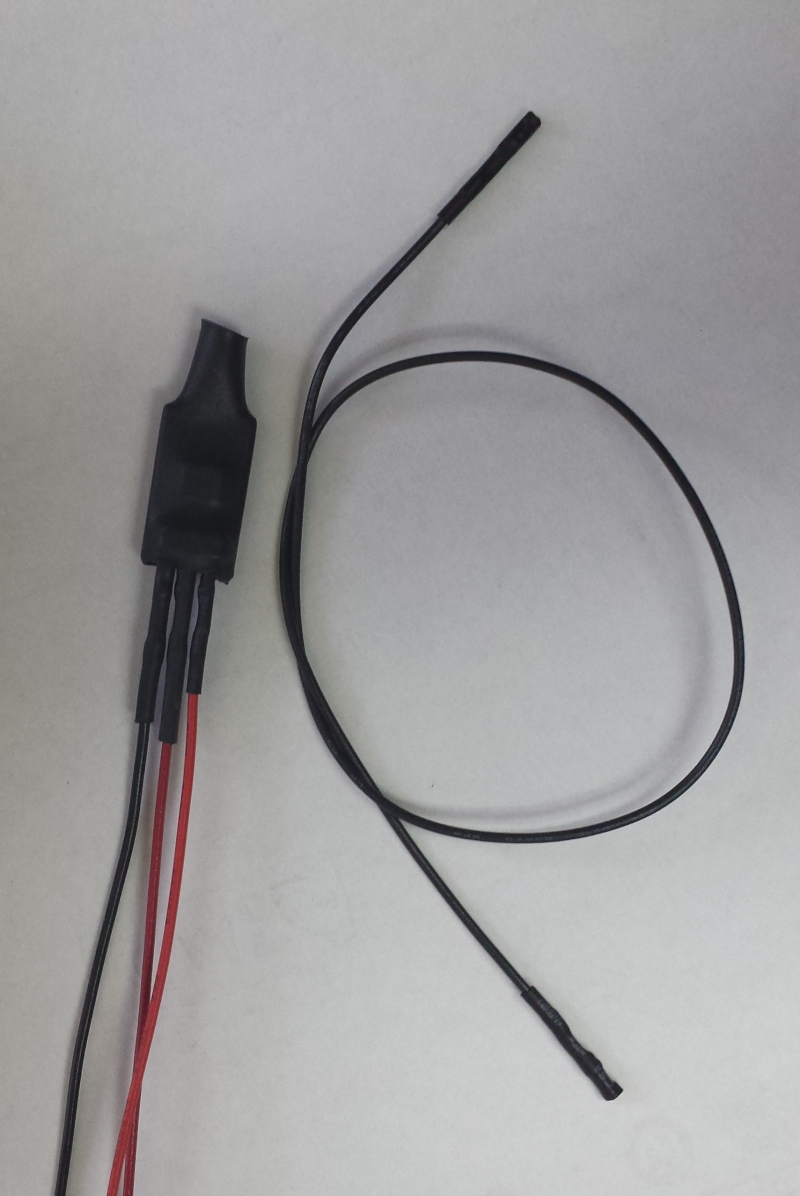

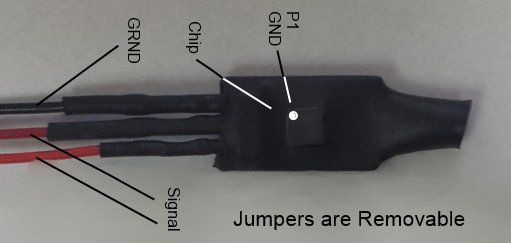

Fixture SN Harness with removable jumpers. Ground is Black and Red is Signal. Pins two and three are common to each other.
Related Documents:User account required Create new account
Assigning ID or Serial Number (ESN) Chip with Fixture or DIB (Fixture Assembly) https://roos.com/docs/RBEH-8L4VSD
Connect red lead to S/N FIX Block pin. If a FIX carrier is used, connect to S/N pin on the carrier. Multiple S/N chips should be connected to the same pin and is read by Cassini during startup or system check.
|Item||Ref||Part Number||QTY||Description||Category||Qty in Stock|
|1||MJUMNF4B||1||Matrix Fixture, Serial Number (SN) Harness, 4 wire*||CblMsc|
