9 In Stock

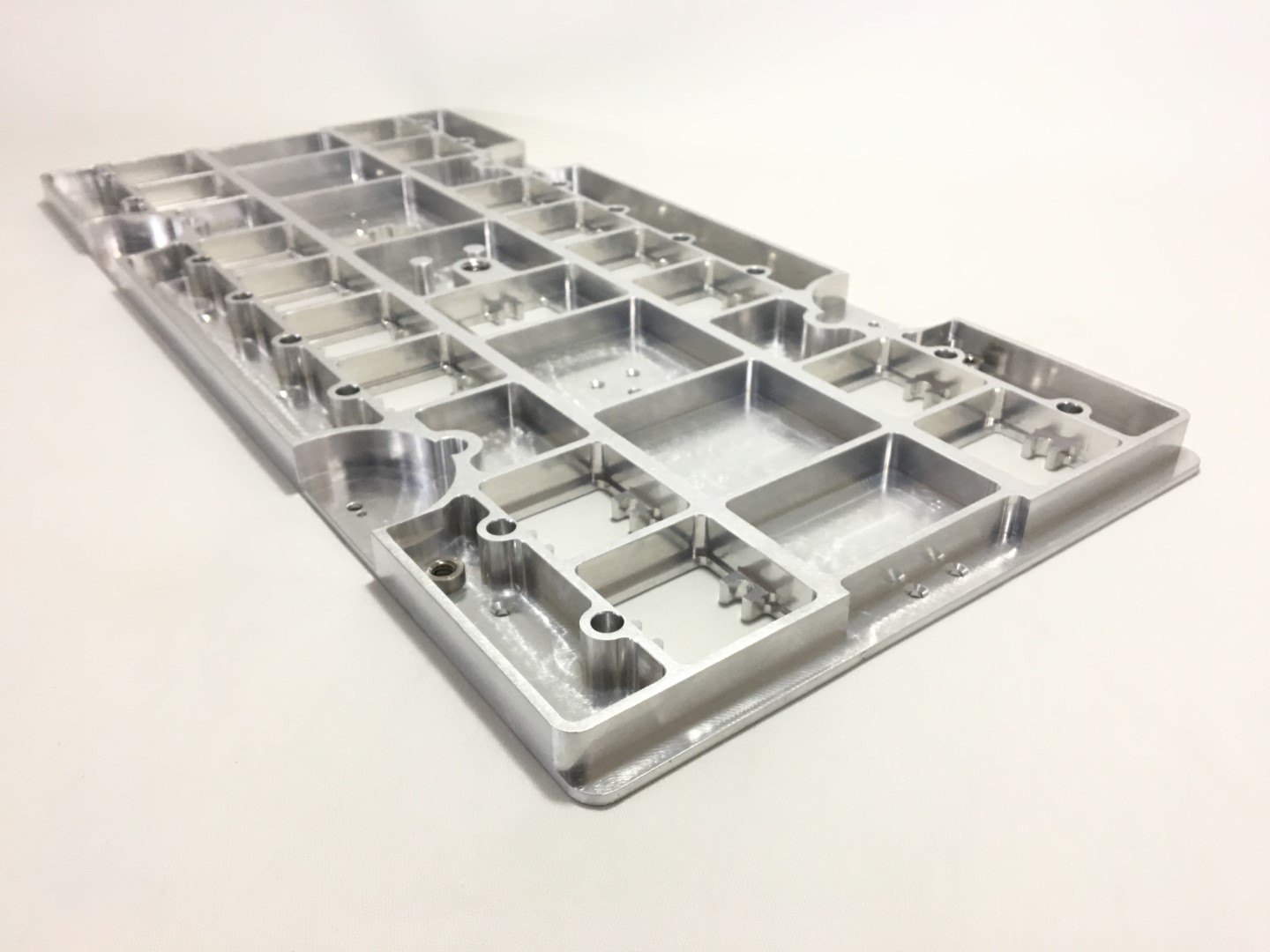

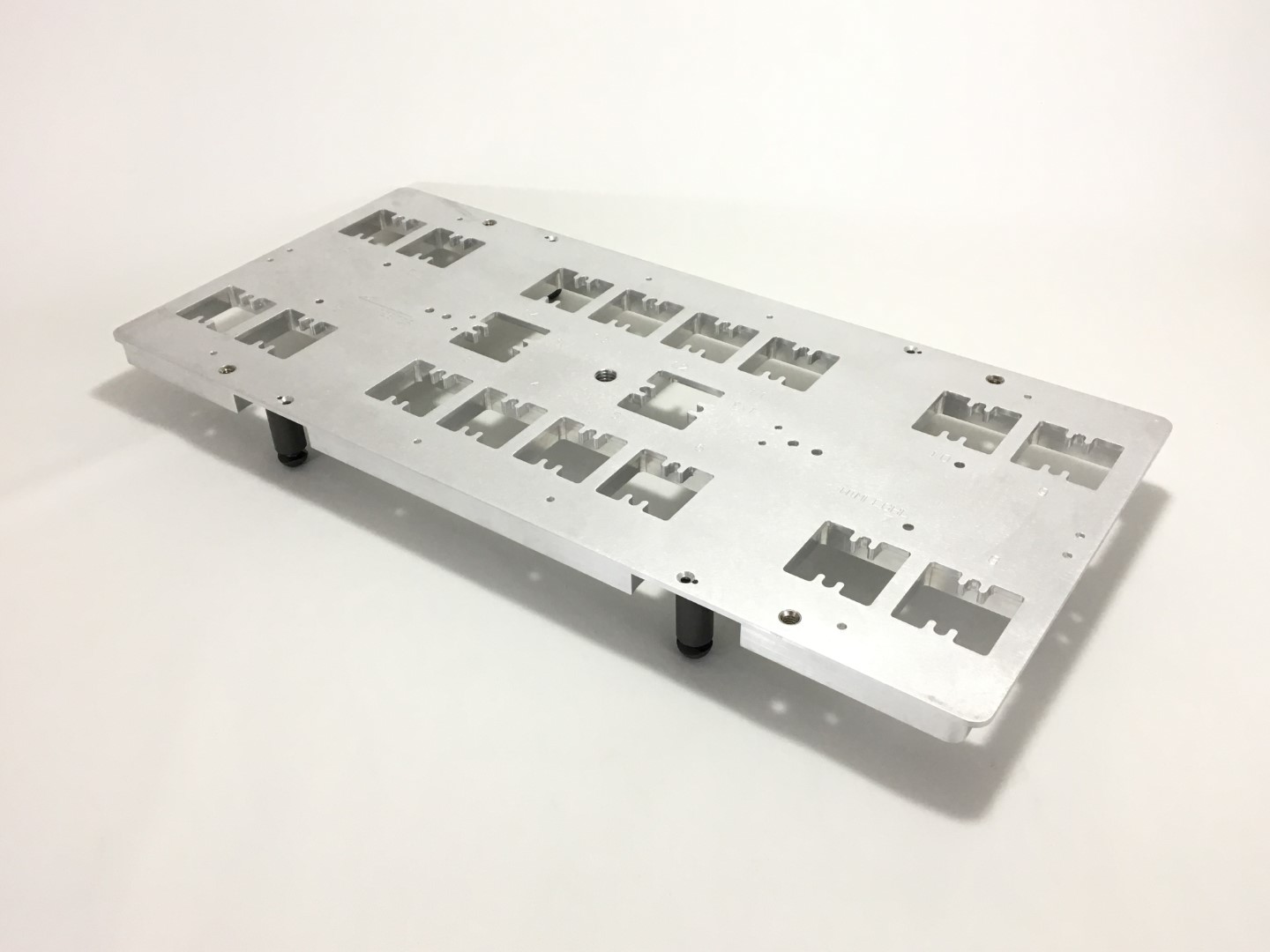

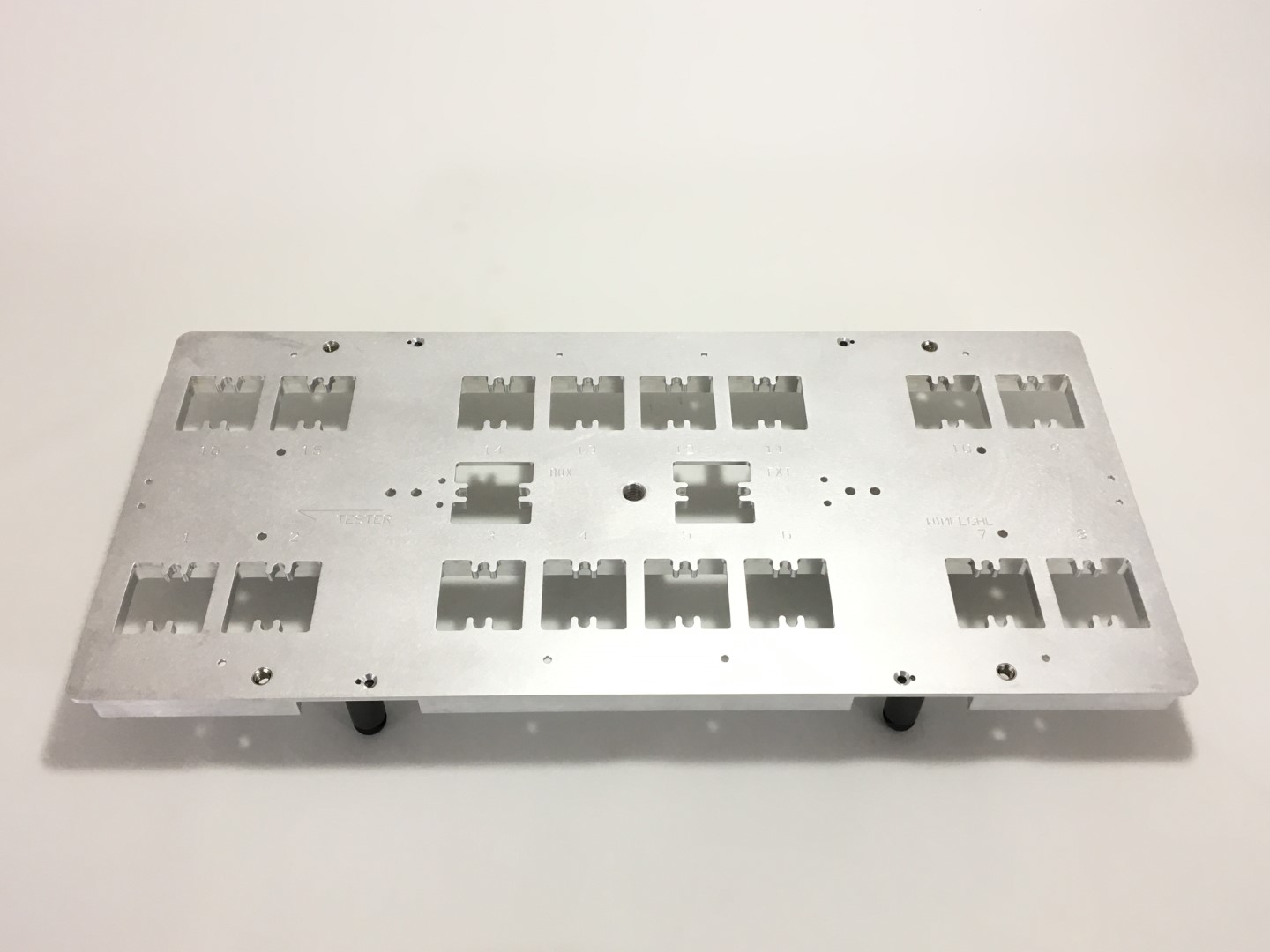

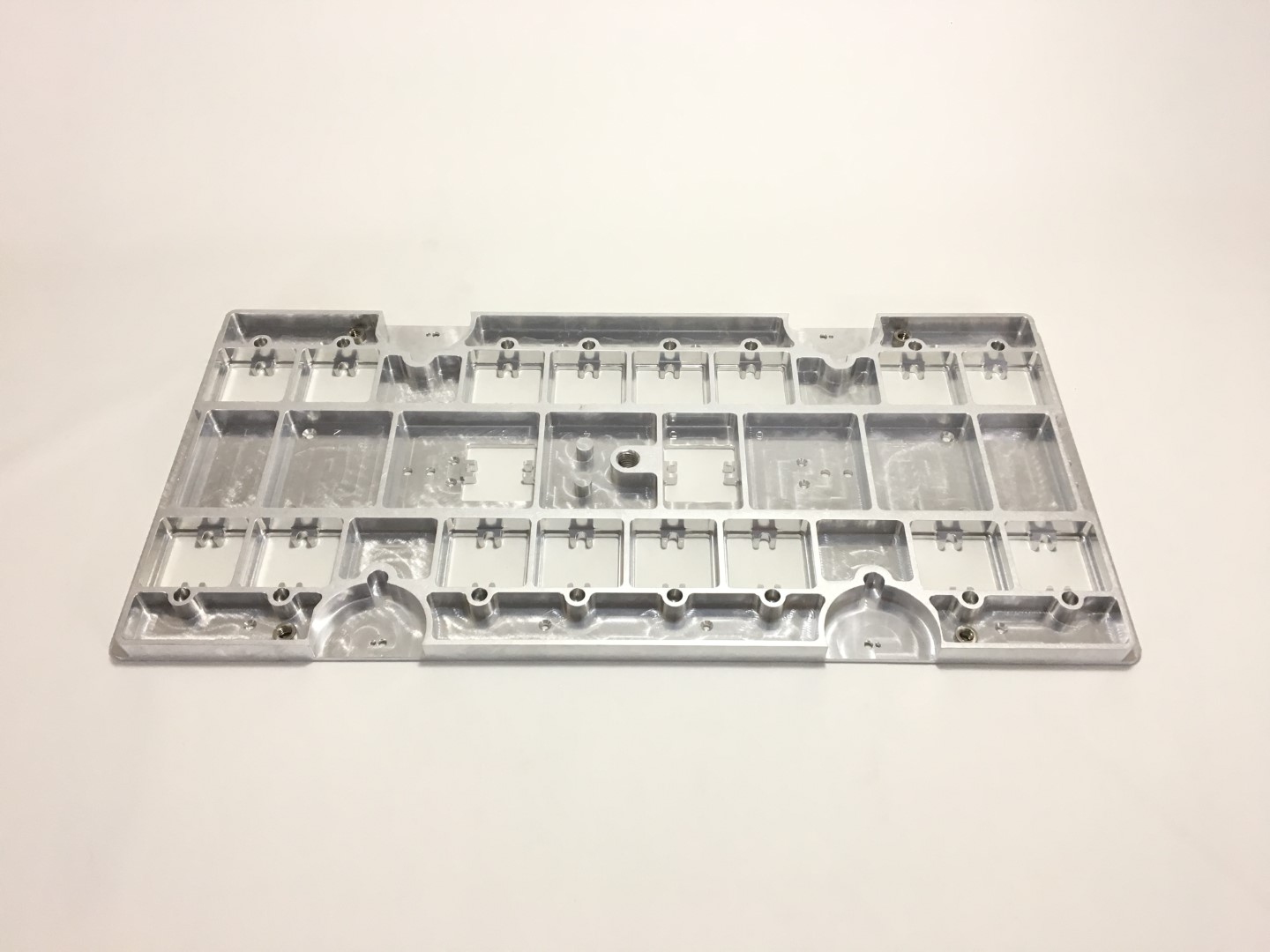

Fixture Bottom Plate, Cassini 16 slot, Basic Assembly

Hard Dock Fixtures, Diag, Cal & Characterization

Part Number: RIK0178C

Estimated Restocking Time: 1-2 weeks


Standard bottom plate assembly used on the Cassini 16 Test Head. This Bottom plate can be used as a Soft-dock solution with TIM blocks to connect Evaluation Boards or it can be used with Sides and a Top Plate, Carrier boards, etc. to form a complete Hard-dock fixture.

Related Documents:

User account required Create new account

Product Docs Fixture Assembly Steps - Cassini 16 with InTest Top Plate (RIK0178A, RIK0152B, RIK0164A)

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1S1MK3VSY1A4SCREW FLAT PHIL 6-32 x 5/16, 100°, ssHrdwr
2DMN46RU6B1ASSY document for RIK0178BDcmnt
3AW1MFCPNA1Label, Fixture Orientation arrowMchFb
BOM Refreshed:05/07/2020 06:25 PM
