Matrix Fixture, Quad Top Plate (Numeric)

Quad site Matrix Fixtures (new builds)

Part Number: RIK0285A

In Stock: 0

Estimated Restocking Time: 4-6 weeks

$984
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

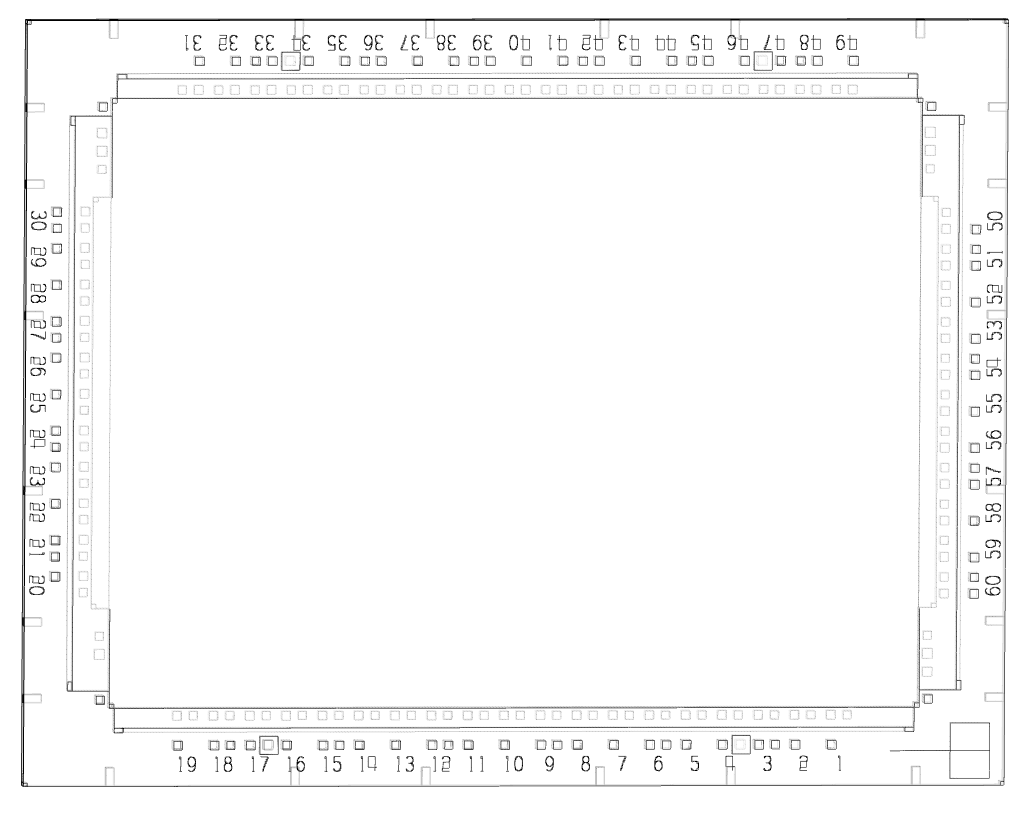

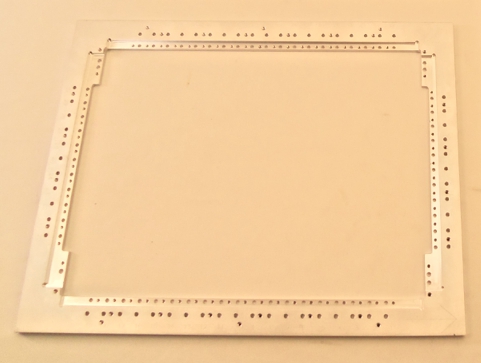

Matrix Fixture, Large DIB Fixture Top Plate, Compatible with Intest Designs

Numeric only Insert location mapping. New designs should use this top plate ( RIK0285A ). Alternate Alpha+Numeric Top Plate is limited availablity ( RIK0277A ).



Supports Up to 60 Inserts

10.5x13.5"


Related Parts:
RIKDescriptionKit Type
Product Catalog
277AMatrix Fixture, Quad Top PlateFixture Top Plates
Product Catalog
278AMatrix Fixture, Quad Pedestal SupportFixture DIB Layer
Product Catalog
279AMatrix Fixture, Quad DIB ClampFixture DIB Layer

Item Ref Part Number QTY Description Category Qty in Stock
1MGZ88J1A1Standoff, 4-40 x 3/8, M/F 3/16, Hex, SSHrdwr
2MH3FNL1A14SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr
3W1MFFSBA1NUMERIC TOP FIX INSERT QUAD 13.5X10.5MchFb
BOM Refreshed:02/20/2019 07:23 PM
