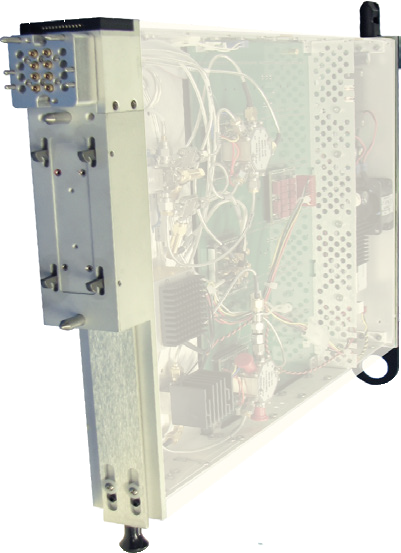

Test Set, 20 GHz, 4 Port TIM

Thinner TIM allows adjacent T-Location to be used.

Part Number: RI8545C

Please visit the Instruments page for the latest Briefs.

Test Instrument Modules Browse Instruments »

Switching and signal conditioning for 4 complete network measurement ports up to 20 GHz. Includes RF Measurements for S parameters, Noise figure and Spectrum Analysis.

NEW - Single width TIM does allows adjacent T-Location to be used.
