This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 04/06/2012.
View RIKs with Limited Availability for a complete list.
Suggested Replacement: RIK0200A
Expiration Reason: RIFL Carrier control modules at full speed and can support up to 13 Modules.
Aditional replacements may be found by searching for RIK0084 (change the REV letter) or Carrier, Active (65A), 20 RF Top Plate.

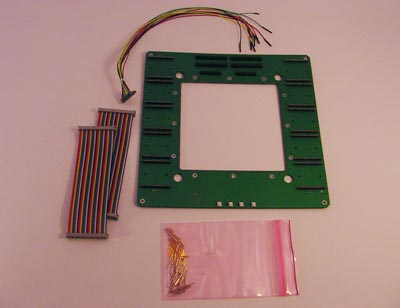

Carrier, Active (65A), 20 RF Top Plate
RI7100A, Active Modules for 20/30RF Top Plate
Part Number: RIK0084A
Replacement part for RIK0074A or RIK0074B. This Active Carrier Assembly, also referred to as "Smart Carrier" because modules can be controlled with "S####" commands versus using C-Bits. This RIK is intended to be used to replace a damaged carrier in any Fixture that uses the Active or Smart Carrier modules. It is the same carrier that comes with the RIK0074A or RIK0074B.
Not compatible with RIFL Fixture Modules.
Contact Support for assembly instructions.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | ANJ9ST5A | 1 | QUALITY ASSURANCE PROCESS - Search Product Docs by "Fixture Module Test" RIK P# for Instructions | Dcmnt | ||
| 2 | M6MJ8T1A | 45 | RECEPTACLE,POGO PIN (DUT Pogo) | PcbCnnct | ||
| 3 | M6MJ8Y1A | 45 | PROBE,POGO PIN (DUT Pogo) | PcbCnnct | ||
| 4 | M8UKXC2A | 2 | Cable Assy Ribbon 40cond 6" | Rbbn | ||
| 5 | MEJFZB4E | 1 | VI harness 16", 10 pin, active* | CblMsc | ||
| 6 | Y00065A1 | 1 | Super Fixture Carrier, Active* | PcbAssy |
