Matrix Carrier Extra, RIFL (B7A), 5 Modules + Cable

5 RIFL Modules, requires RIK0175A

Part Number: RIK0236A

In Stock: 0

Estimated Restocking Time: Limited Availability: 12+ weeks

DO NOT use this for new Designs.

Suggested Replacement: n/a

NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

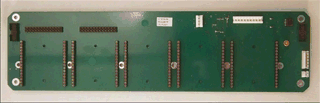

Includes 1x5 Carrier board and extension cable. Only for use with RIK0175B (RIFL B7A 1x5). CBits header on this 'slave' board are NOT active.

Active Carrier in use with (modified) Basic Matrix Top Plate where the square carrier does not fit. Requires "Tall" side plates, unless used in soft-dock applications. NO Handler docking allowed because spring loaded sides could damage carrier board when side plates are compressed.

ATTENTION: Matrix Top plate can NOT be opened (clam shell) with side plates in place!

Modifications include 2 screw holes for mounting plate that Carrier is mounted too.

Related Documents:

User account required Create new account
Diagram with Pin descriptions. (note: for slave, connect slave IN to the Slave OUT of the RIK0175B (RIFL 87A 1x5)

CBits header on this 'slave' board are NOT active.


Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1GB3H992A1Cable Assy Ribbon 10cond 16inRbbn
2M6J2JS1A4SCREW, SEMS, 4-40 X 1/4" SSHrdwr
3MH3FNW1A2SCREW, FLAT PHIL, 4-40 X 5/16", 100° SS, w/patchHrdwr
5Y000B7A21Slave Carrier Matrix 1x5 Module*PcbAssy
