Fixture Side Plates, Cassini 16 Matrix, Large Quad

Large Quad Site Top Plates (Intest)

Part Number: RIK0164A

In Stock: 0

Estimated Restocking Time: 2 - 4 weeks

$800
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

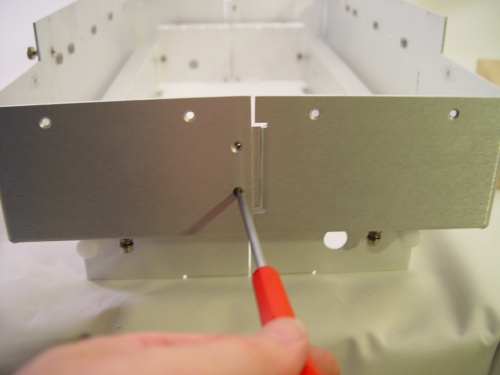

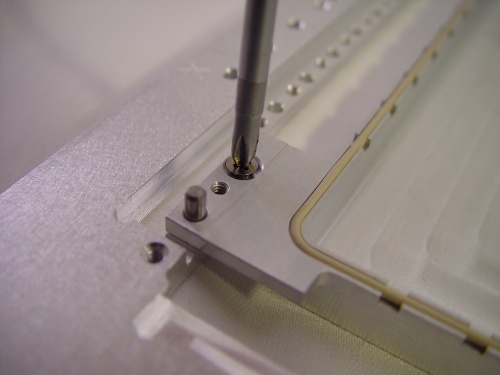

1st Image: Side Metals

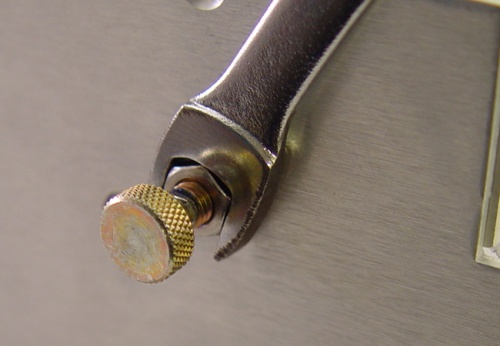

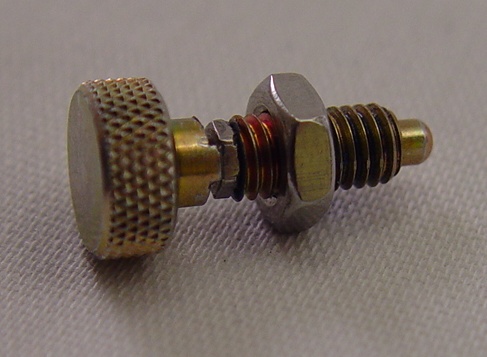

2nd Image: Hardware

Site plates suitable for the LARGE QUAD SITE top plate, compatible with Intest docking solutions.

RIKDesciptionKit Type
Product Catalog
152AMatrix Fixture, Large Quad Fixture KitFixture Side Plates

Carrier should be Product CatalogRIK0175A Active Carrier, 1x5 slot, Cassini, Matrix RIFL w/ Harness

Fixture is .25" taller to accommodate carrier that is mounted 90deg under Top Plate.

Related Documents:

User account required Create new account
Topic
Product Docs
Test Fixtures - Top Plate Assembly and Resources
Product Docs
Fixture Assembly Steps - Cassini (RIK0096A)

MN46MV6A.pdfMN46MV6A.pdf

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1S2M673YF1B4SCREW, PAN HEAD, 10-32 X 3/8", SS, w/patchHrdwr
2CM6JGN21A4WASHER, LOCK, #10 INTERNAL TOOTHHrdwr
3HM6JGUB1A1Nut, 4-40, SS, KEPSHrdwr
4JMAHYV31A1WASHER, LOCK, #8 SPLIT, SSHrdwr
5S4MFS3631A1SCREW FLAT PHIL 4-40 X 7/16" SS 100°Hrdwr
6EMGR86B1A4sandwich mount neoprene DIA5/8 L1/2 F-F 8-32MchCmp
7FMGR86C1A8Spring .3 OD 75L .035 WIREMchCmp
8S5MGR8721A4SCREW, BUTTON HEAD, 8-32x1/4", SSHrdwr

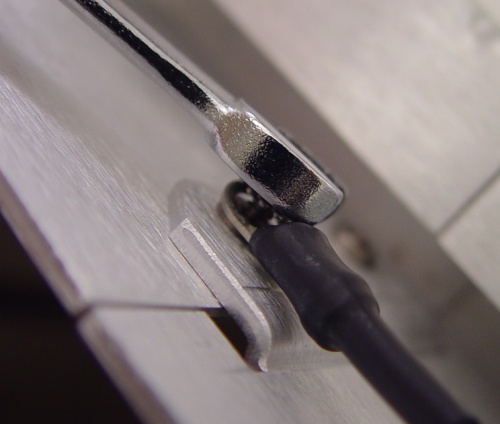

9IMH272Y1E1Ground Wire 5" (18AWG)*CblMsc
10S3MH3FNL1A20SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr
11S6MJKN071A4shoulder screw 8-32 3/16DIA 1.25L SS socket headHrdwr
12KMJNFNC2A1knob retract fixture top*MscAssy
13GMKJ4HR1A4Nyliner 3/16 shaft plate thickness .315MchCmp
14MLWWR71A1Box, Brown, 24x12x12Sppls

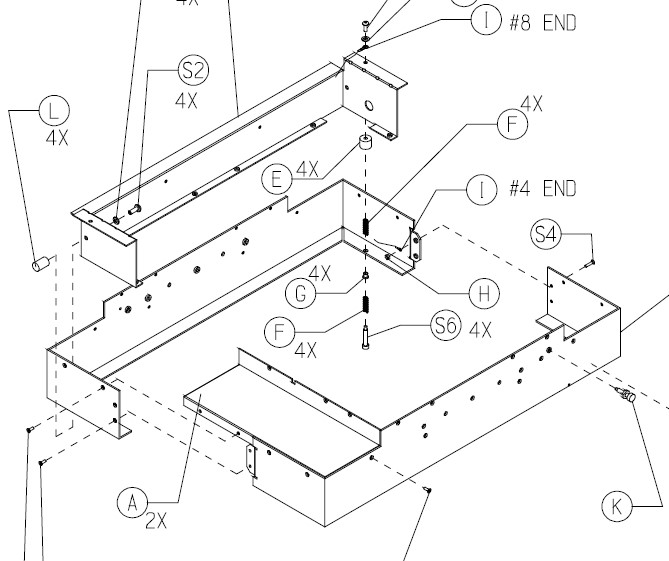

15MN46MV6A1ASSY drawing for RIK0164ADcmnt
16BW1MFEPEC2LOWER, COVER CASSINI16 FIX*MchFb
17DW1MFEYPC2UPPER CASSINI 16 QUAD 13.5X10.5MchFb

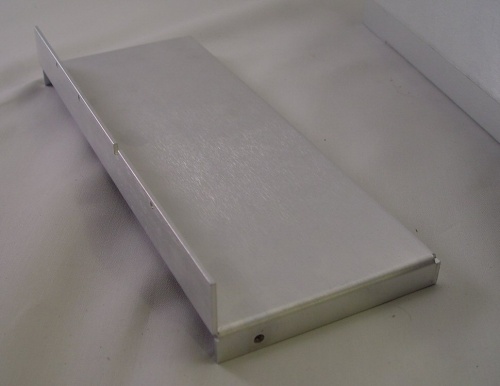

18AW1MFEYRB2FILLER CASSINI 16 QUAD 13.5X10.5MchFb
19LW1MFFHAB4pin fixture stop DIA .50 X .80L 10-32MchFb
