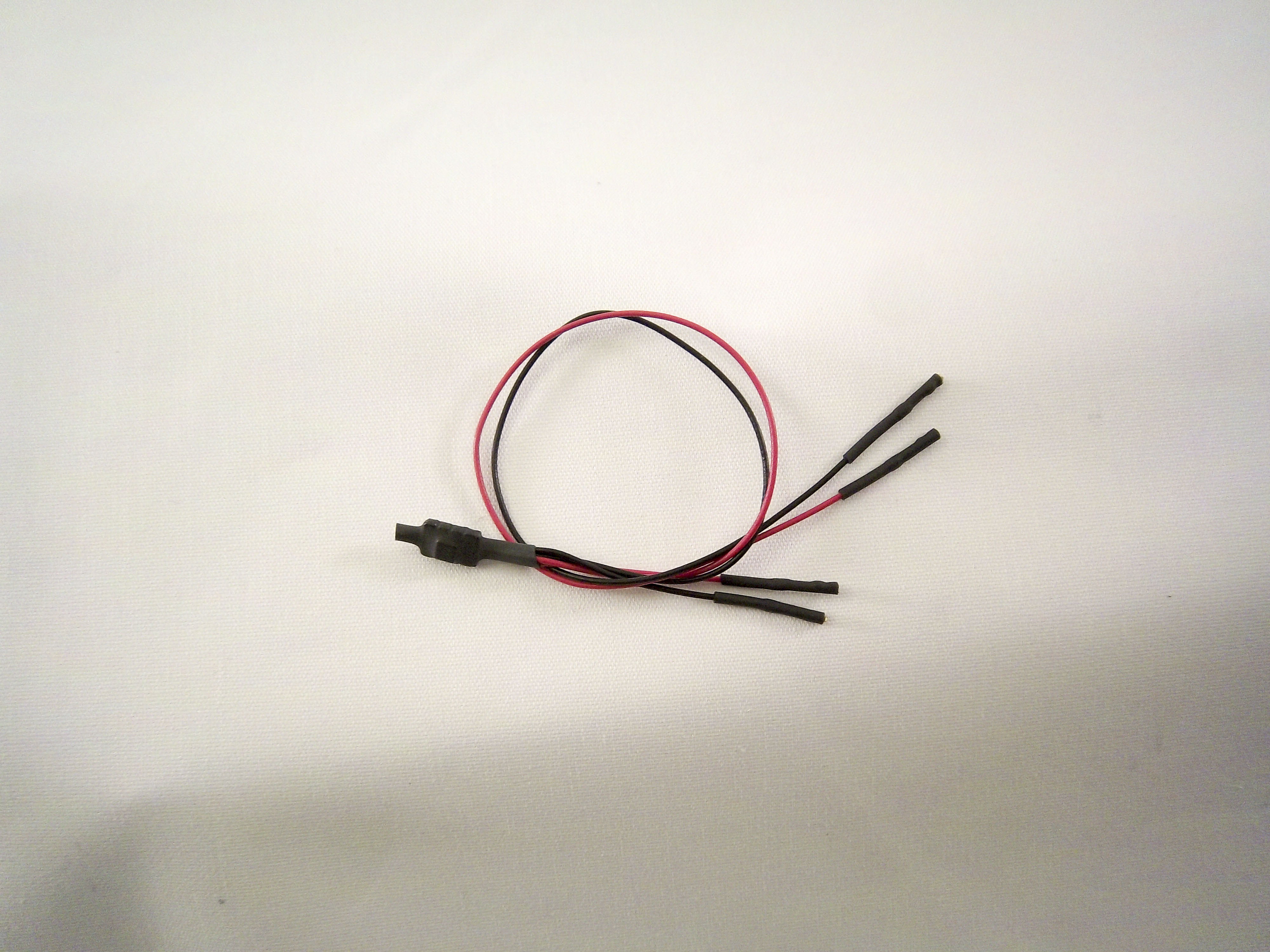

Fixture SN Chip (ESN) with 4-wire Harness (2 ea)
DUT Interface Boards & Fixtures without Carriers
Part Number: RIK0199A
In Stock: 0
Estimated Restocking Time: 1-2 weeks

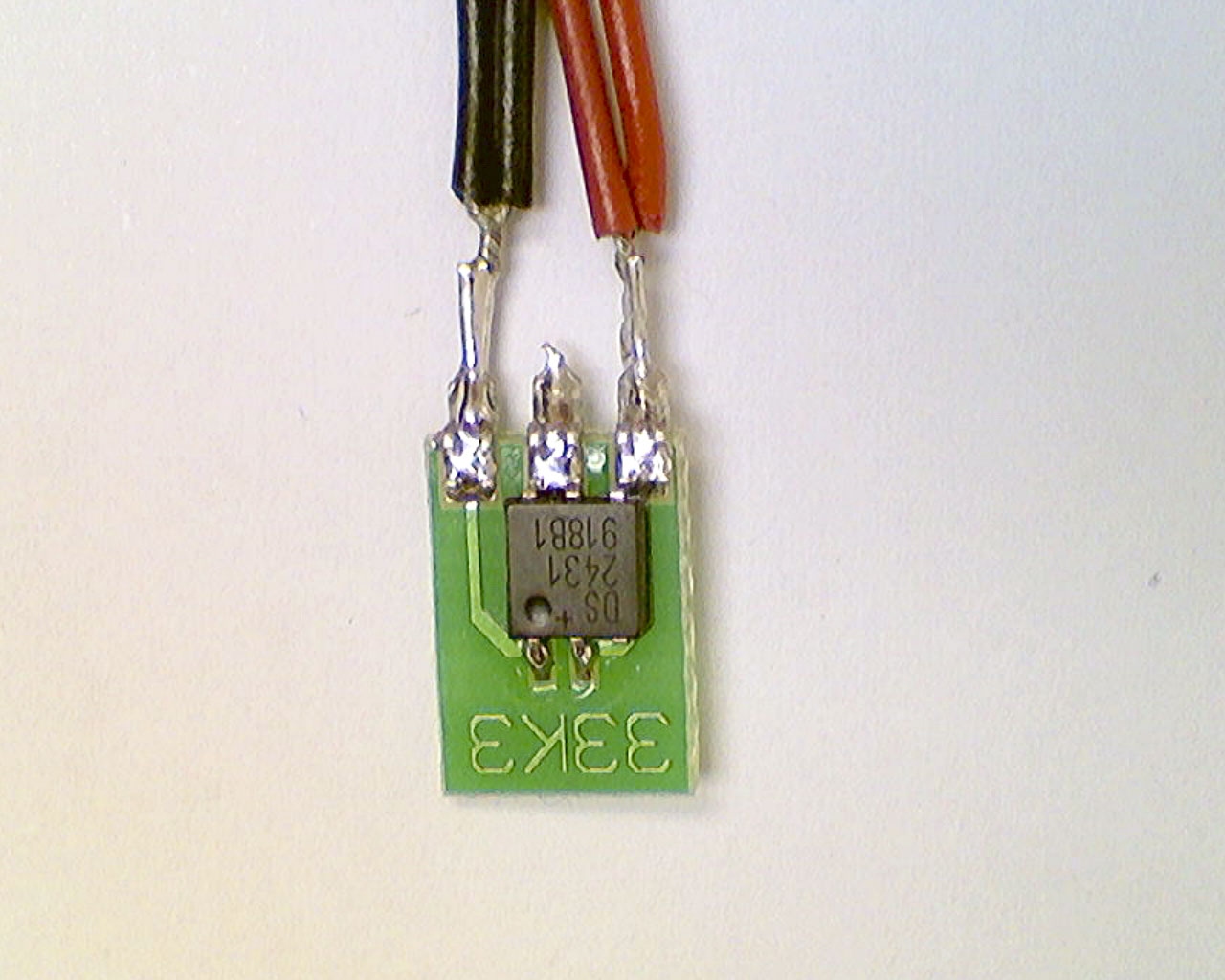

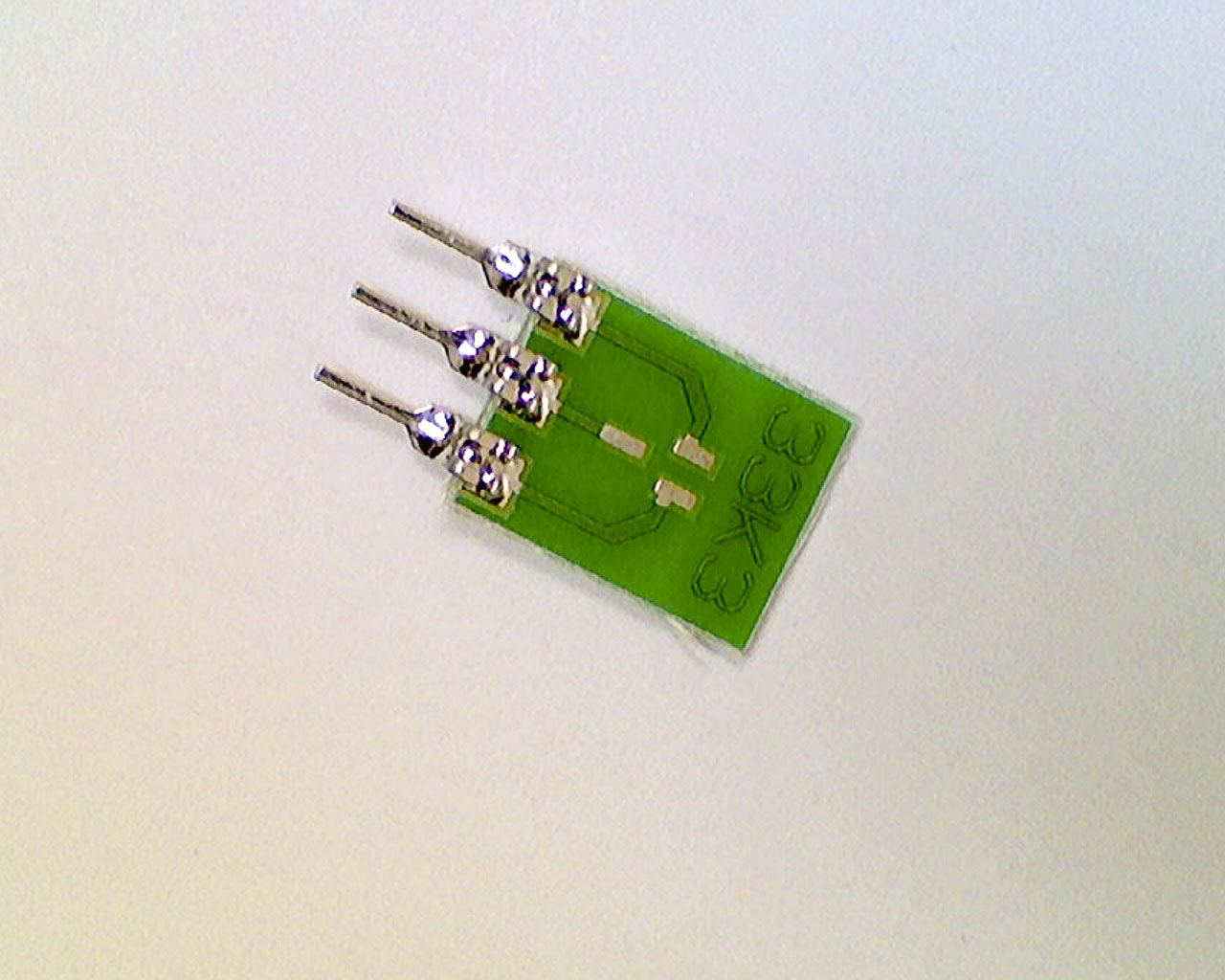

Serial Number chip provides a unique identifier to Fixtures or DUT Interface Boards (DIBs) to allow calibration data to be saved and recovered for these items.
Attach the Female jumper cables to S/N Pins ( H1 and H10) on the FIX Block RIK0166B.
Related Documents:
User account required Create new account | Fixture Assembly Steps - Using ID or Serial Number (ESN) Chip with Fixture or DIB |
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MJUMNF4A | 2 | Matrix Fixture, Serial Number (SN) Harness, 4 wire* | CblMsc |
