6 In Stock

SN Chip Wire Length Adjustable 4 Wire

Fixture and DIB SN for softdock

Part Number: RIK0199B

Estimated Restocking Time: 1-2 weeks

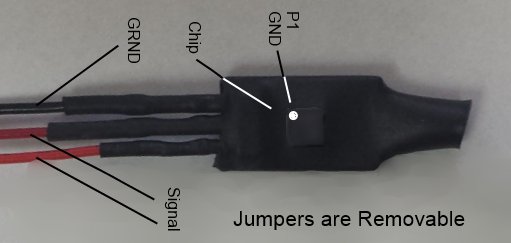

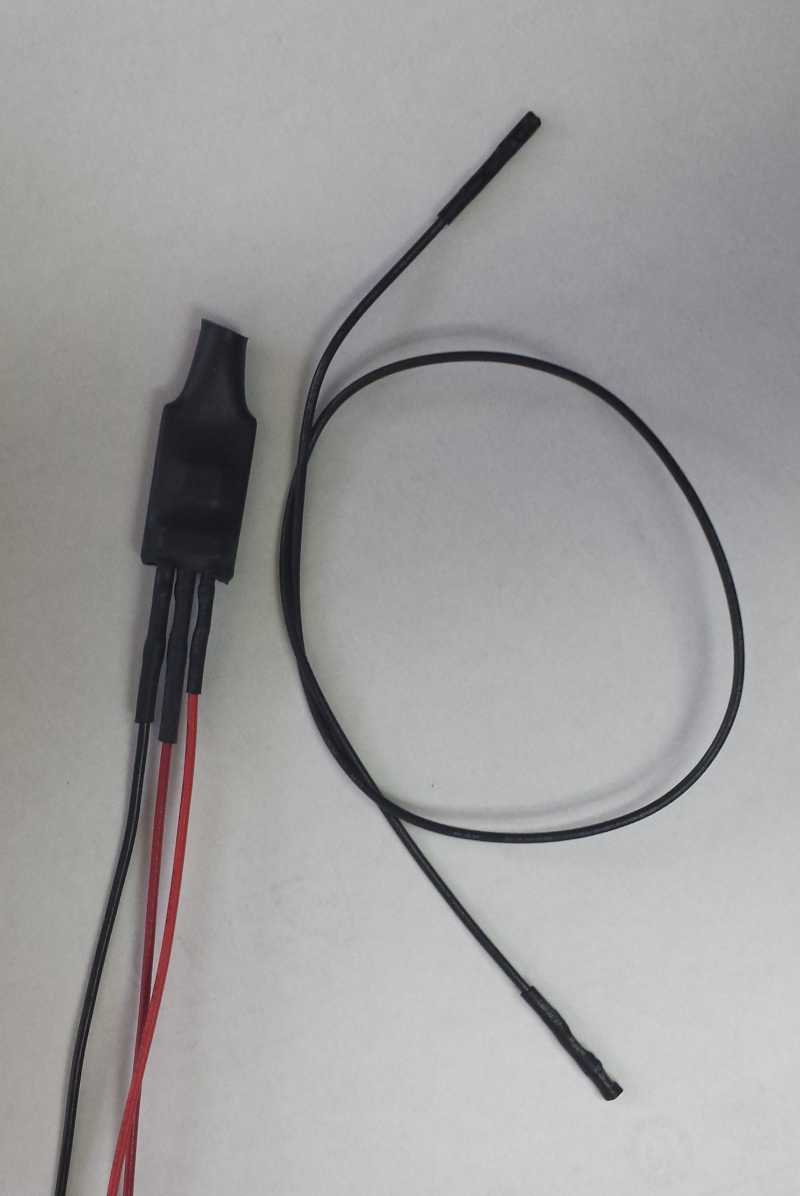

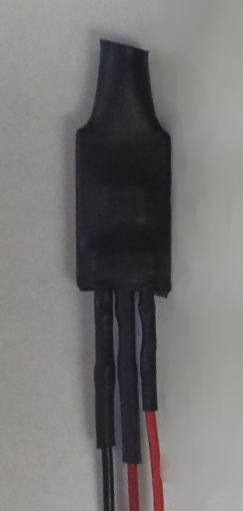

Fixture SN Harness with removable jumpers. Ground is Black and Red is Signal. Pins two and three are common to each other.

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1MGCVSP1A2Jumper Wire Red 12" 28AWGCblMsc
2MGGN451A2Jumper Wire Black 12" 28AWGCblMsc
3MJUMNF4B2Matrix Fixture, Serial Number (SN) Harness, 4 wire*CblMsc
BOM Refreshed:05/11/2020 06:24 PM
