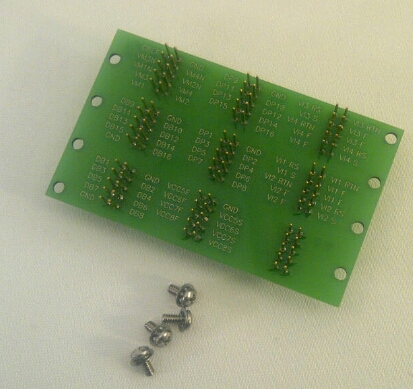

Soft Dock Resource Plate, DC Pogo Board
Soft Dock, DC Connector for Engineering
Part Number: RIK0223A
In Stock: 0
Estimated Restocking Time: 4-6 weeks
NOTE:
Thread-locking fluid (RIK0204A) should be applied to screws.
Enables simple DC connections from labeled pins to an Engineering board or 2x5 ribbon cable connection to a Prober.
A single "double width" space (equivalent to 4 inserts) on the Matrix Top Plate (RIK0214A) or in the Benchtop Side/Rear Plates (RIK0234A/RIK0235A) is required.
Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
---|---|---|---|---|---|---|
1 | GHA1NR2A | 8 | Cable Assy Ribbon 10c 14in | Rbbn | ||
2 | M6J2JS1A | 4 | SCREW, SEMS, 4-40 X 1/4" SS | Hrdwr | ||
3 | Y0008YA1 | 1 | Eng Fixture Adapter, 8546* | PcbAssy |
