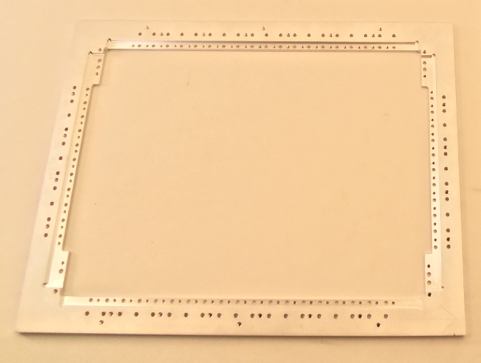

Matrix Fixture, Quad Top Plate (Alpha+Numeric)

Cassini Quad Site, Intest Compatible

Part Number: RIK0277A

In Stock: 0

Estimated Restocking Time: Limited Availability: 12+ weeks

$1,020
DO NOT use this for new Designs.

Suggested Replacement: RIK0285A

Matrix Fixture, Large DIB Fixture Top Plate, Compatible with Intest Designs



Alpha+Numeric Insert location mapping. New designs should use Numeric ONLY top plate ( RIK0285A ).

This item will have longer lead times and will not be stocked.

Supports Up to 60 Inserts

10.5x13.5"


Related Parts:
RIKDescriptionKit Type
Product Catalog
277AMatrix Fixture, Quad Top PlateFixture Top Plates
Product Catalog
278AMatrix Fixture, Quad Pedestal SupportFixture DIB Layer
Product Catalog
279AMatrix Fixture, Quad DIB ClampFixture DIB Layer

MMWLSE6A.pdfMMWLSE6A.pdf

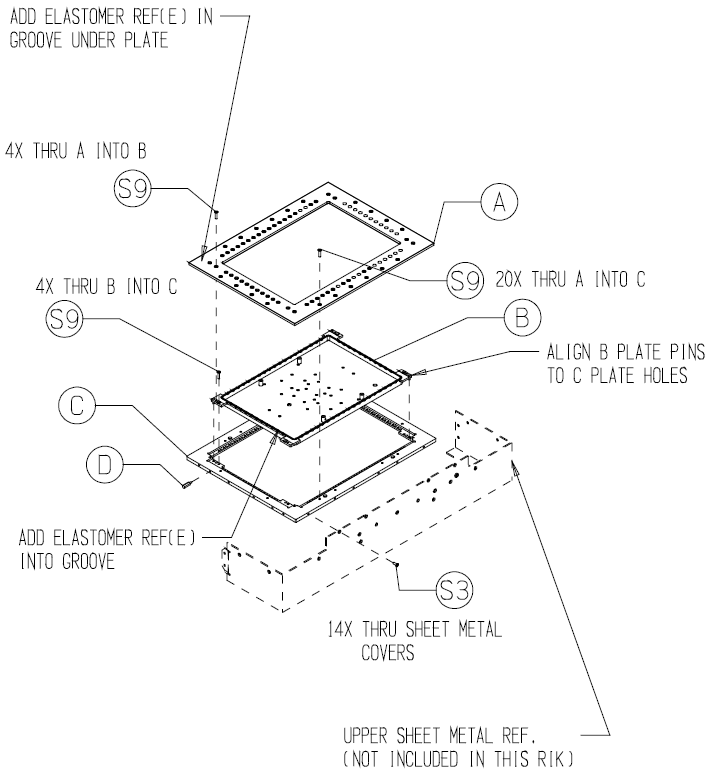

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1MGZ88J1A1Standoff, 4-40 x 3/8, M/F 3/16, Hex, SSHrdwr
2MH3FNL1A14SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr
3W1MFEYHE1ALPHANUMERIC TOP FIX INSERT QUAD 13.5X10.5MchFb
