LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 01/05/2016. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0267B

Expiration Reason: Placeholder. No rev A was made/shipped.

Aditional replacements may be found by searching for RIK0267 (change the REV letter) or Parallel Handler POD + 15' RIFL Cable.

Out of Stock: Ships 12+ weeks (limited) ARO New

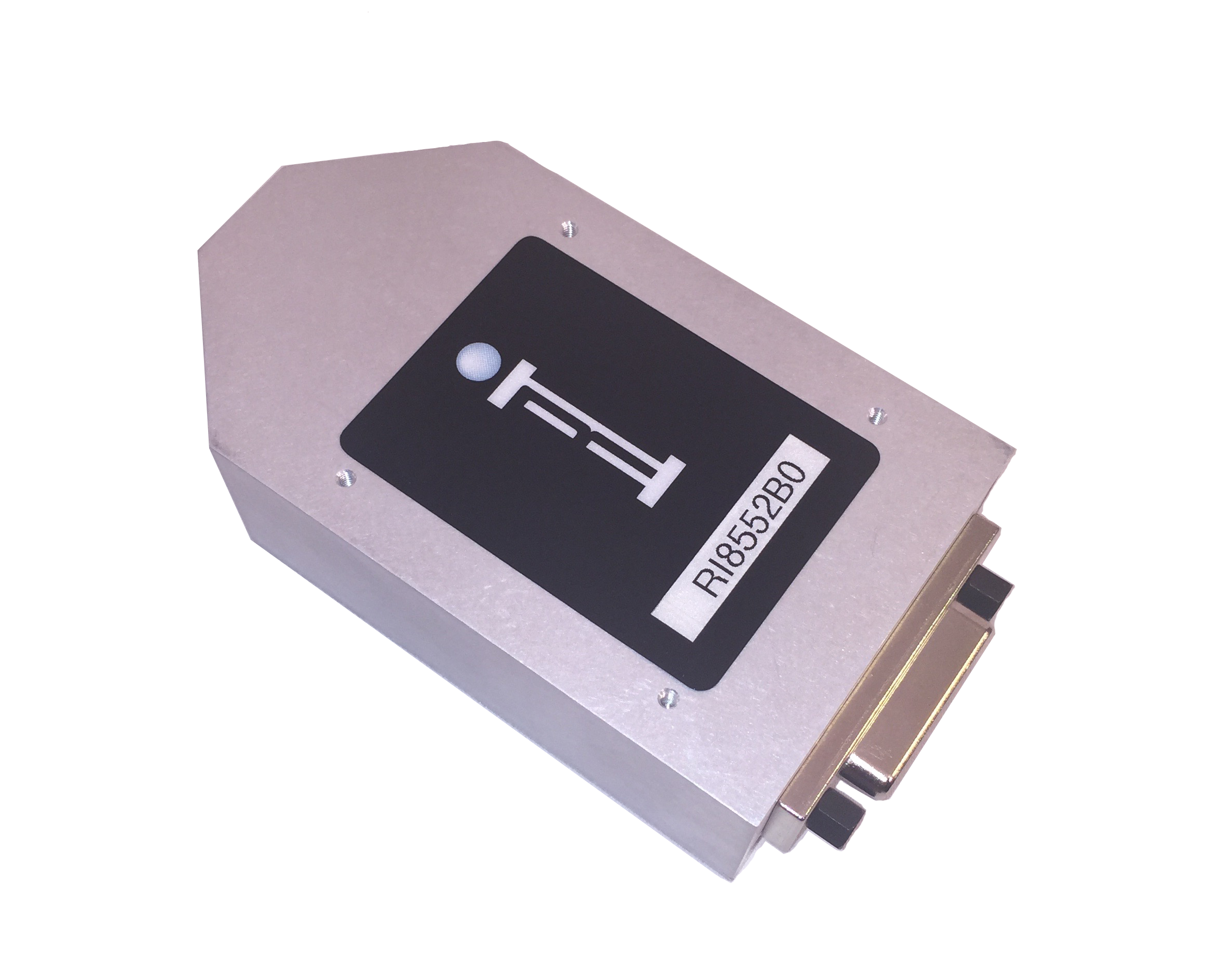

Parallel Handler POD + 15' RIFL Cable

Cassini to Parallel Handler, (Isolated)

Part Number: RIK0267A

In Stock: 0

Estimated Restocking Time: 12+ weeks (limited)

$2,727

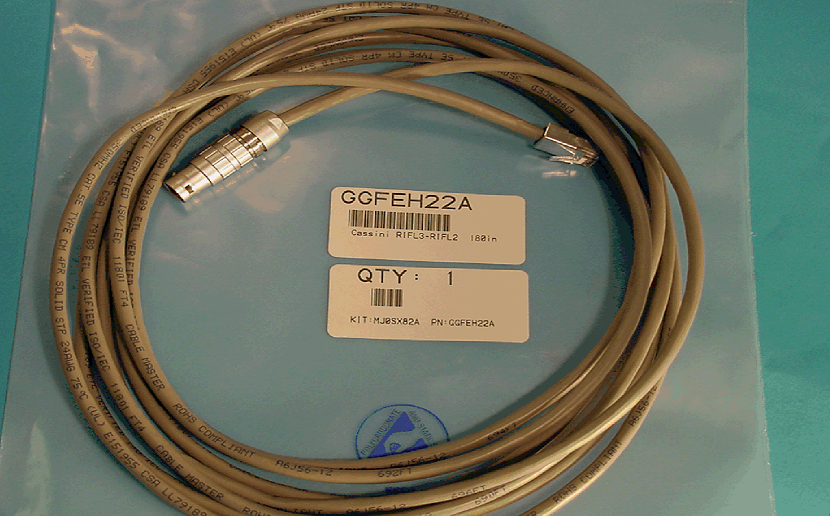

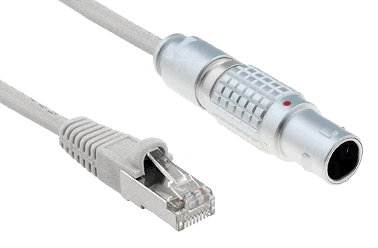

Allows Parallel communications with Handler (drivers may be necessary). Includes RIFL 2 to RIFL 3 cable (RI Part # GGFEH22B) but NOT Parallel (D-Sub) cable (supplied by customer or MFSHLX1A).

Serial or Parallel generally have the most reliable and fastest interface to handlers versus GPIB and therefore recommended by RI over GPIB interface.

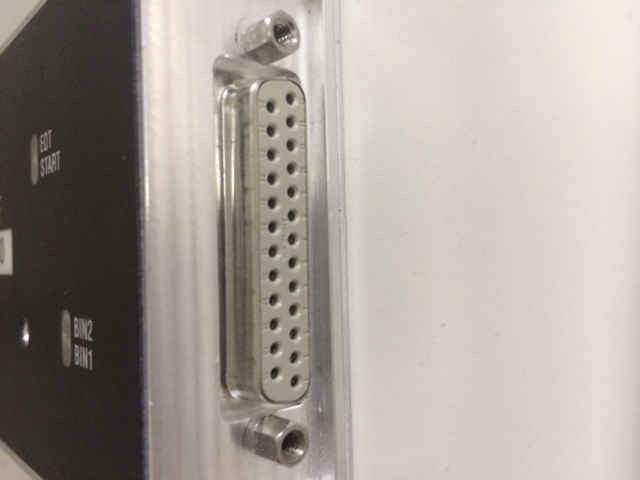

This interface type is the fastest (in reaction time) and preferred method for connecting to a Handler or Prober. The custom cable can be easily completed by adding resistors or bridging the correct pins. Depending on how the handler is configured, a 10K ohm resistor should be installed between each SOT (Start Of Test) pin and pin 13 (+5V for pull up) or pin 12 (ground for pull down).

Handler POD is configured at the factory based on customer provided Handler/Prober interface documentation.

Part #DescriptionApplications
Product Catalog
MFSHLX1AHandler Cable, 14' DSUB 25pin Pigtail w/ ConnectorCreate custom cable for Parallel Handler DSUB 25

Related Documents:

User account required Create new account
Product Docs
Cassini Handler Control Pod ConfigurationManufacturingHandler Pod,ProceduresToday

Other topics
SubjectTopic(s)CategoriesLast Modified
Product Docs
Site Preparation Guidelines for CASSINI 16 and SPYDERAdmin,SpecsSpecifications,Technical Articles & Information,Preparation,Footprint10/06
Product Docs
RI Operating Environment GuidelinesSpecsSpecifications,Technical Articles & Information02/03/2011
Product Docs
How to Configure Handler Pod (GPIB/Serial/Parallel)ManufacturingHandler Pod,ProceduresToday
Product Docs
Handler Control Pod ConfigurationManufacturingHandler,Pod,Procedures08/08/2006
Product Docs
Handler Control Pod Pinouts
Product Docs
Handler Pod Programming and Interface Example (MT9320)
Product Docs
Handler Configuration and Interface Cable - Rasco SO1000

Item Ref Part Number QTY Description Category Qty in Stock
1GGFEH22B1Cable RIFL3-RIFL2 180 in metal collet*CblMsc
2RI8517A01Handler Pod, MultiSite Parallel RI8517A0*RInstrmn
BOM Refreshed:08/18/2019 07:31 PM
