This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 01/06/2014. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RI8535B-40

Expiration Reason: No longer offering 20 pin version

Aditional replacements may be found by searching for RI8535B (change the REV letter) or 20 Pin FSPU Digital TIM.

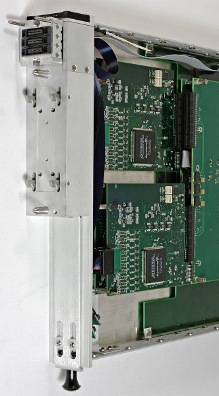

20 Pin FSPU Digital TIM

Multi-site digital testing

Part Number: RI8535B-20

2 each 3.4A/7V pulsed VI, Device Power Supplies,4 ea, 350ma 10v four quadrant Vis, 16 relay matrix ports, low current force and measure (1 na), 8 slow (2.5MHz) 10 v digital lines with SPI/I2C.

20 Pins: Half connector populated.

Related Documents:

User account required Create new account

Product Docs
Digital TIM or Fixture Digital Module Best Practices - How to Avoid Failure Interfacing Due To Wiring Ringing Effects

Product Docs
Cassini 120 Pin FSPU Digital TIM Product Description
