This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 01/24/2011. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0149A; RIK0130A

Expiration Reason: Separated into a Diag Interface Plate (Cal Fixture) and Cal Kit Instruments

Aditional replacements may be found by searching for RIK0098 (change the REV letter) or 8 TIM Cassini Calibration Kit.

Out of Stock: Ships Contact Factory ARO No New Designs

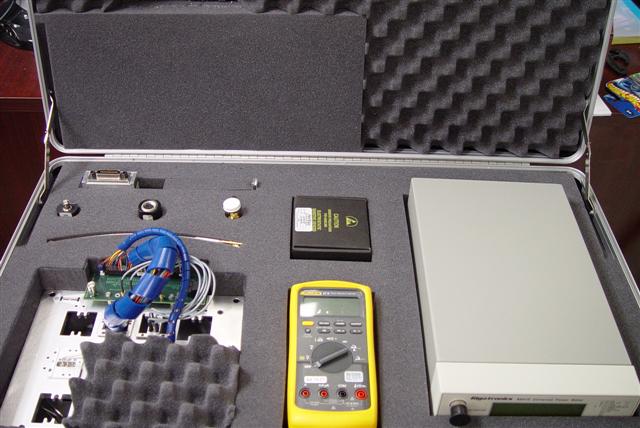

8 TIM Cassini Calibration Kit

Calibrate Large and Small Cassini Platform

Part Number: RIK0098A

In Stock: 0

Estimated Restocking Time: Contact Factory

DO NOT use this for new Designs.

Suggested Replacement: RIK0149A; RIK0130A

Power Meter and Sensor, Digital volt meter, S Parameter Standards., Noise standard., Cables, RF Adapters, RF Attenuators & Calibration Fixture. The devices are calibrated to NIST standards. Documentation maintained in Santa Clara.

RI recommended calibration intervals for Noise Source and Standards are every 2 years, Power Meter and Volt Meter every 1 year.

Item Ref Part Number QTY Description Category Qty in Stock
1GCBCRS2A1GPIB Cable .5m M-MCblMsc
2GGFEH22A1Cable, RIFL3-RIFL2, 180in*CblMsc
3GGGHA02E1DC Block, 14in., Cassini Fixture*CblMsc
8M6LPX11A2Vial W/Cap, 12mlMchCmp
9M6LPY61A1Cal Standards Kit SC5224 (Disc & standards)*RF
10M6LPZJ1A1NOISE SOURCE, .01-18 GHz W/Cert, Label, and Open Ended Due DateInstPr
11M7CJ222A1Gigatronics Power meter 8541C W/Cert, Label, Open Ended Due DateInstPr
12M7CJ2B2A1Gigatronics Power Sensor 80301A W/Cert, Label, and Open Ended Due DateInstPr
13M8YYJ51A1open end wrench, 1/4"TlsAndEq
14M8YYJB1A2open end wrench 5/16"TlsAndEq
15MBH0VH1B5Adapter,#12F-SMAF CustomCoax
16MCJK5K1A6SCREW, 100° FLAT PHIL, 6-32 X 5/16", SS, BLKHrdwr
17METBMH1A1USB I Stick 2.0 64MBCmptrs
18MFCFXJ1A1Adapter SMAM-NF (Tensolite)Coax
19MFHLFU1A1Case, Cal Kit, W/Foam and RI LogoMchCmp
20MFN6ZK1B1DMM, Fluke 287v w/NIST Cal cert & Open Due DateInstPr
21MFPF9N1A1Floppy Disk, 3.5" Cal Kit DefinitionRInstrmn
22MHR97N3A1Adapter SMAF-SMAM SWEPT 90°Coax
23MHRFH23A1open end wrench 7/32"TlsAndEq
24MHRFH33A1open end wrench 3/8"TlsAndEq
25MHRJPU3A1Ground Wire 12"*CblMsc
26MM9NAK6A1Case, Transit, Cassini Cal KitMchCmp
27RI8502A01RI8502A RIFL-GPIB POD Translator*RInstrmn
28RIK0102A1RF Cable Kit (5.5" #12F pkz-#12F pkz , 2 cables 1 tall 1 short)*CstmrKt
29RIK0103A2RF Block Assembly 8 RF*CstmrKt
32W1MFECGA2Actuator Fixture Switch, Cassini*MchFb
33W1MFEJWA2Coax,Confrm,085,#12F special-#12F special,8"*Coax
34W1MFEJXA2Coax,Confrm,085,#12F special-SMAM,8"*Coax
BOM Refreshed:05/11/2020 06:22 PM
