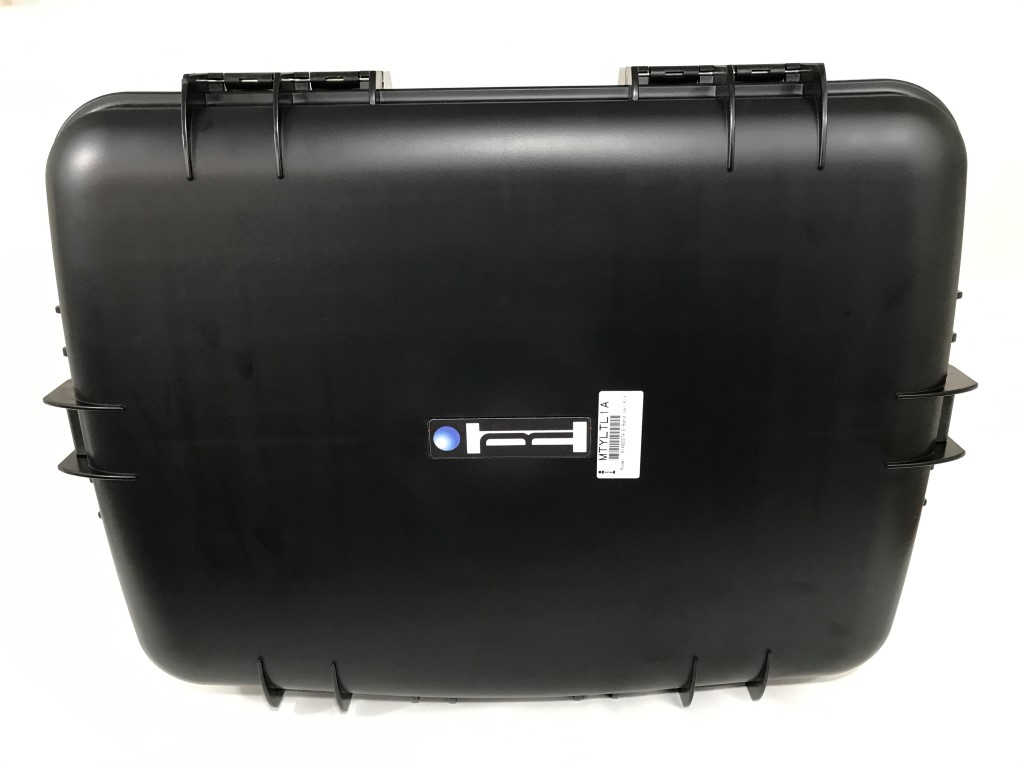

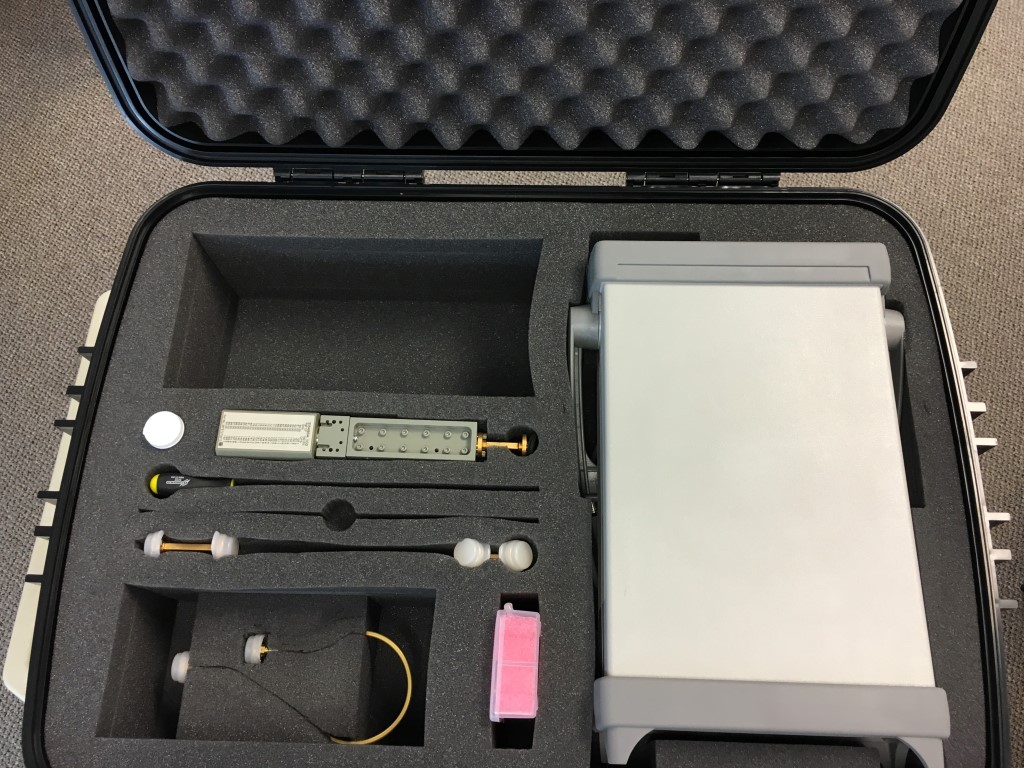

The Calibration Kit (Cal Kit) is used while calibrating an RI test system or Fixture for frequencies up to 50 GHz. It includes a Power Meter and Sensor, OSL Standards, adapters and cables.

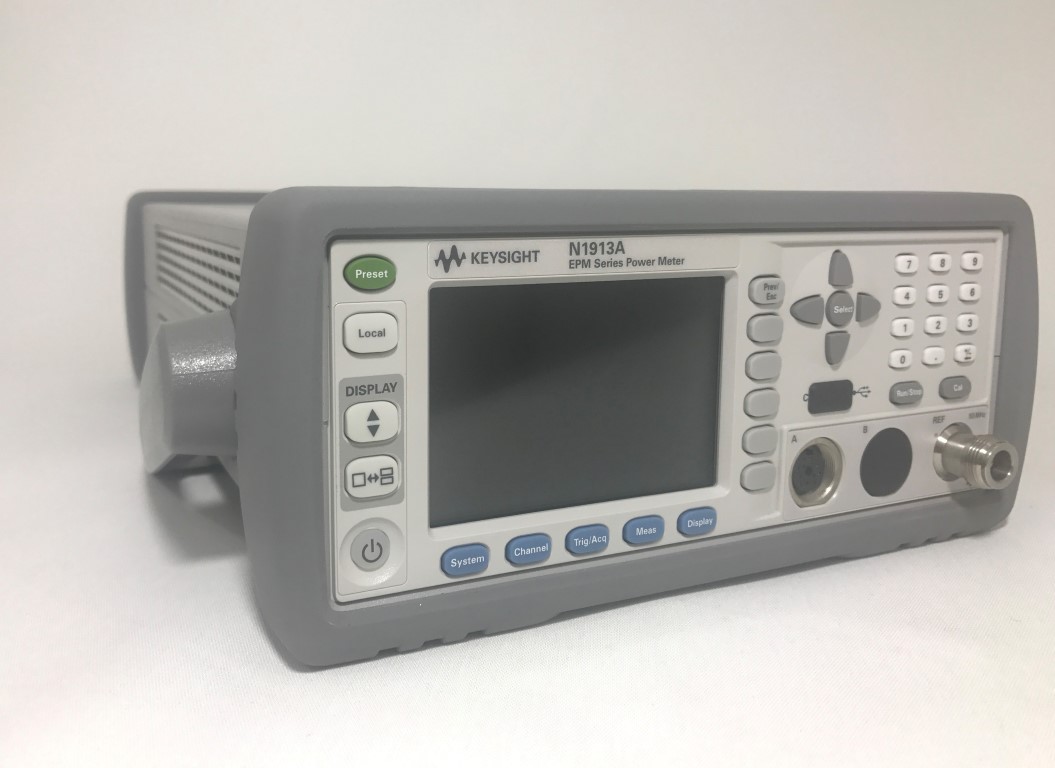

Power Meter: Keysight N1913A
Power Sensor: Keysight N8487A
OSL Calkit: Maury : 3 pieces Open, Short and Term
The diagnostic interface kit is sold separately and IS REQUIRED for Calibration because it providing the TIM Cal Blocks and required RF connections.
RI usually only issues a NIST traceable calibration certificate only when a preventive maintenance and calibration (PMC) is performed. A calibration is performed when a major physical instrument is repaired or replaced, but a certificate is not issued.
|023A||RI7100A Calibration Kit|
|130A||Cassini 8-Slot Interface Kit|
|149A||Calibration Standards Kit, Cassini 18 GHz|
|150A||Calibration Standards Kit, Cassini 40 GHz|
|151A||Cassini 16-Slot Interface Kit|
Each RI Cal Kit requires annual calibrations for most instruments. If available, you can use a calibration lab at your facility or one in your local area. If not, some of the components may have to be sent to the manufacturer for calibration. Below is a listing of the Cal Kit components, Vendor Addresses and Web Sites.
Cal Kit Instrument Vendor Information: Please refer to the website for a vendor representative in your area.
Keysight Calibration Services
1400 Fountaingrove Parkway
Santa Rosa, CA 95403-1738
+1 800 829-4444 Press #, then 2
