V-Band, WR-15 50-75 GHz, Cal Kit Add-On

Extends 20/40 Ghz Cal Kit to 50-75GHz range

Part Number: RIK0311A

In Stock: 0

Estimated Restocking Time: Contact Factory

$43,660

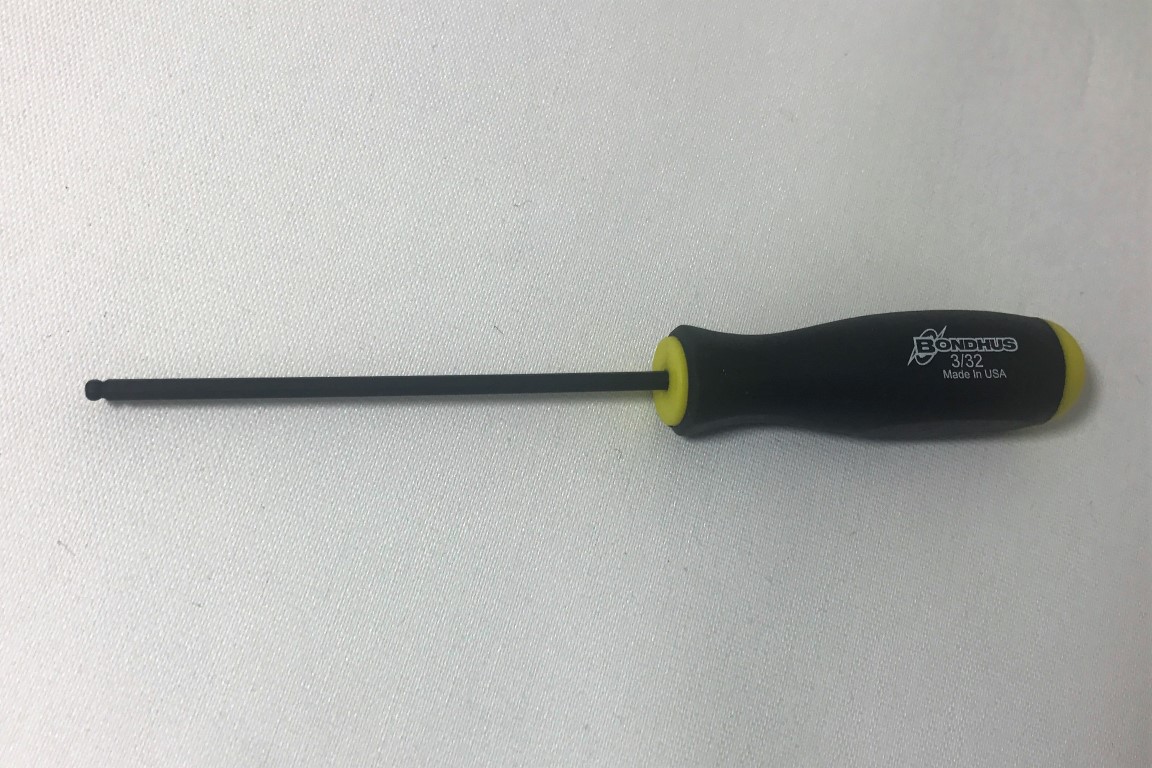

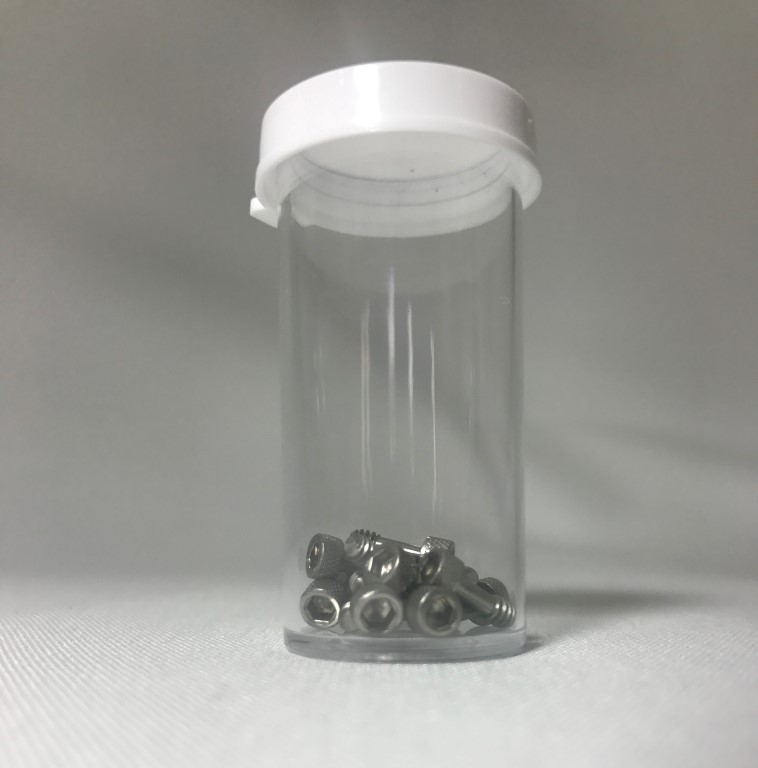

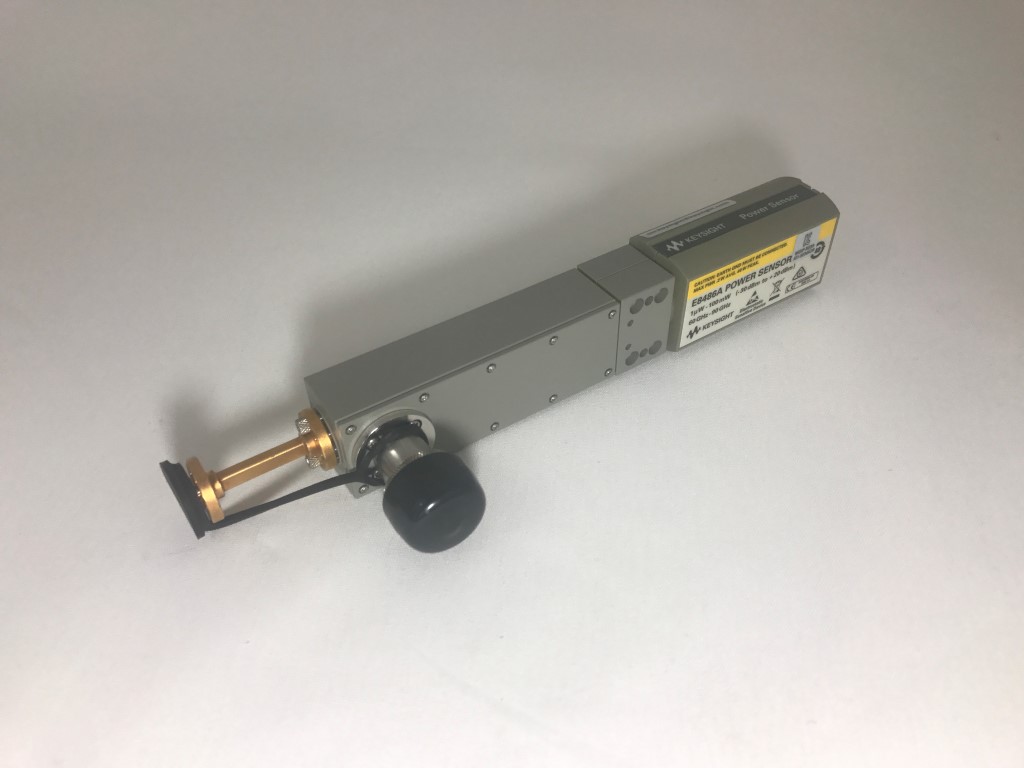

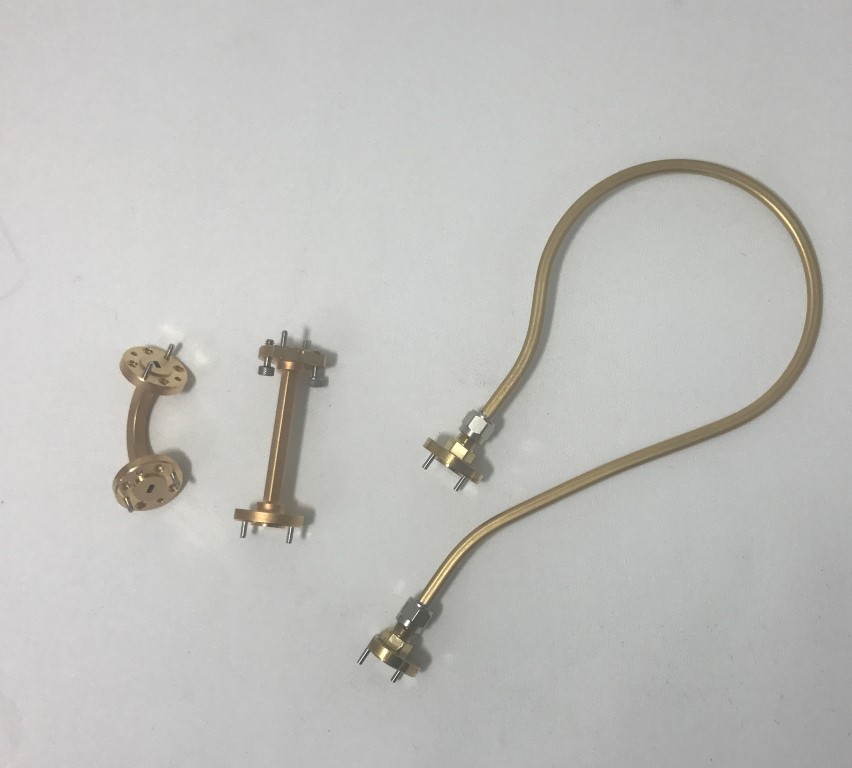

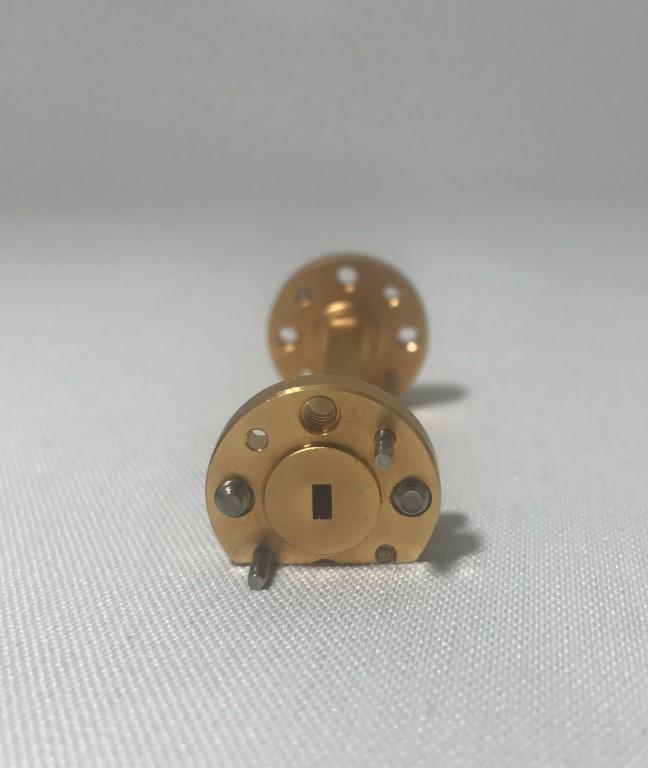

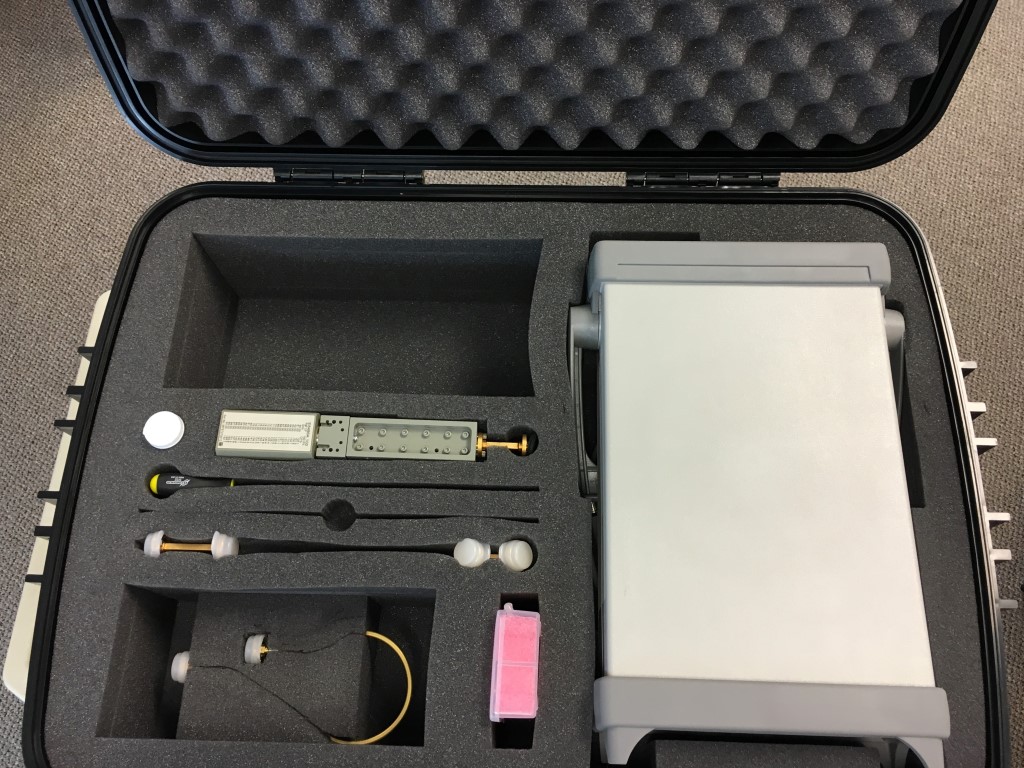

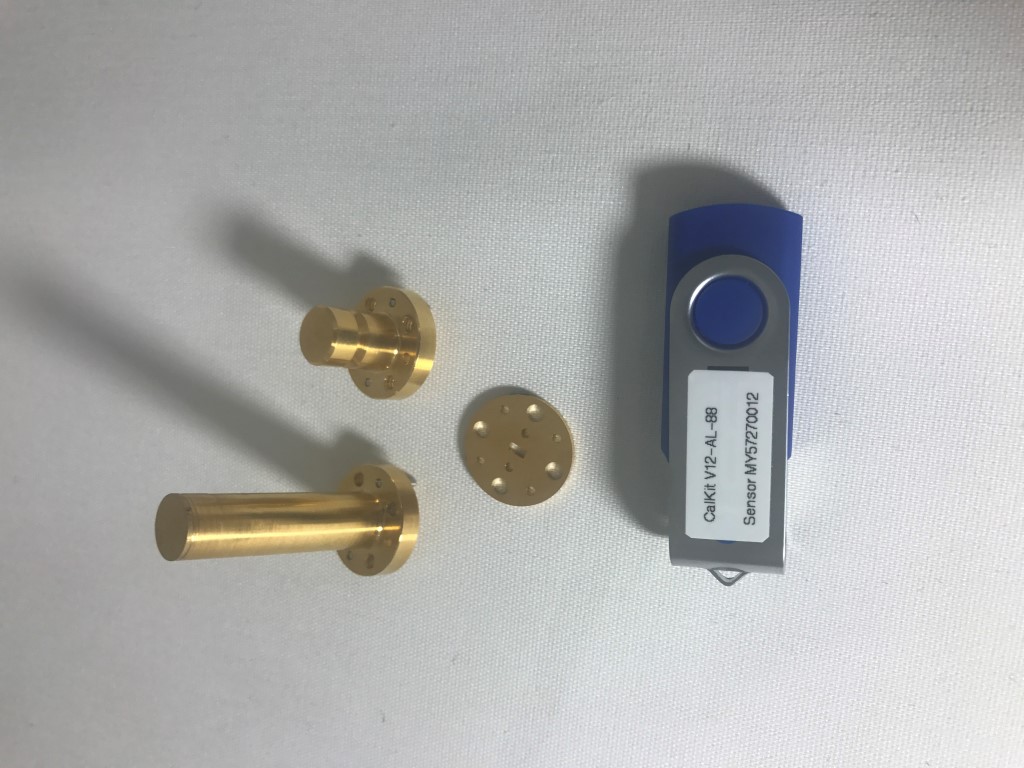

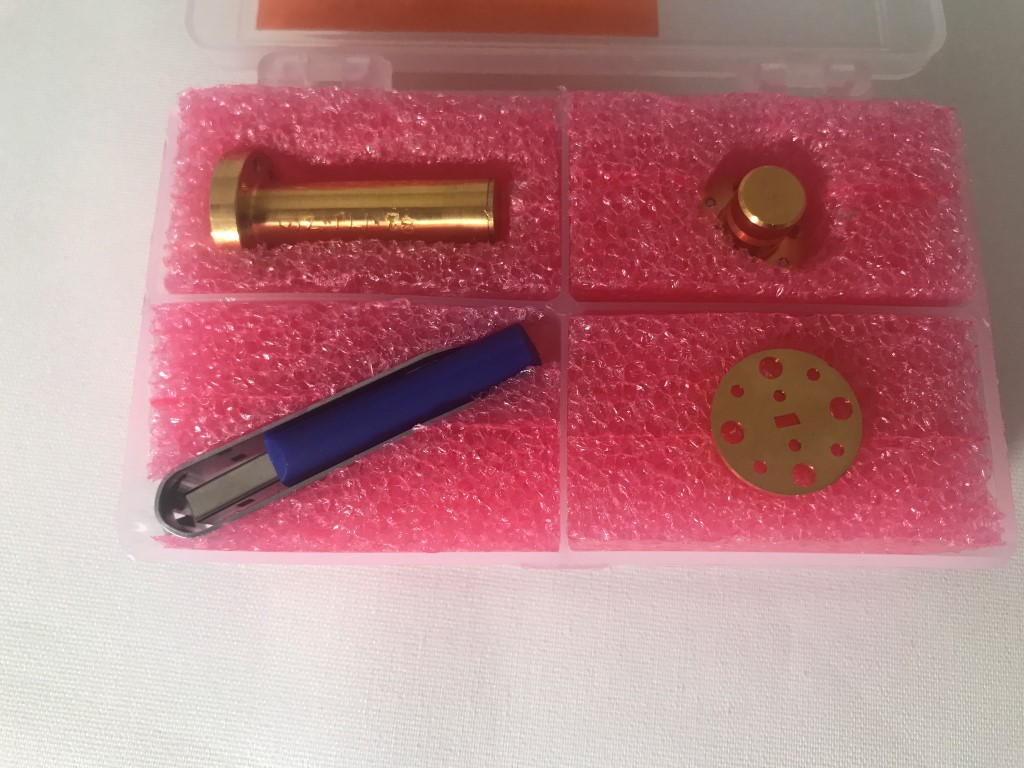

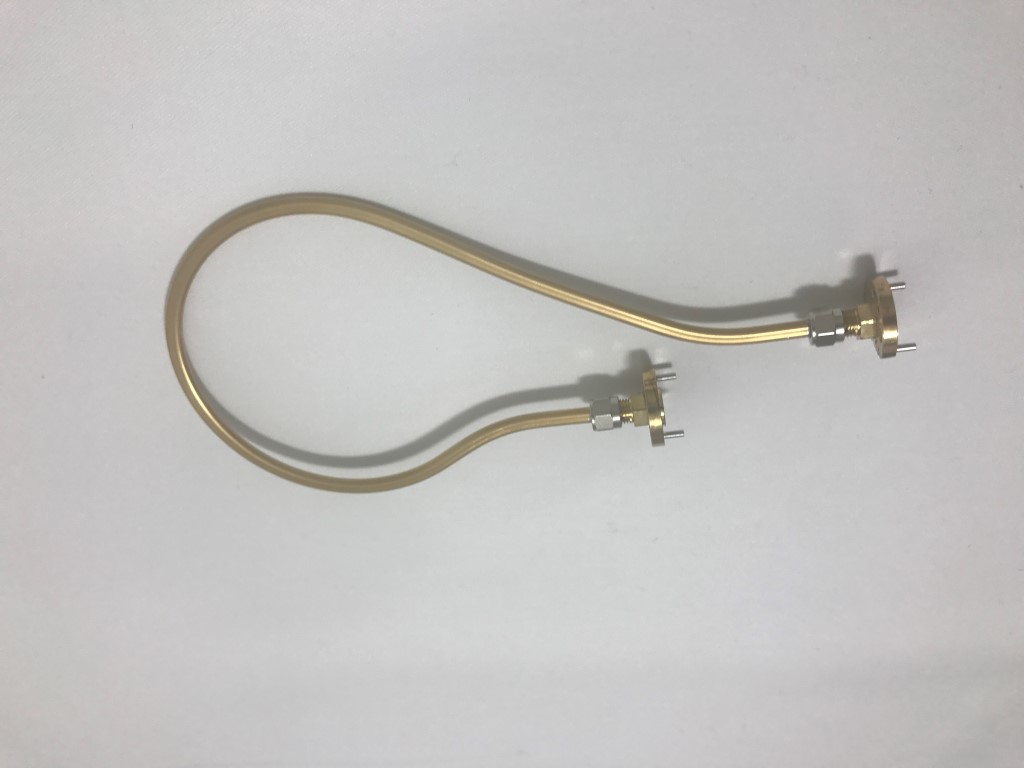

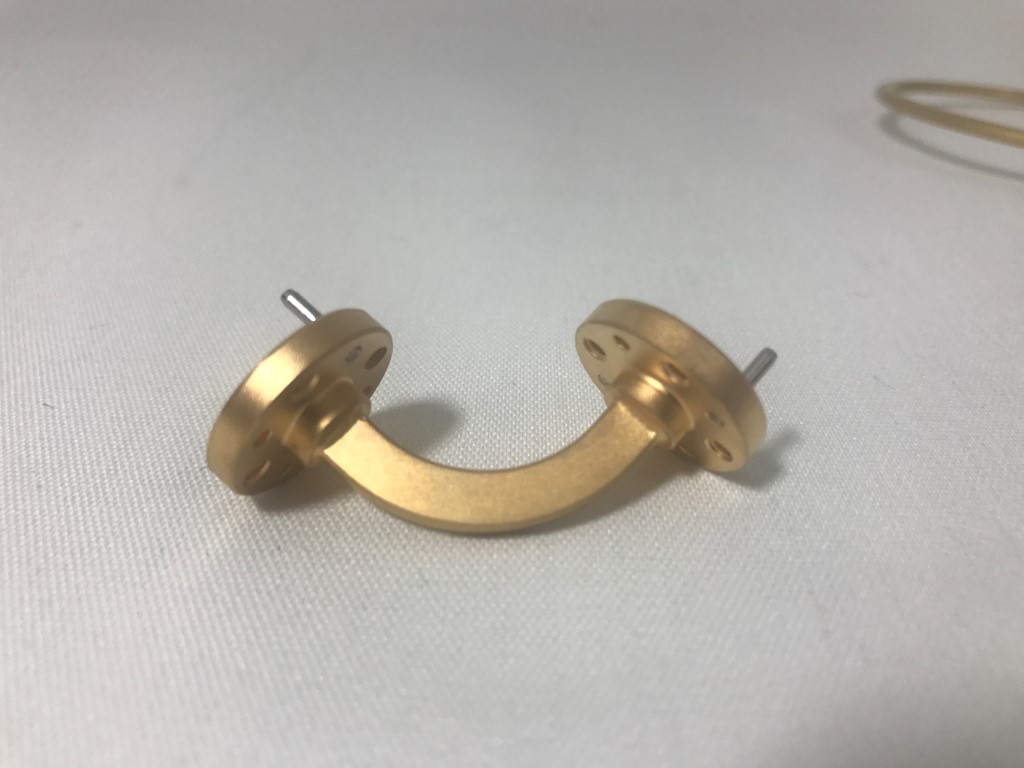

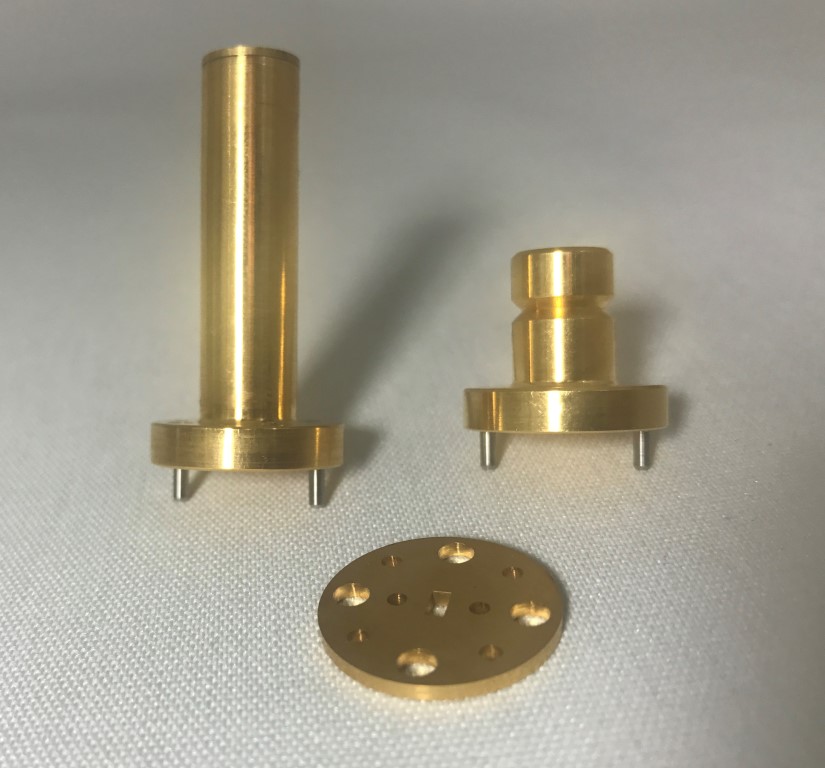

The Calibration Kit (Cal Kit) is used while calibrating an RI test system or Fixture to frequencies from V-Band 50-75 GHz. It includes a Power Meter and Sensor, WR-15 Waveguide Standards, Screws and Driver.

The diagnostic interface kit is sold separately and IS REQUIRED for Calibration because it providing the TIM Cal Blocks and required RF connections.

The Calibration kit needs to be calibrated annually to NIST standards. RI offers Cal Kit service as RIK0082A (for 20 Ghz cal kits).



RI usually only issues a NIST traceable calibration certificate only when a preventive maintenance and calibration (PMC) is performed. A calibration is performed when a major physical instrument is repaired or replaced, but a certificate is not issued.

RIKDescription
Product Catalog
023ARI7100A Calibration Kit
Product Catalog
130ACassini 8-Slot Interface Kit
Product Catalog
149ACalibration Standards Kit, Cassini 18 GHz
Product Catalog
150ACalibration Standards Kit, Cassini 40 GHz
Product Catalog
151ACassini 16-Slot Interface Kit

Each RI Cal Kit requires annual calibrations for most instruments. If available, you can use a calibration lab at your facility or one in your local area. If not, some of the components may have to be sent to the manufacturer for calibration. Below is a listing of the Cal Kit components, Vendor Addresses and Web Sites.

Cal Kit Vendor Information: Please refer to the website for a vendor representative in your area.

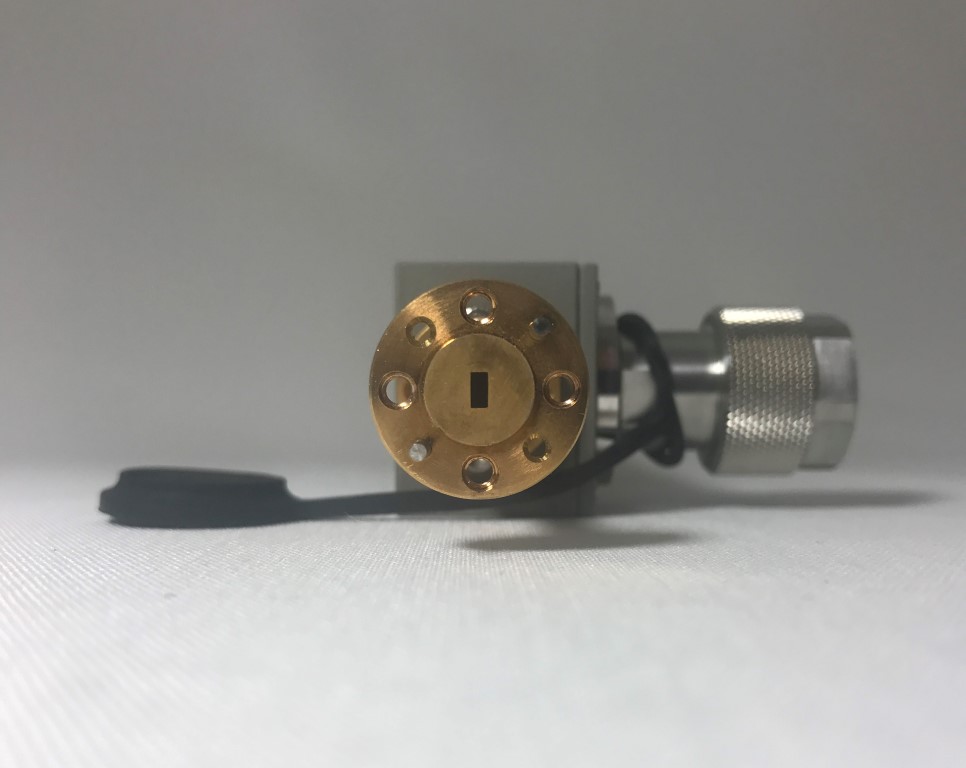

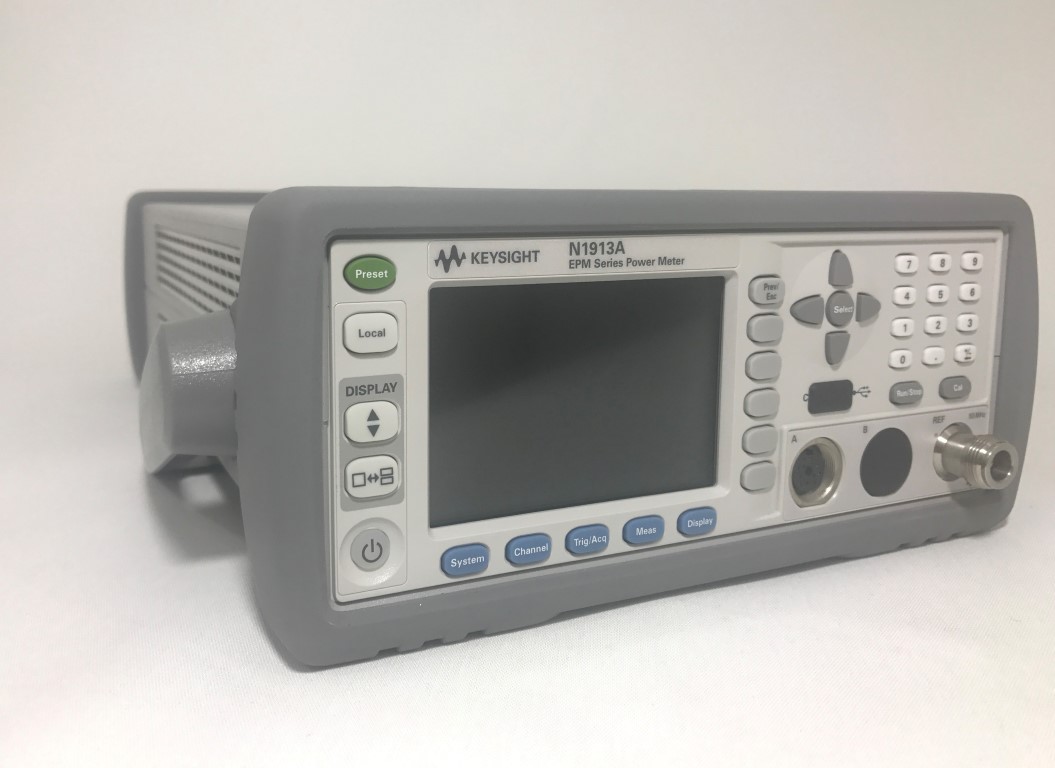

Power Meter & Sensor
Gigatronics Inc.
4650 Norris Canyon Rd.
San Ramon,
CA 94583-1320 USA
http://www.gigatronics.com/		OML Inc.
OML, Inc.
300 Digital Drive
Morgan Hill, CA 95037
Tel (408) 779-2698
https://www.omlinc.com/
