Matrix DIB Insert, 20 GHz SSMP DIB Launch (Side A)
DIB side of resource pair. Requires RIK0217A Matrix Fixture Launch. Frequency up to 20 GHz
Part Number: RIK0216A
In Stock: 0
Estimated Restocking Time: 1-2 weeks
NOTE:
Thread-locking fluid (RIK0204A) should be applied to screws.
Bottom and TOP shown installed.
 |  |
DIB, Bottom View (RIK0216A) | Fixture, Top View (RIK0217A) |
Order Connectors with RI Part Number MNA43L1A
 | SSMP Connector Installation |
| Matrix Top Plate RF Interfaces |
SSMP PCB Application Note_v3.pdf
Vendor Supplied Information
DSASL00166622.pdf P308-2CC on page 6.
Order MNA43L1A from Roos Instruments.

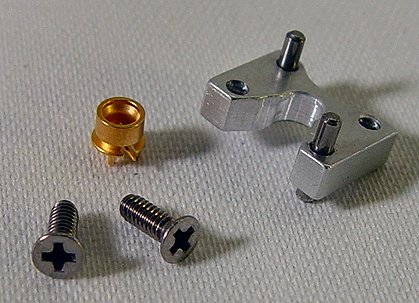

| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | M9C7X22A | 2 | SCREW, FLAT PHIL, 2-56 X 1/4", 100° SS | Hrdwr | ||
| 2 | MNA43L1A | 1 | SSMP MALE STRAIGHT SURFACE MOUNT WITHOUT DETENT | PcbCnnct | ||
| 3 | MNUP706B | 1 | Assy DOC for RIK: 0213 0240 0214 0215 0216 0217 | Dcmnt | ||
| 4 | MPERBG1A | 2 | SCREW, FLAT PHIL, 2-56 X 5/16", 100° SS (.3125) | Hrdwr | ||
| 5 | MPF6T91A | 1 | Assy Doc, SSMP Connector Installation | Dcmnt | ||
| 6 | W1MFFCTB | 1 | SSMP Matrix interface SP | MchFb |
