Matrix Fixture, Sides 8 Slot / 7100

Cassini 8 Slot or RI7100A

Part Number: RIK0159A

In Stock: 0

Estimated Restocking Time: 12+ weeks (limited)

$1,000
DO NOT use this for new Designs.

Suggested Replacement: RIK0333A

NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

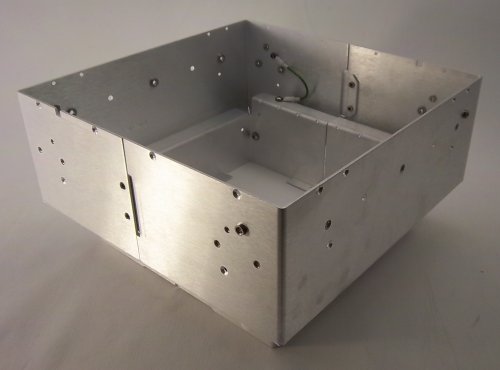

1st image: Metals

2nd image: Hardware

3rd image: Assembled

Matrix Fixture Sides for a 8 Slot Cassini or RI7100A Bottom Plate (RIK0121A)

RIKDesciptionKit TypePriceWeightModified
Product Catalog
121AMatrix Fixture, RI7100 Bottom Plate AssemblyFixtures$3,500006/27/2011 01:03:29 AM
Product Catalog
122AMatrix Fixture, Small Cassini Bottom PlateFixtures$2,884006/27/2011 01:03:29 AM
Product Catalog
145AMatrix Fixture, Cassini 8 TIM Bottom Plate AssemblyFixtures$2,884006/27/2011 01:03:41 AM
Item Ref Part Number QTY Description Category Qty in Stock
1MM5YFXT1A2HANDLE 4" BLACKMchCmp
2S2M673YF1B8SCREW, PAN HEAD, 10-32 X 3/8", SS, w/patchHrdwr
3CM6JGN21A8WASHER, LOCK, #10 INTERNAL TOOTHHrdwr
4HM6JGUB1A1Nut, 4-40, SS, KEPSHrdwr
5JMAHYV31A1WASHER, LOCK, #8 SPLIT, SSHrdwr
6S4MFS3631A1SCREW FLAT PHIL 4-40 X 7/16" SS 100°Hrdwr
7EMGR86B1A4sandwich mount neoprene DIA5/8 L1/2 F-F 8-32MchCmp
8FMGR86C1A8Spring .3 OD 75L .035 WIREMchCmp
9S5MGR8721A4SCREW, BUTTON HEAD, 8-32x1/4", SSHrdwr
10IMH272Y1E1Ground Wire 5" (18AWG)*CblMsc
11S3MH3FNL1A48SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr
12S6MJKN071A4shoulder screw 8-32 3/16DIA 1.25L SS socket headHrdwr
13KMJNFNC2A1knob retract fixture top*MscAssy
14GMKJ4HR1A4Nyliner 3/16 shaft plate thickness .315MchCmp
15BMS84Z84A1RIK0159A Assembly DrawingDcmnt
16DW1MFEGJF2Cover, Lower LONG Fix Dual, 8 SLOTMchFb
17LW1MFEGKG2Cover Upper LONG Fix Dual, 8 SLOTMchFb
18LW1MFFHAB4pin fixture stop DIA .50 X .80L 10-32MchFb
