Matrix Fixture, Side Plate, Bench-top
Interface Cassini Top Plate with Bench Equipment for Engineering and Cal
Part Number: RIK0233A
In Stock: 0
Estimated Restocking Time: Contact Factory
NOTE:
Thread-locking fluid (RIK0204A) should be applied to screws.
2nd image: Shown with Top Plate Installed (RIK0214B)
3rd image: Shown with OPTIONAL "Soft Dock Resource" Side and Rear Plates installed and populated. Opposite side plate is not installed.
4th image: Shown 90° orientation

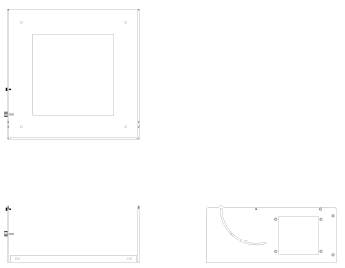

5th image: Top, Front, Side Views
Bench-top Sides for Matrix TOP Plate (RIK0214B).
Optional Soft Dock Resource Plates can be added to provide easy to reach bench connections to a standard Matrix TOP Plate (instead of connecting bench equipment directly to the Inserts).
This is NOT suitable for using CASSINI with Engineering Boards or Soft Dock Probers. Use the standard Fixture layers with Soft Dock Resource Plates instead.
Contact Support for assembly instructions.
Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
---|---|---|---|---|---|---|
1 | MAZW9J1A | 2 | SCREW, SHOULDER, 4-40 X .125DIA X .125LG | Hrdwr | ||
2 | MH3FNL1A | 2 | SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patch | Hrdwr | ||
3 | MP8M566A | 2 | washer brass #4 ID 9/32 OD .01-.04 thick | Hrdwr | ||
4 | MP8M5C6A | 2 | thumb screw 3/8 hex head 4-40 x .5L | MchCmp | ||
5 | W1MFFHUA | 1 | BENCHTOP FIXTURE HOUSING PLATE | MchFb |
