Block, FIX to RIFL Carrier, 16"

FIX Block to RIFL or POD Carriers, Matrix Top Plates

Part Number: RIK0201B

In Stock: 0

Estimated Restocking Time: 12+ weeks (limited)

$470
DO NOT use this for new Designs.
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

For use with the RIK0200A RIFL Active Carrier 13 slots, also referred to as "RIFL Smart Carrier". Cassini systems only, RI7100A can not support smart modules on this carrier. Can hold up to 13 Fixture Modules.

Up to 4x Faster than standard "Active Carriers" found on RI7100A, because each module is controlled directly via RIFL, instead of via C-bits.

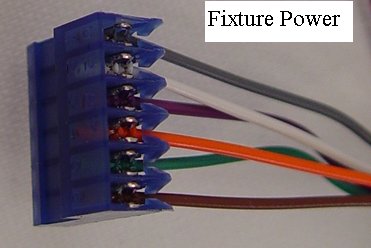

Fixture Power cable is now 16" (was 12") the other two cables remain the original lengths.

Item Ref Part Number QTY Description Category Qty in Stock

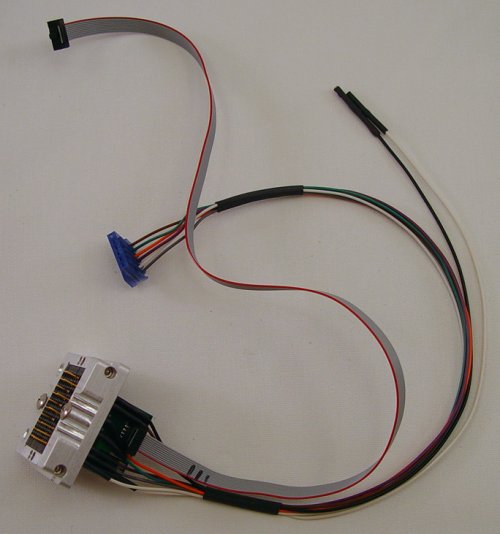

1MMTMKR6B1Harness, 16" Fixture Power + RIFL for 1x13 6KB Carrier*MscAssy
BOM Refreshed:05/11/2020 06:26 PM
