6 In Stock

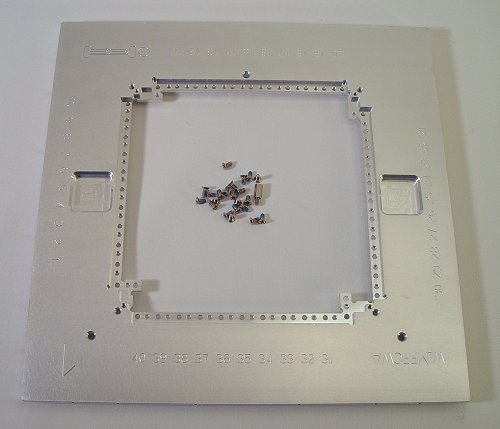

Matrix Fixture, QuickLock Top Plate

Use with QuickLock Clamp and Pedestal Support

Part Number: RIK0214B

Estimated Restocking Time: 1-2 weeks

$680
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.
Matrix TOP PLATE provides mounting locations for all Fixture Inserts. It is compatible with the Quick Lock DUT Clamp and Pedestal Support that creates the "DUT Sandwich" to quickly swap. Fully backward compatible with RIK0163A.

Item Ref Part Number QTY Description Category Qty in Stock
1MGZ88J1A1Standoff, 4-40 x 3/8, M/F 3/16, Hex, SSHrdwr
2MH3FNL1A22SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr
3MNUP706B1Assy DOC for RIK: 0213 0240 0214 0215 0216 0217Dcmnt
4MRY2Z71A1Packaging Box, 12.5" X 12.5" Multi Depth .5" and 1"Sppls
5W1MFFCWB1Top plate Cassini QLMchFb
BOM Refreshed:04/18/2019 06:23 PM
