LIMITED AVAILABILITY
This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 03/29/2012.
View RIKs with Limited Availability for a complete list.
Expiration Reason: Rev B
Aditional replacements may be found by searching for RIK0152 (change the REV letter) or Fixture Top Plate, Matrix Quad, Intest Compatible.
Fixture Top Plate, Matrix Quad, Intest Compatible
Cassini Large Quad Site Fixtures - Intest Compatible
Part Number: RIK0152A
In Stock: 0
Estimated Restocking Time: Contact Factory

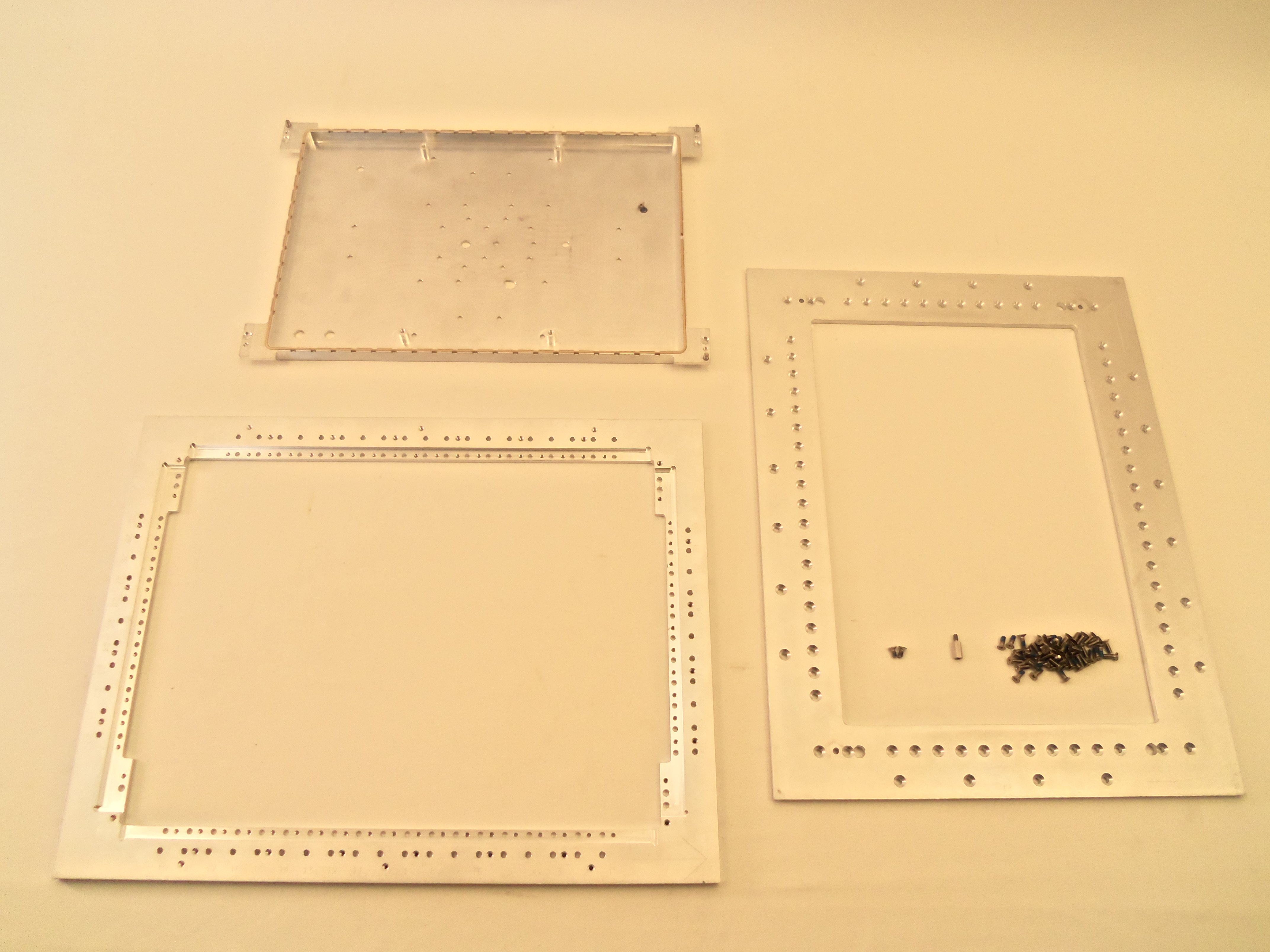

Matrix Fixture, Large DIB Fixture Top Plate Assembly
 | RIK | Desciption | Kit Type | Price | Weight | Modified |
 | 152A | Matrix Fixture, Large Quad Fixture Kit | Fixture Accessories | $1,404 | 12 | 07/20/2011 03:57:02 PM |
Contact Support for assembly instructions.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|

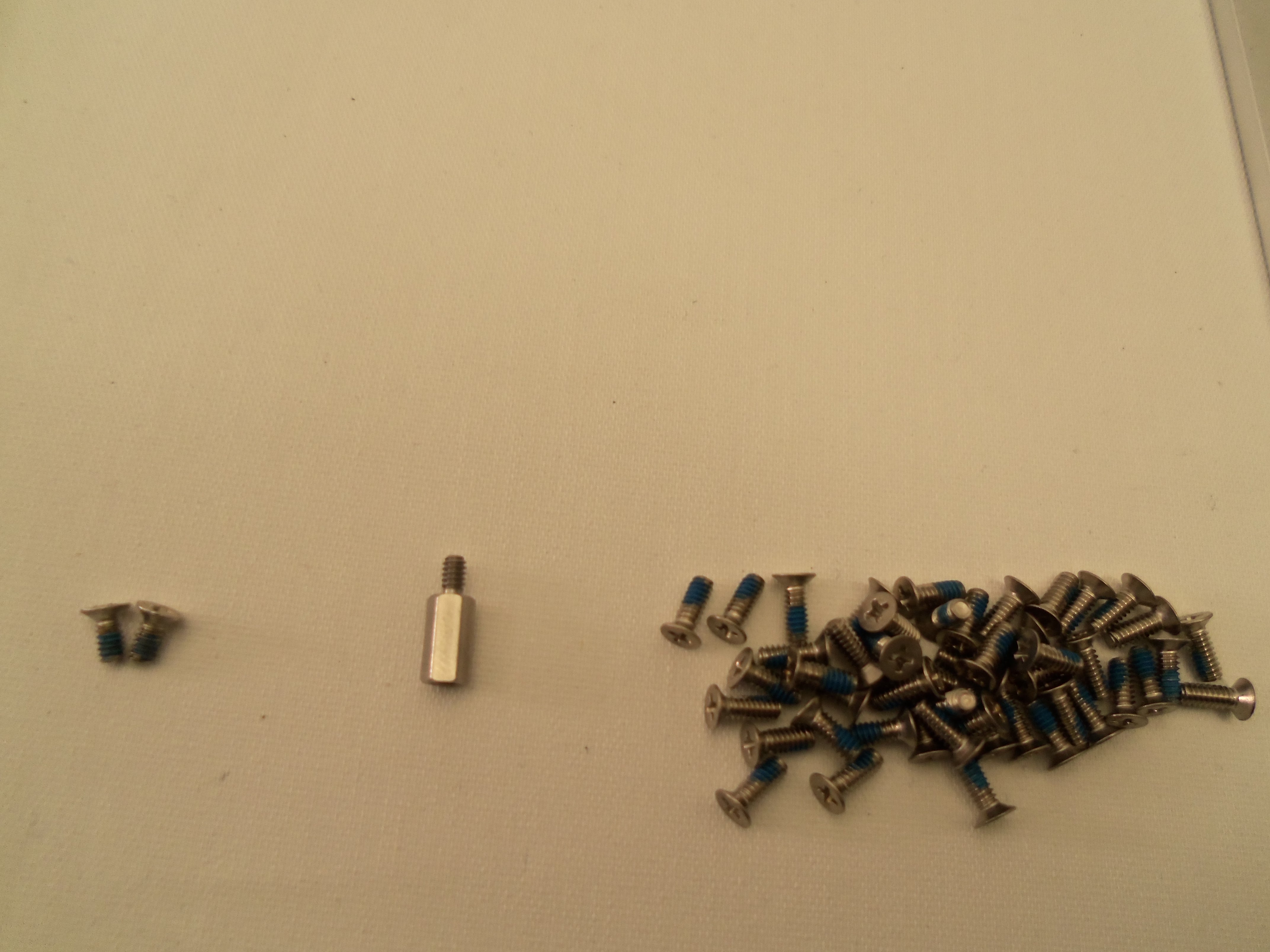

| 1 | D | M6JH3W1A | 30 | SCREW, FLAT PHIL , 4-40 X 3/8", 100° SS | Hrdwr | |
| 2 | G | MA662W1A | 4 | Conductive Elastomer round .071Dia for Fixtures | MchCmp | |
| 3 | E | MGZ88J1A | 1 | Standoff, 4-40 x 3/8, M/F 3/16, Hex, SS | Hrdwr | |
| 4 | F | MH3FNL1A | 14 | SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patch | Hrdwr | |
| 5 | W1MFCPNA | 1 | Label, Fixture Orientation arrow | MchFb | ||
| 6 | B | W1MFEYGB | 1 | support insert QUAD 13.5X10.5* | MchFb | |
| 7 | C | W1MFEYHA | 1 | TOP FIX INSERT QUAD 13.5X10.5 | MchFb | |
| 8 | A | W1MFEYNA | 1 | CLAMP INSERT QUAD 13.5X10.5* | MchFb |
