V-Band, WR15 Calibration Kit Cal Service
Annual service for 50-75 GHz mmWave Calibration Kits
Part Number: RIK0312A

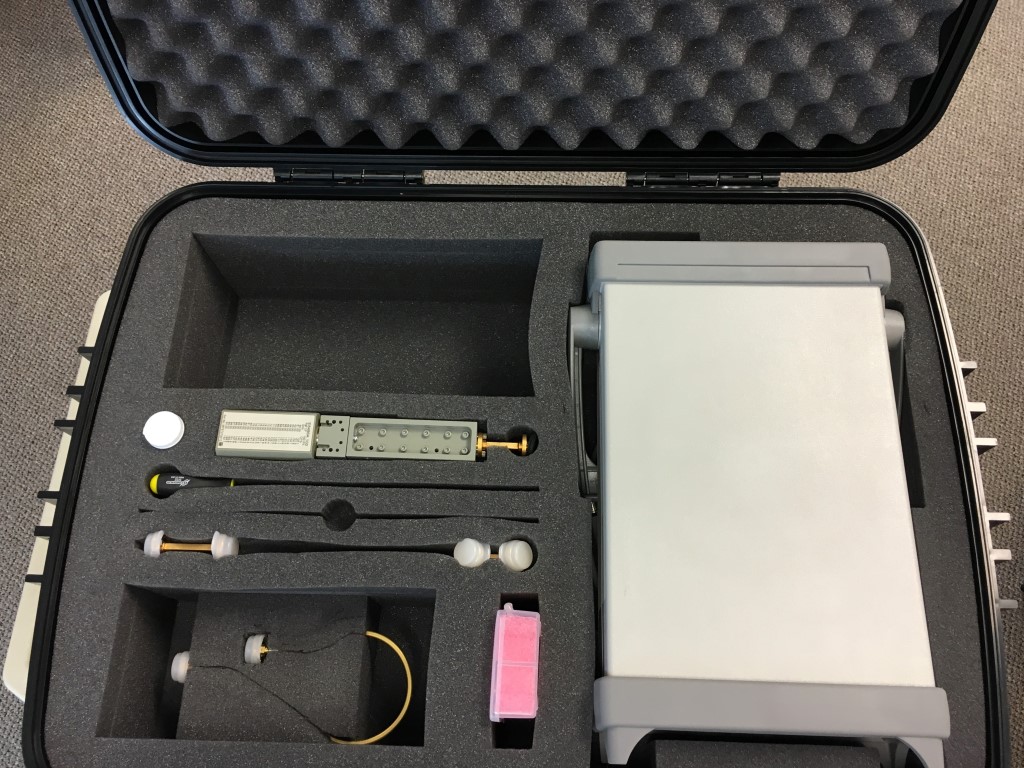

Includes calibration of the WR15 50-75 GHz Cal Kit extension (does not include 18/20/40 GHz Cal Kit components). Includes Power Meter, Sensor and OML waveguide offset standards. Does not include repair/replacement charges (if any) or shipping charges.
Roos Instruments recommended calibration of the Power Meter is required every 1 year. However, the Power Sensor and OML Offset Standards can be maintained with a 2 year calibration cycle.
To issue calibration documentation, cal data for ALL components of the kit need to be be provided to RI.
Typical Turn-around Times, per component: (This is after the components are received at RI)
| Item Name | Vendor | Model Number | Turn Time |

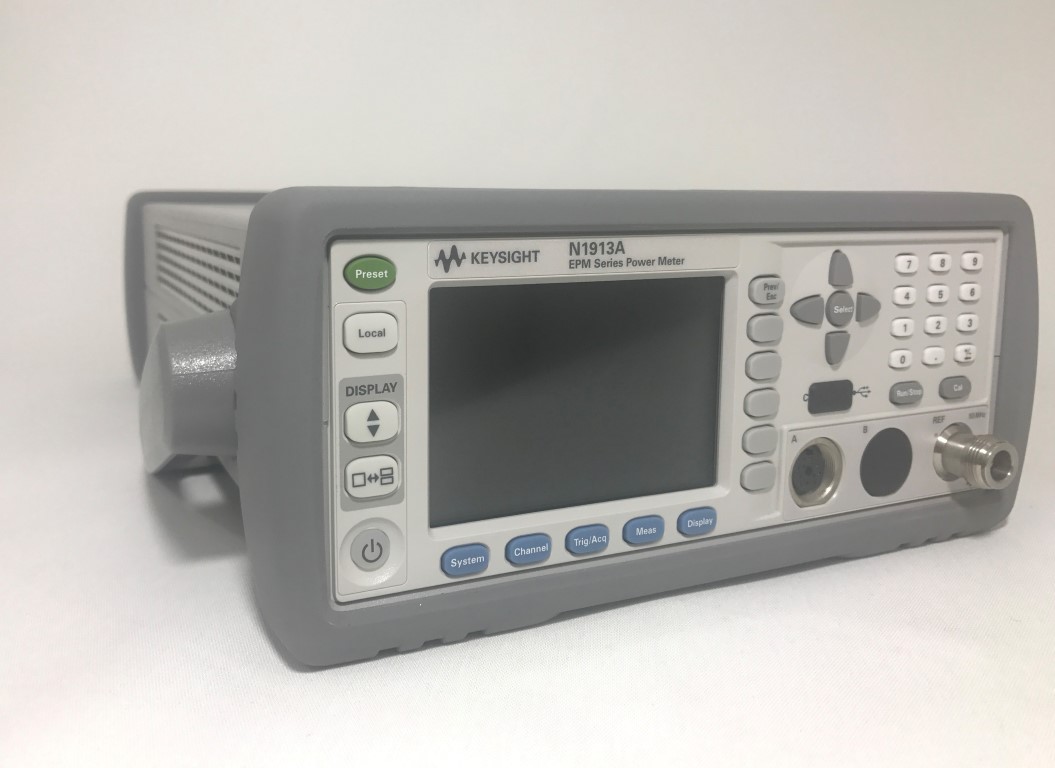

| Power Meter | Keysight | N1913A opt 101 opt 200 | 2 weeks |

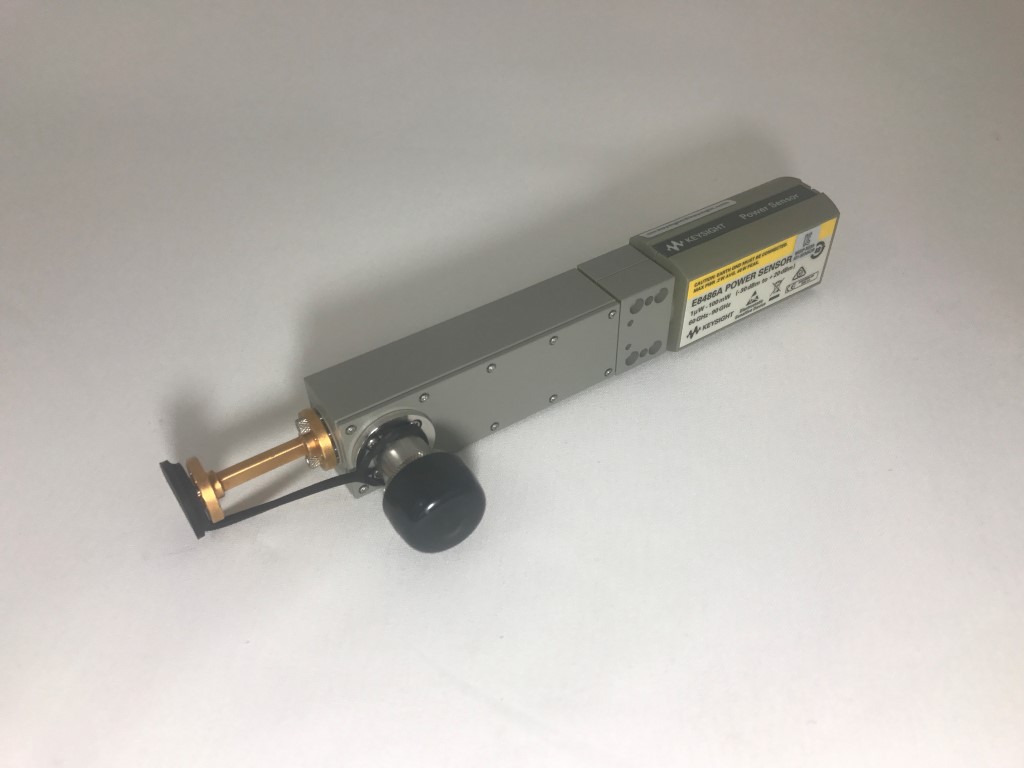

| Power Sensor - 60GHz (2 yr Cal cycle) | Agilent Keysight |  | 4 weeks |
| WR15 OML Offset Standards | OML | V12CAL-1 | 2 weeks |
