LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 03/29/2011. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0163A

Expiration Reason: Improved Functionality

Aditional replacements may be found by searching for RIK0094 (change the REV letter) or Fixture Large 30 Coax DUT Clamps, Dual Site.

No New Designs

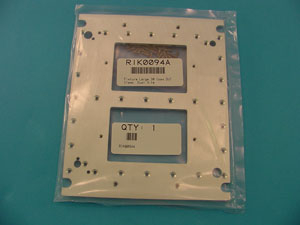

Fixture Large 30 Coax DUT Clamps, Dual Site

Dual Site RI7100A

Part Number: RIK0094A

Estimated Restocking Time: 12+ weeks (limited)

$910
DO NOT use this for new Designs.

Suggested Replacement: RIK0163A

NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

These high frequency DUT clamps have insulation rings

Elastomer Installed.

Note: Reducing the elastomer's exposer to air will prevent oxidation.

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1M6JH3W1A32SCREW, FLAT PHIL , 4-40 X 3/8", 100° SSHrdwr
2MA662W1A12Conductive Elastomer round .071Dia for FixturesMchCmp
BOM Refreshed:05/11/2020 06:25 PM
