Out of Stock: Ships 1-2 weeks ARO No New Designs

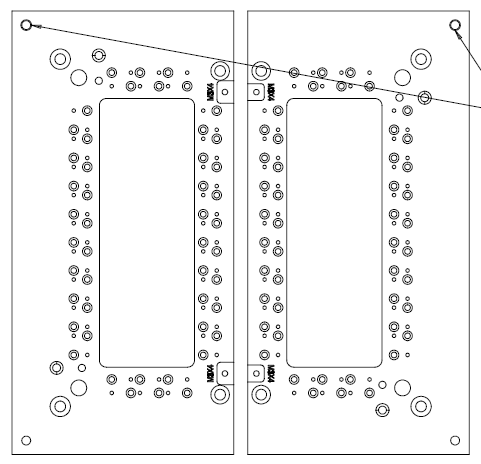

QuickLock, 2 piece 2 Site DUT Clamp, Seiko/Epson

QuickLock Top Plate, Symmetric Dual Site, Matrix

Part Number: RIK0262A

In Stock: 0

Estimated Restocking Time: 1-2 weeks

$260
DO NOT use this for new Designs.
Allows for quick swap of DIB, works only with the Quick Lock TOP PLATE RIK0214A. Requires Dual DUT Clamp RIK0259A. Requires QuickLock, Center Bar Support RIK0261A.

Works with all current Fixture Launch/Inserts, but not compatible with old-style "saddle" launches for the old, non-QuickLock center rail design.

Item Ref Part Number QTY Description Category Qty in Stock
1MA662W1A12Conductive Elastomer round .071Dia for FixturesMchCmp
2MH3FNW1A4SCREW, FLAT PHIL, 4-40 X 5/16", 100° SS, w/patchHrdwr
3MNE8HT6A8SCREW 8-32 X 3/8 flat phil 100°Hrdwr
4MNY9YR6A4screw M3 X 4MM flat phil ssHrdwr
5W1MFFMSA2Bridge DUT clamp halfMchFb
6W1MFFMZA1Dut clamp halves with pins L&R*MchFb
BOM Refreshed:04/20/2019 07:05 PM
