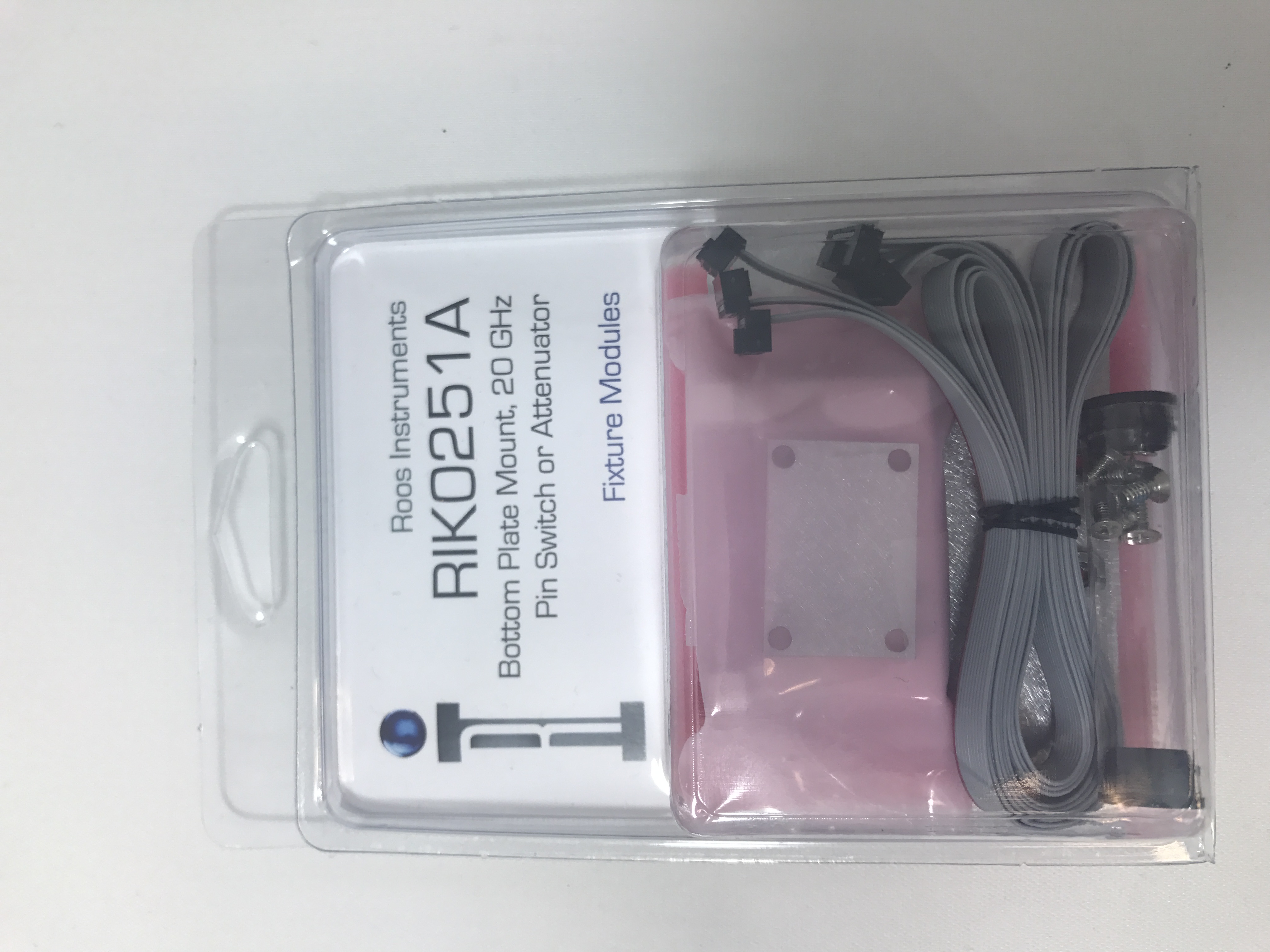

Bottom Plate Mount, 20 GHz Pin Switch or Attenuator
Hardware mount for switch module
Part Number: RIK0251A
Use the Carrier Mount for when the majority of the switched ports are Inserts (DUT), otherwise use this Bottom Plate Mount for when the majority of switched ports are TIMs.
Includes QTY 3, 14" Ribbon cables. Can Support up to 3 modules.

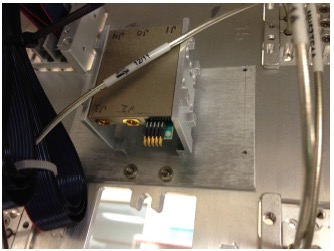

Mount up to 3 Pin Switch or Attenuators to the bottom plate of the Cassini Fixture, adjacent to the AUX port in the center of the board.
Related Documents:
 | Subject | Topic(s) | Categories |
 | Apria Fixture Module Application Note | Fixture,Specs,Test-plan | Fixtures,Modules & RIKs |
Contact Support for assembly instructions.

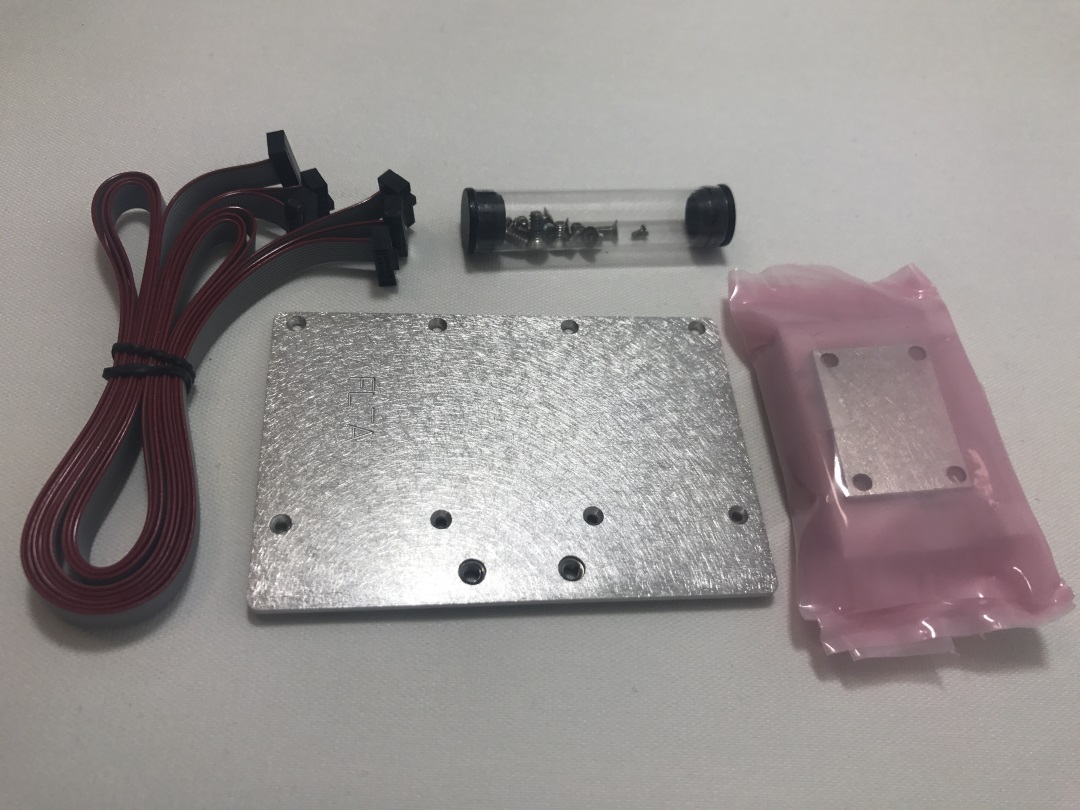

| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | S1 | GC44WW2A | 4 | Screw, Flat straight, 0-80 X .125 Stainless | Hrdwr | |
| 2 | S3 | MH3FNL1A | 2 | SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patch | Hrdwr | |
| 3 | S2 | MN2JWH5A | 8 | Screw, Flat Phil, 2-56 X 3/16", 100°, SS | Hrdwr | |

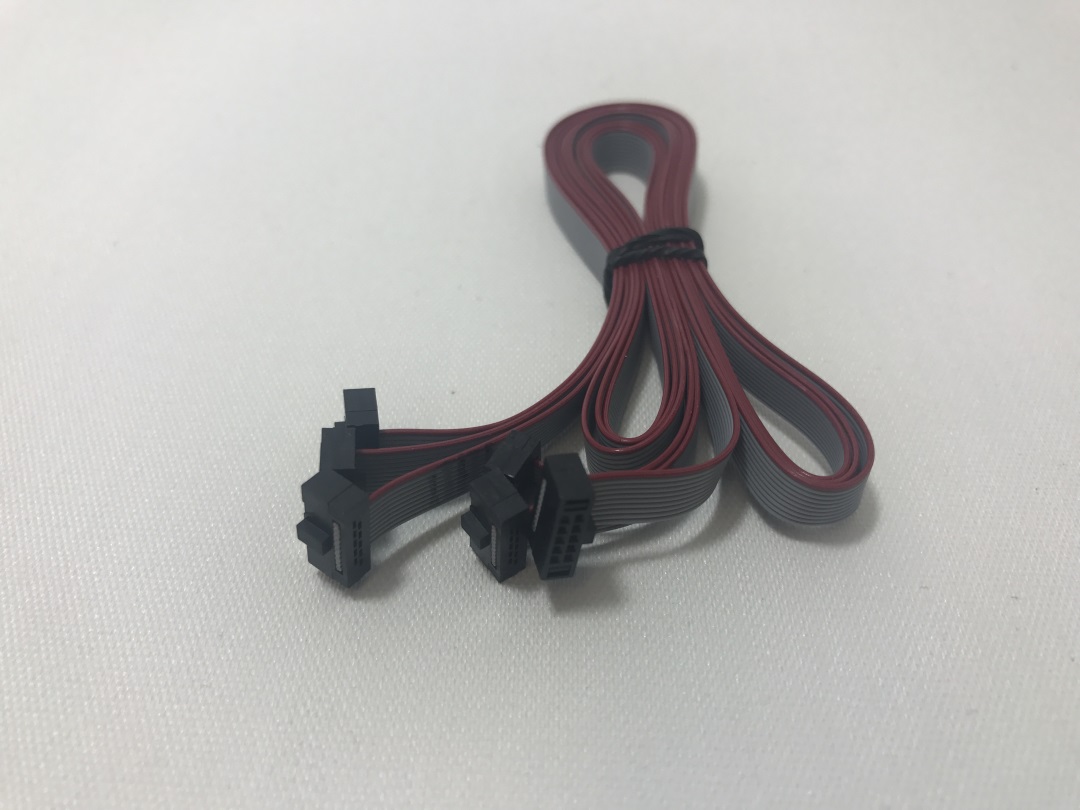

| 4 | D | MRP5PA4A | 3 | Cable Assy Ribbon 10c 20in .050 | Rbbn | |
| 5 | MRXHF64A | 1 | RIK0251A Assembly Instructions | Dcmnt | ||
| 6 | B | W1MFFHTB | 2 | BRKT PCB switch | MchFb | |
| 7 | C | W1MFFKVB | 2 | cable clamp PCB switch | MchFb | |

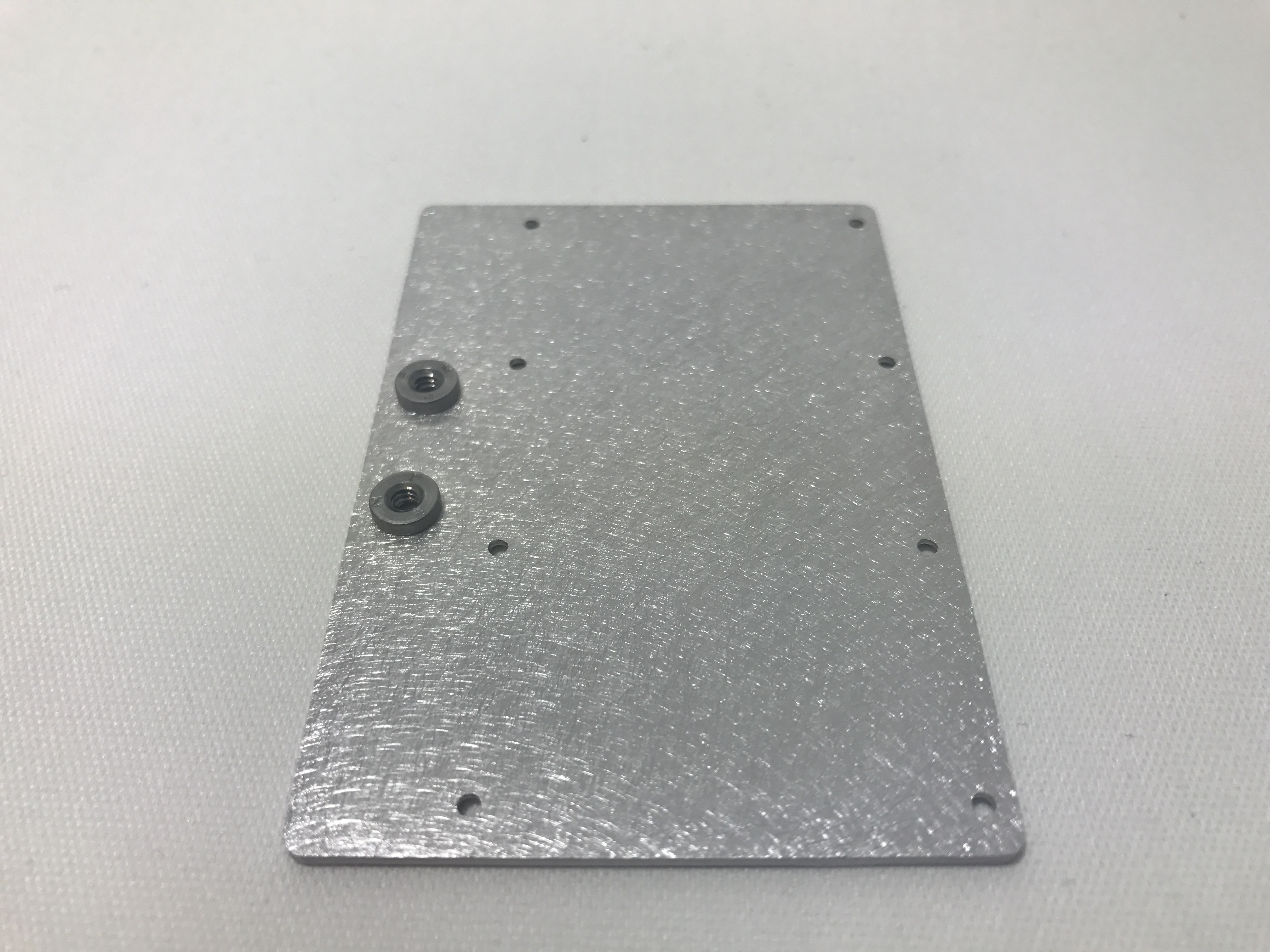

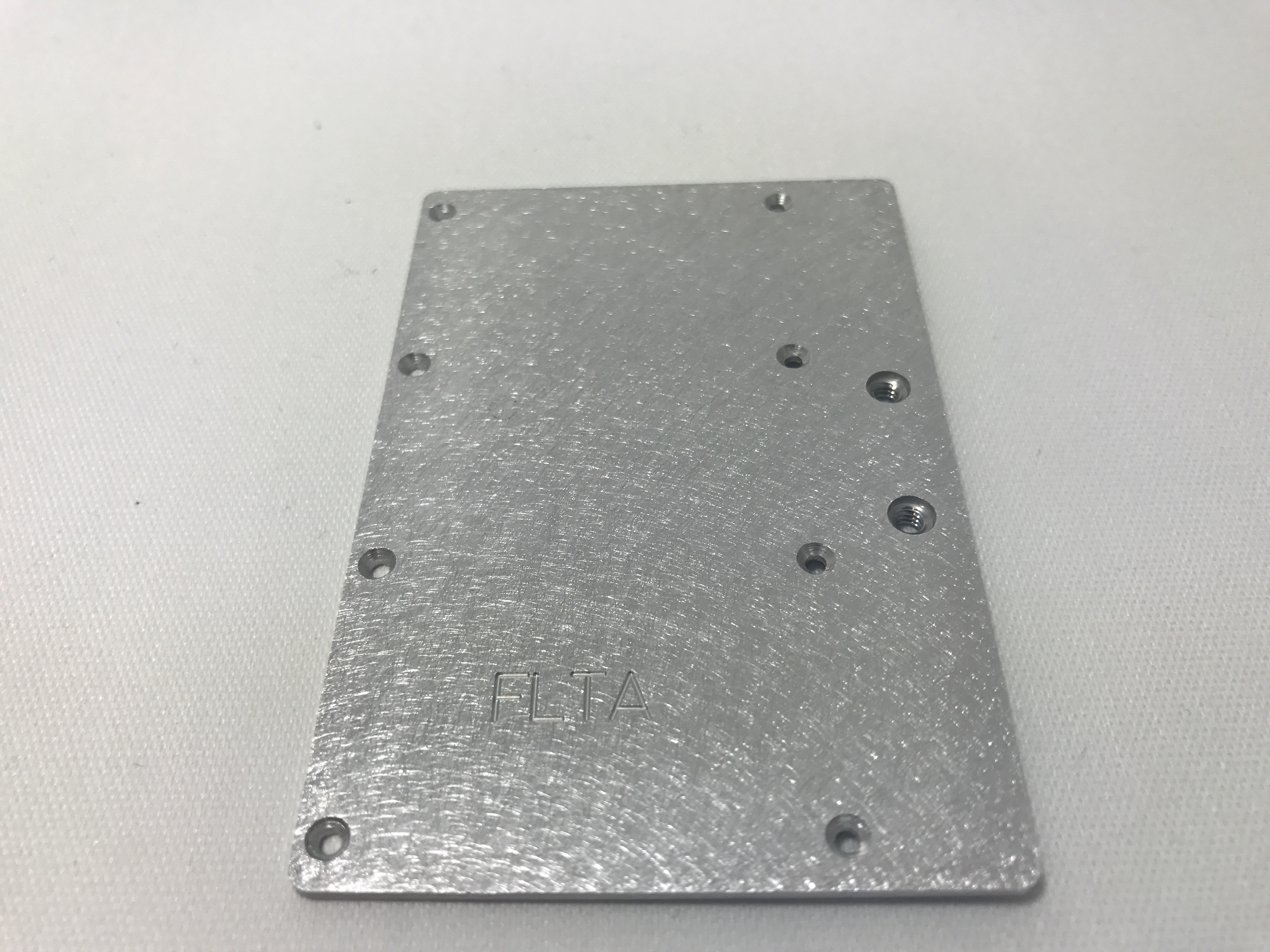

| 8 | A | W1MFFLTA | 1 | FIXTURE APRIA MOUNT PLATE | MchFb |
