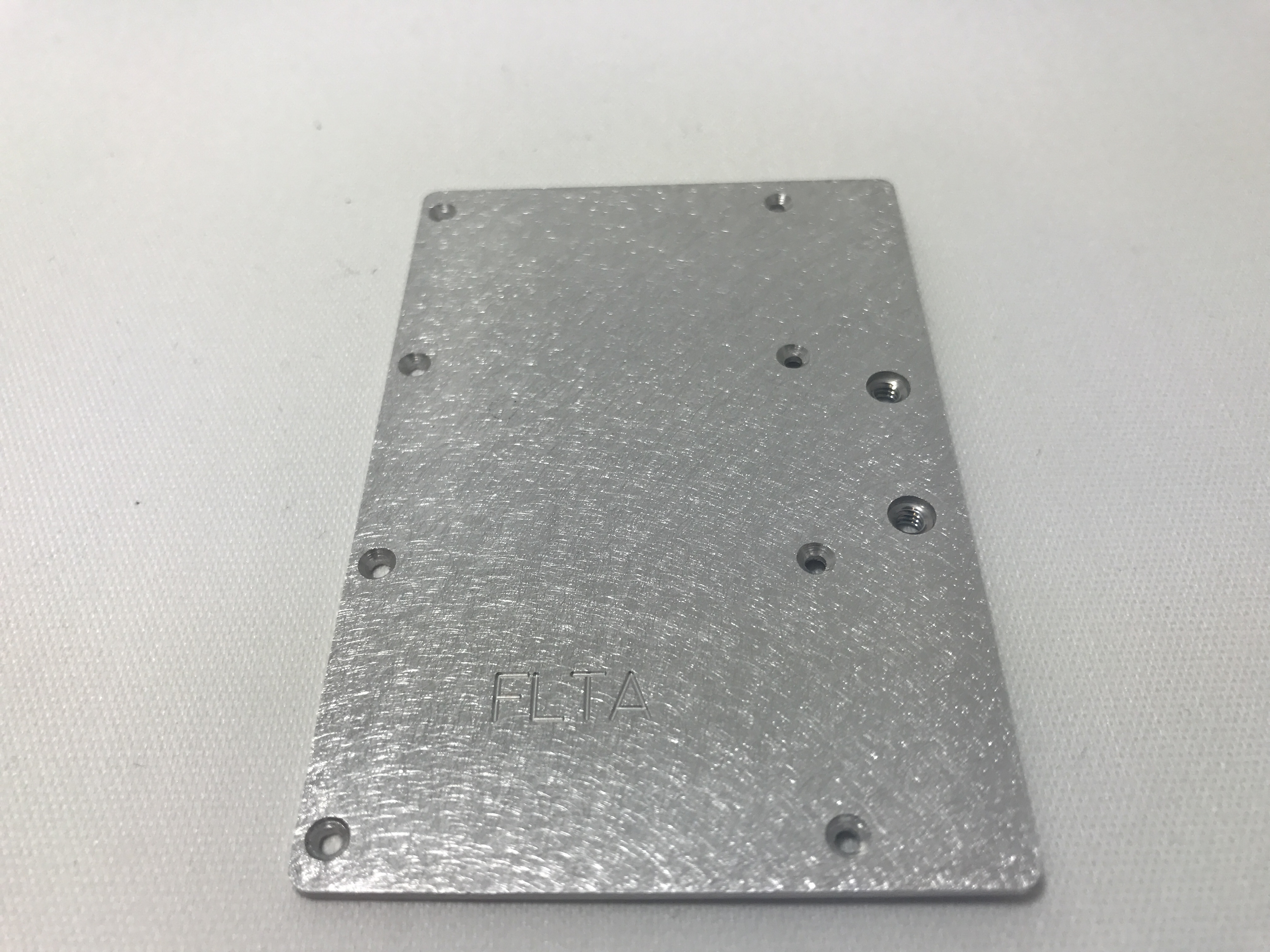

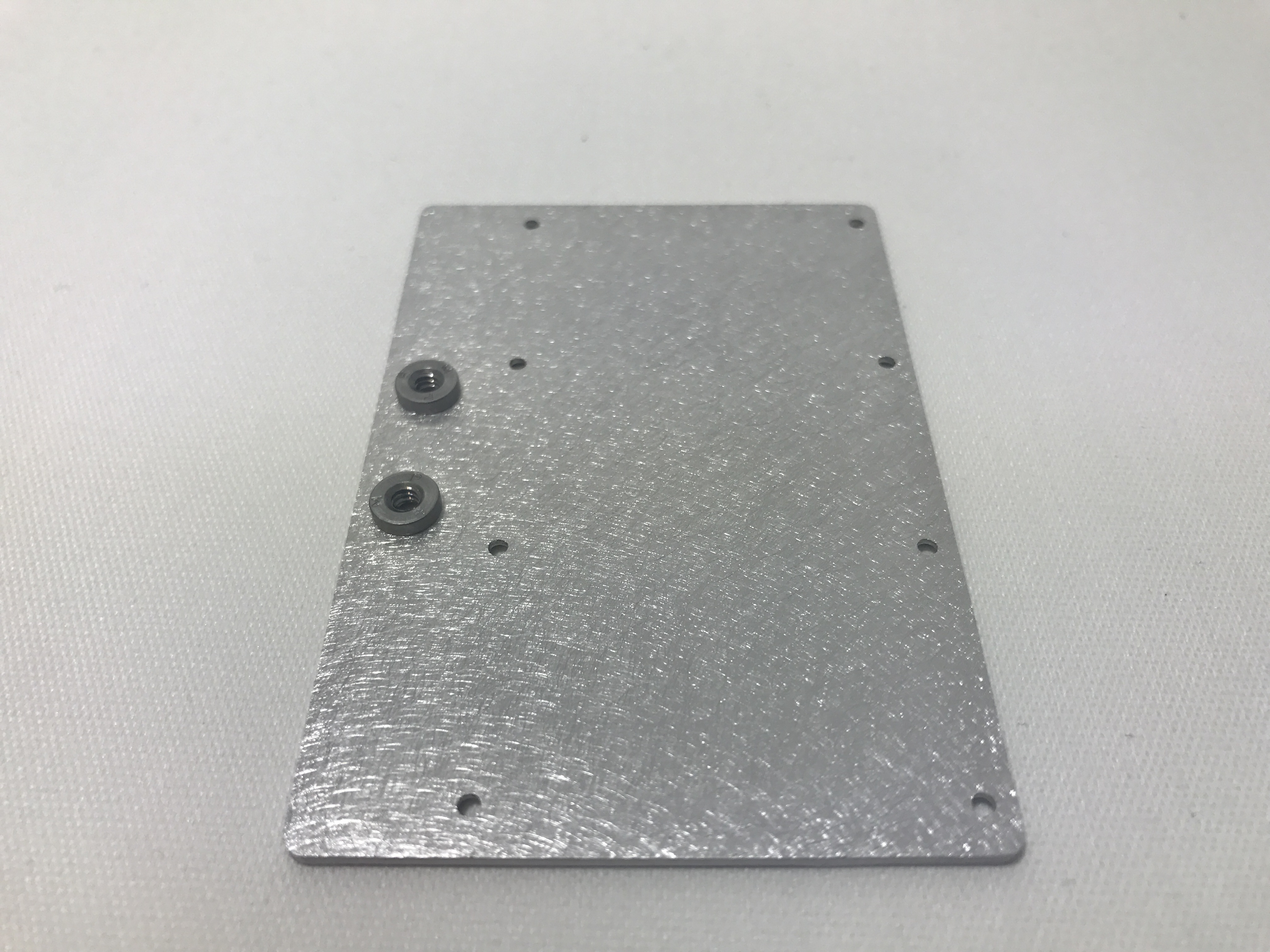

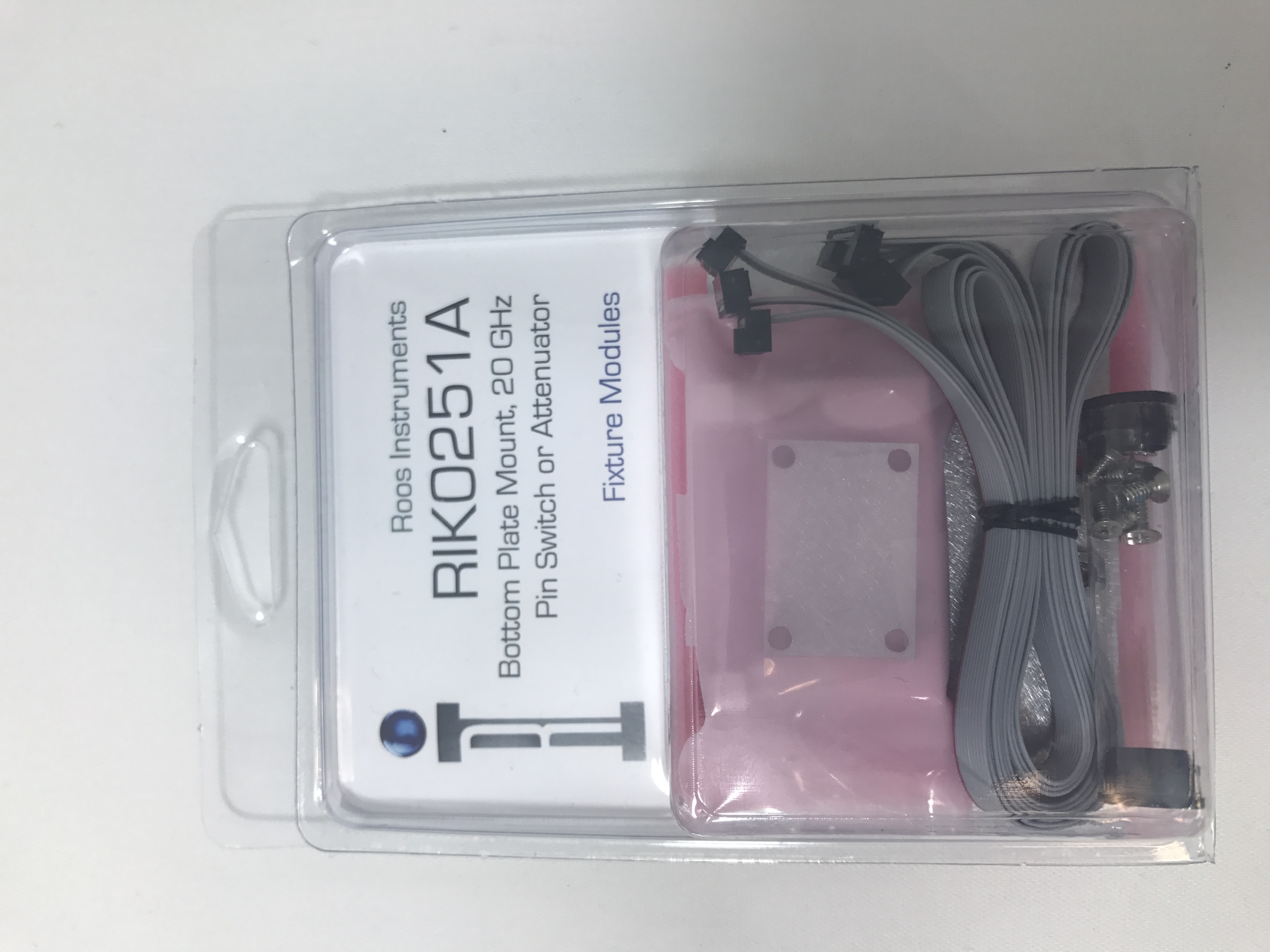

Bottom Plate Mount, 20 GHz Pin Switch or Attenuator

Hardware mount for switch module

Part Number: RIK0251A

Estimated Restocking Time: 1-2 weeks


Use the Carrier Mount for when the majority of the switched ports are Inserts (DUT), otherwise use this Bottom Plate Mount for when the majority of switched ports are TIMs.

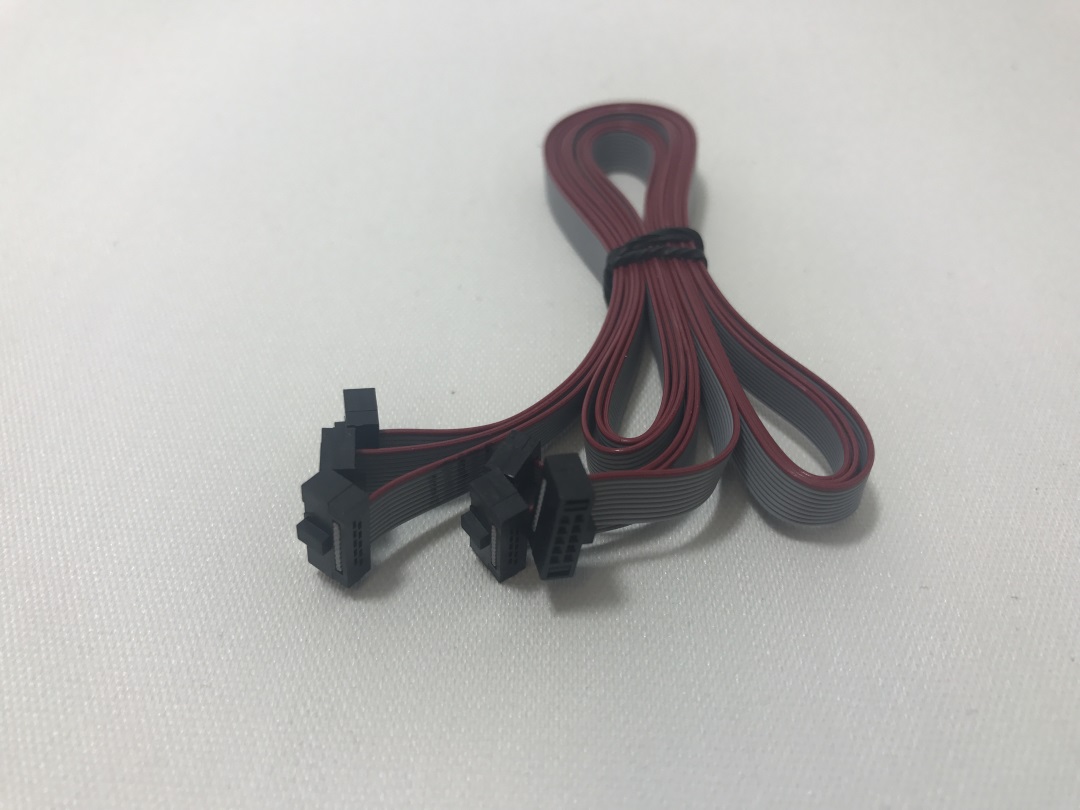

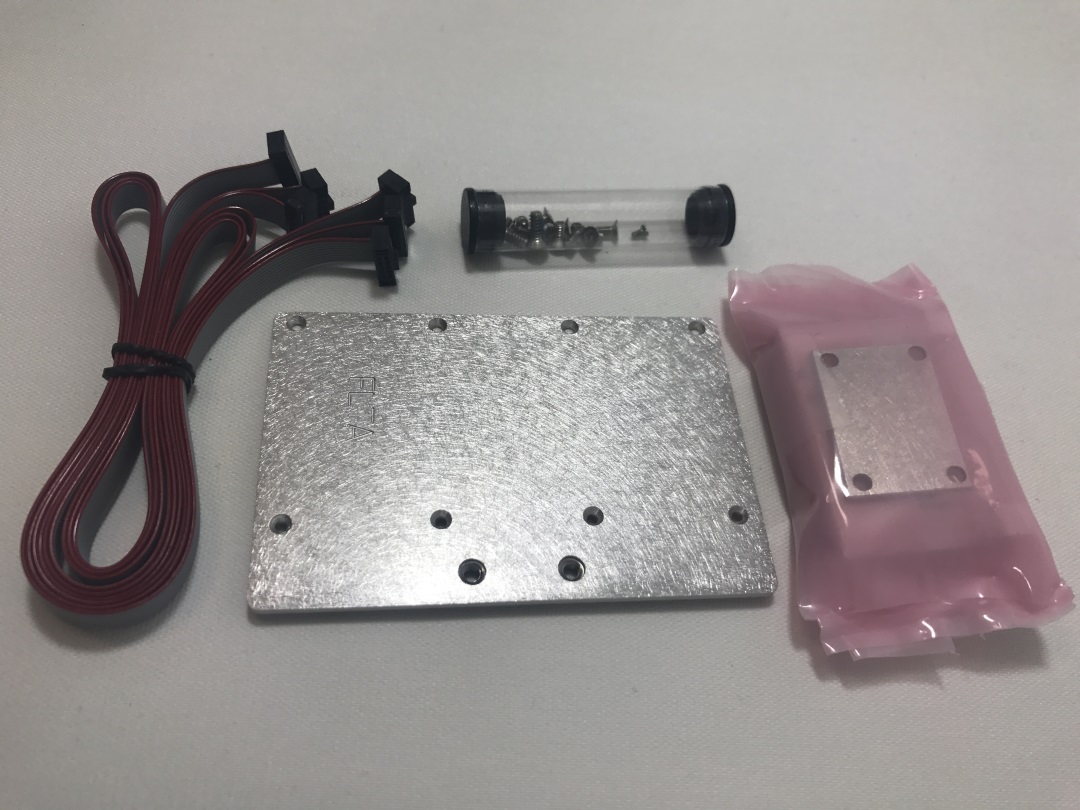

Includes QTY 3, 14" Ribbon cables. Can Support up to 3 modules.

Mount up to 3 Pin Switch or Attenuators to the bottom plate of the Cassini Fixture, adjacent to the AUX port in the center of the board.

Related Documents:

User account required Create new account
Product Docs
Apria Fixture Module Application NoteFixture,Specs,Test-planFixtures,Modules & RIKs

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1S1GC44WW2A4Screw, Flat straight, 0-80 X .125 StainlessHrdwr
2S3MH3FNL1A2SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr
3S2MN2JWH5A8Screw, Flat Phil, 2-56 X 3/16", 100°, SSHrdwr
4DMRP5PA4A3Cable Assy Ribbon 10c 20in .050Rbbn
5MRXHF64A1RIK0251A Assembly InstructionsDcmnt
7CW1MFFKVB2cable clamp PCB switchMchFb
