Driver Board for Fixture Switches & Attenuators
Drive Fixture Switching to 20GHz
Part Number: RIK0255A

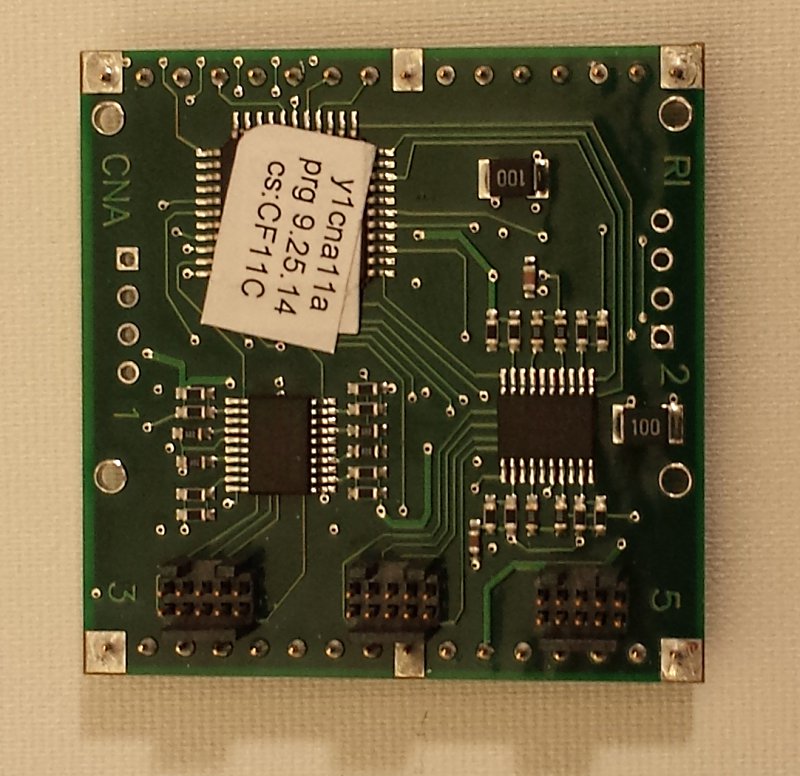

Driver board for high performance Fixture switches. Only this module is attached to the carrier directly and configured in the Fixture Def with the Device Connection Editor, the switch/attenuator modules are mounted to the Fixture with mounting hardware and cables sold separately.
 | | Part # | Description |
 | | RIK0251A | Bottom Plate Mount, 20 GHz Pin Switch or Attenuator |
| | RIK0252A | Carrier Mount, 20 GHz Pin Switch or Attenuator |
| | RIK0256A | Driver Board, Ribbon Cable, 20" (Qty 1) |
Fixture modules sold separately: RIK0250A Absorptive Switch , RIK0253A Reflective Switch, RIK0254A Attenuator .

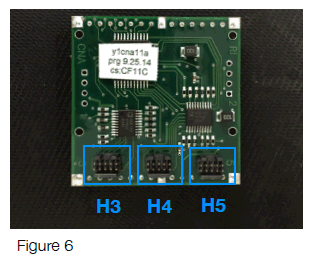

There are three headers on the driver board (H3, H4, and H5) as shown in the Figure 6. The different headers provide specific voltage/current drive conditions to support multiple modules and types of modules. Reference the chart below for the required header for each type of module.
Module Header
Attenuator H3 only
MMIC Switch H3 or H4
Reflective Switch H3, H4, or H5
Absorptive Switch H3 or H4
Related Documents:
| Fixture Module - Switch & Step/Attenuator Application Note | Fixture,Specs,Test-plan | Fixtures,Modules & RIKs | Today |
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | Y000CNA1 | 1 | Pin Sw Atten Driver* | Modl |
