This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 06/09/2017.
View RIKs with Limited Availability for a complete list.
Suggested Replacement: RIK0135C
Expiration Reason: Raised pins 0.002 inches to make better contact with Prober (still works with DIBs too)
Aditional replacements may be found by searching for RIK0135 (change the REV letter) or Matrix DC Insert, 16 pin, with Shroud.
Matrix DC Insert, 16 pin, with Shroud
DC to DIB, 16 Pins, Shroud (DIB only, Probe Cards need revC)
Part Number: RIK0135B
In Stock: 0
Estimated Restocking Time: 12+ weeks (limited)

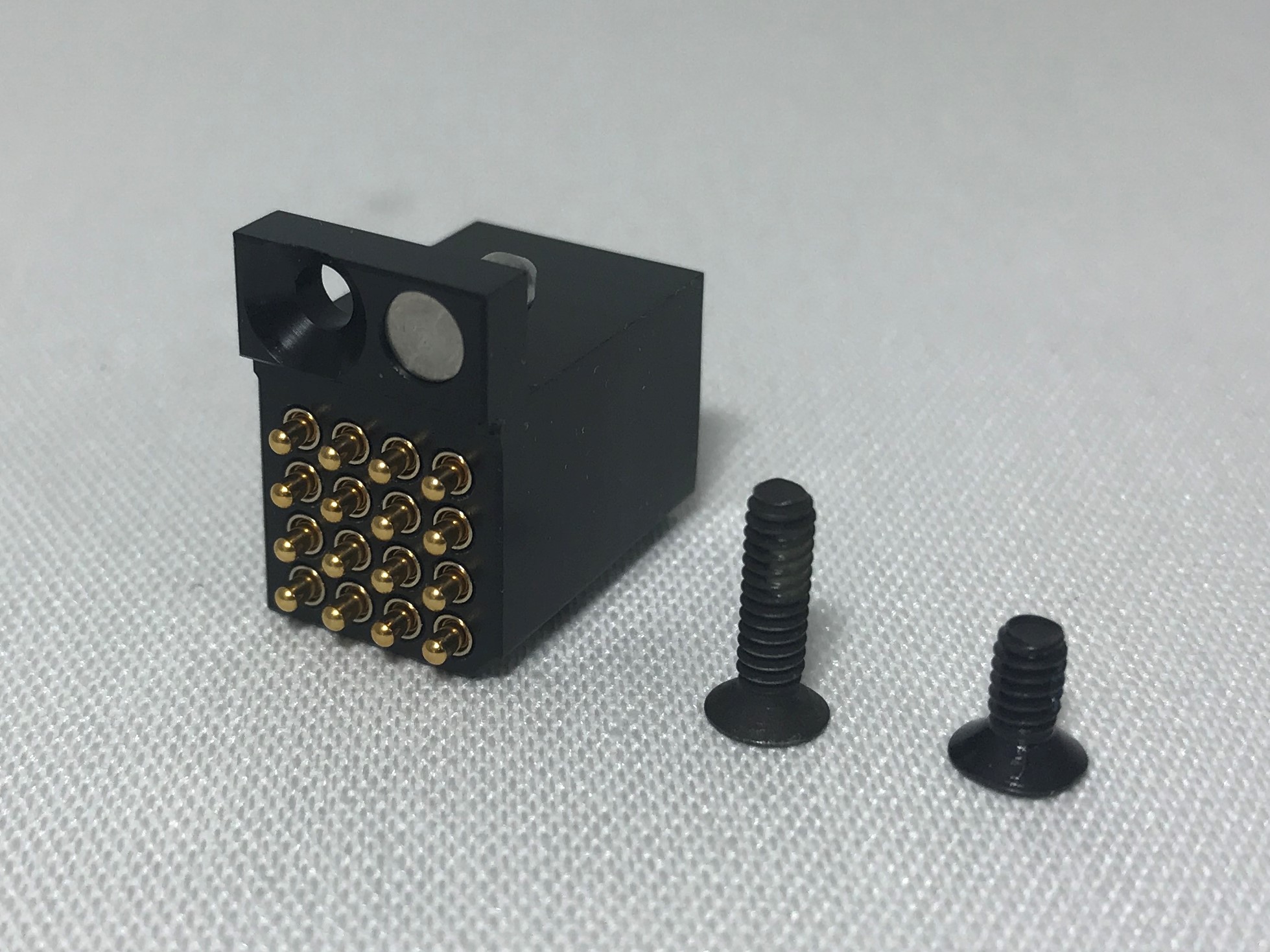

Connects DC resources from Block to DIB. Includes a shroud to prevent shorting pins.
A 12 Pin Insert is available as RIK0115A
 | Part # | Applications | Description | IN TYPE | M/F | QTY | OUT Type | M/F | QTY | Length (in.) | Max Freq. (GHz) | QOH | Price | SubCategory |
 | RIK0007A | Used to transfer DC power in fixture | DC Jumper Wires, 28AWG, 4"+8" (qty 20+20) | DC (Jumper) | F | 40 | DC (Jumper) | F | 40 | 8 | 0 | 0 | $446 | DC Wires (Jumper) |
| RIK0007B | DC Starter Kit for 8 Port Fixtures | DC Jumper Wires, 28AWG 4"+8"+12" (qty 20+20+20) | DC (Jumper) | F | 60 | DC (Jumper) | F | 60 | 12 | 0 | 12 | $453 | DC Wires (Jumper) |
| RIK0128A | DC Starter Kit for 16 Port Fixtures | DC Jumper Wires, 28AWG, 12"+18" (qty 30&30) | DC (Jumper) | F | 60 | DC (Jumper) | F | 60 | 18 | 0 | 1 | $453 | DC Wires (Jumper) |
| RIK0157A | DC Power (Extra Long) | DC Jumper Wire Set 28AWG 18" (40 pieces) | DC (Jumper) | F | 40 | DC (Jumper) | F | 40 | 18 | 0 | 5 | $368 | DC Wires (Jumper) |
| RIK0190A | DC power (Short), Daisy Chain | DC Jumper Wires, 28AWG, 4" (qty 10) | DC (Jumper) | F | 10 | DC (Jumper) | F | 10 | 4 | 0 | 4 | $129 | DC Wires (Jumper) |
| RIK0191A | DC power (Mid) | DC Jumper Wires, 28AWG, 8" (qty 10) | DC (Jumper) | F | 10 | DC (Jumper) | F | 10 | 8 | 0 | 5 | $129 | DC Wires (Jumper) |
| RIK0192A | DC power (Long), 20RF Top plates | DC Jumper Wires, 28AWG, 12" (qty 10) | DC (Jumper) | F | 10 | DC (Jumper) | F | 10 | 12 | 0 | 3 | $129 | DC Wires (Jumper) |
Related Documents:
See Also DUT Interface Board (DIB) Design Guide for more overall design information and examples.
| Subject | Last Modified |
| Matrix Top Plate RF Interfaces | 03/25 |
| Test Fixture Design - Matrix Fixture Dut Interface Board (DIB) Layout | 02/11 |
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MTNYH51B | 1 | RIK0135B Insert w shroud Packaging Assembled* | MscAssy |
