Matrix RF Insert, 15 GHz, 3 tab, SMA, QuickLock

For use with QuickLock clamp. RF signals from SMA cables to DIB board. Frequency Band to 15GHz

Part Number: RIK0212A

In Stock: 0

Estimated Restocking Time: 1-2 weeks

$200
DO NOT use this for new Designs.
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

Supports DIB launch signals up to 15 GHz. Use 3 tab launch pattern on DIB. Compatible with QuickLock DIB hardware.

Not compatible with previous style SMA Insert (RIK0117A).

Related Documents:

User account required Create new account
Product Docs
Matrix Top Plate RF Interfaces
Topic
Product Docs
Test Fixture Design - Matrix Fixture Dut Interface Board (DIB) Layout

5. RF Single SMA - 15GHz: RIK0212A


Consists of a single press in SMA adapter. It is designed for use on the Matrix top plate and is placeable at 0.5" pitch. It is intended to be for RF connections with a bandwidth up to 15 Ghz. The DIB interface has a cutout "tongue" that makes contact with the connector center conductor. Each of the ground pads have their own "tab" for connection.

NOTE: 50 Ohm trace is intentionally placed at edge of launch center conductor nearest DUT to prevent parasitic stub affects at frequency.

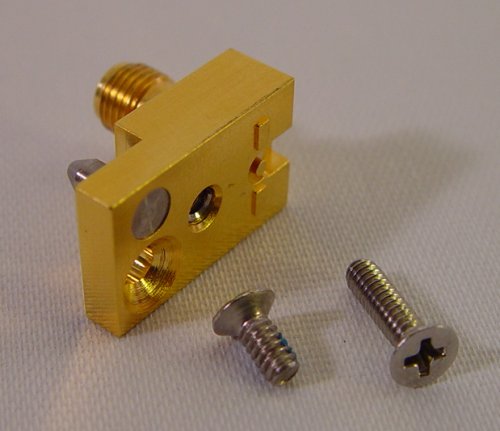

15GHz SMA Cable Side
15GHz SMA Interface Side

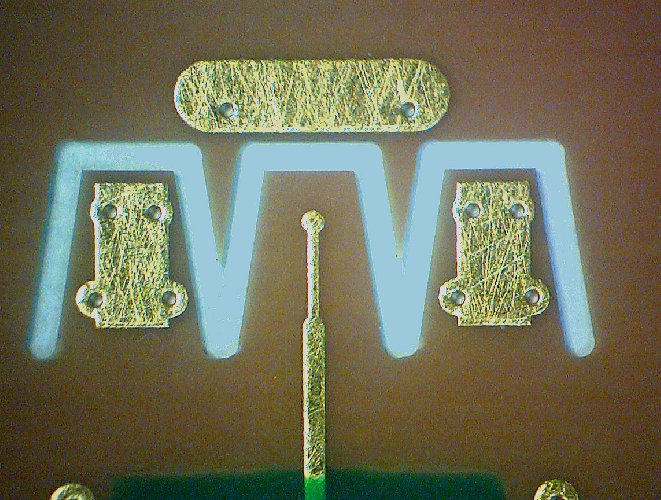

15GHz SMA Landing

SMA 3 launch dim DIB expanded.pdfSMA 3 launch dim DIB.pdfPDF drawing with dimensions for RIK0212A
Item Ref Part Number QTY Description Category Qty in Stock
1ARSZT65A1RIK0212A, Package Back PDF (sheet of 9)*Dcmnt
2MFS3631A1SCREW FLAT PHIL, 4-40 X 7/16", 100°, SSHrdwr
3MH3FNL1A1SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr
4MNE8EG6A1Insert FIX SMA 3 tab ASSY*MscAssy
5MRSEF51A1Clam Shell Packaging Inside Cavity 1"X1.62"X 0.688DPSppls
BOM Refreshed:05/11/2020 06:26 PM
