30 In Stock

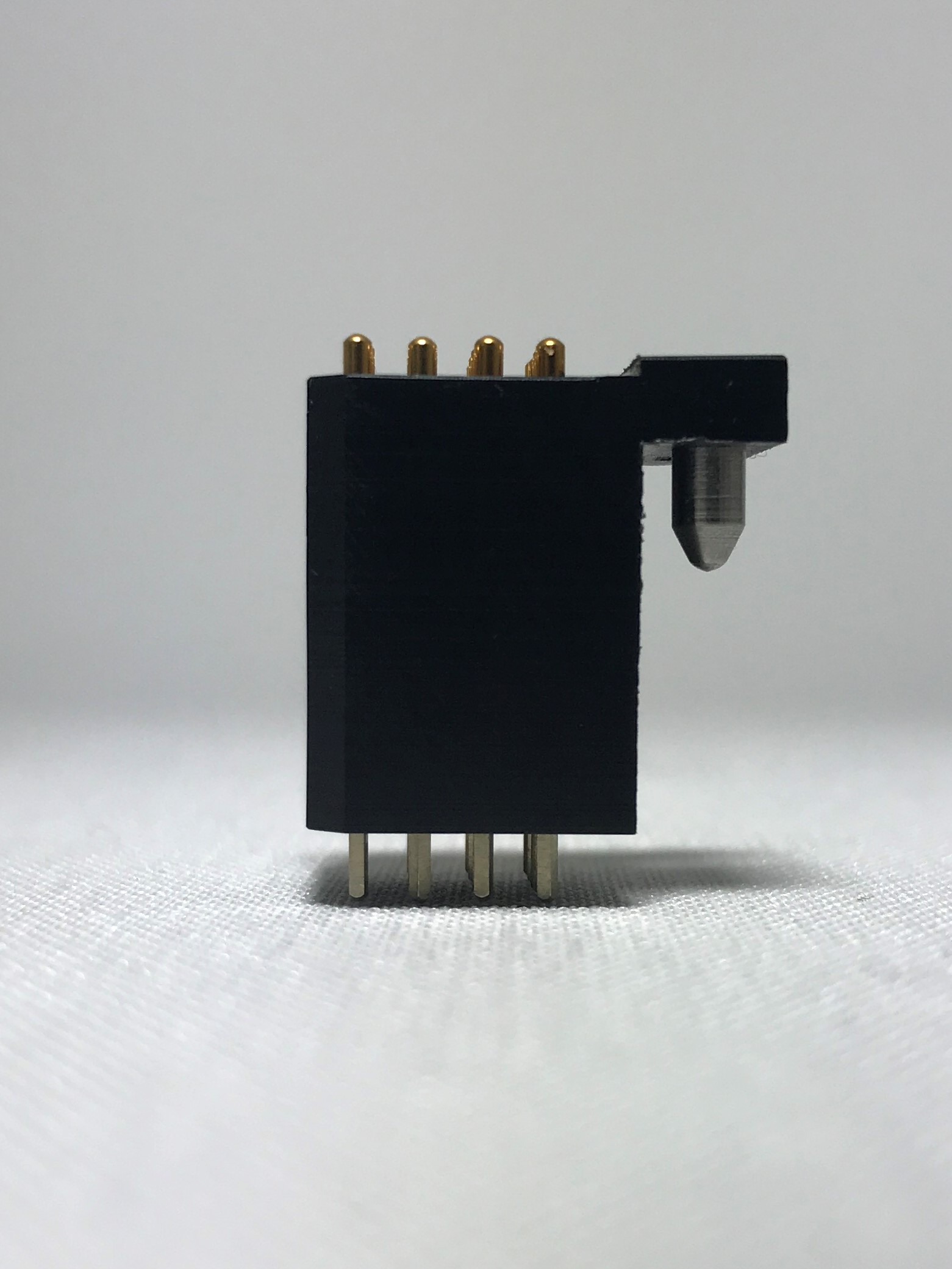

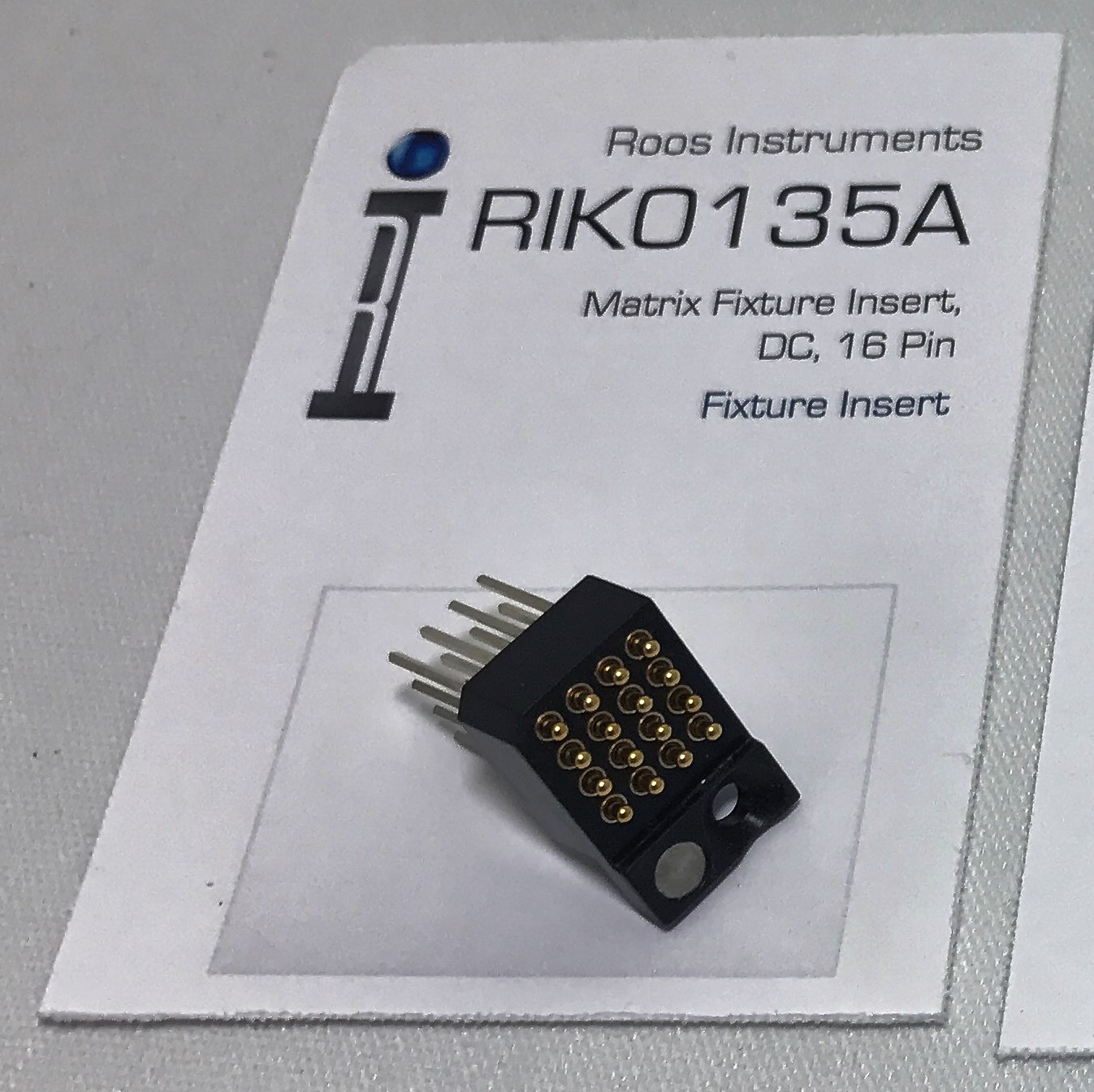

DC Insert, 16 pin, Shroud, 0.02 in Taller

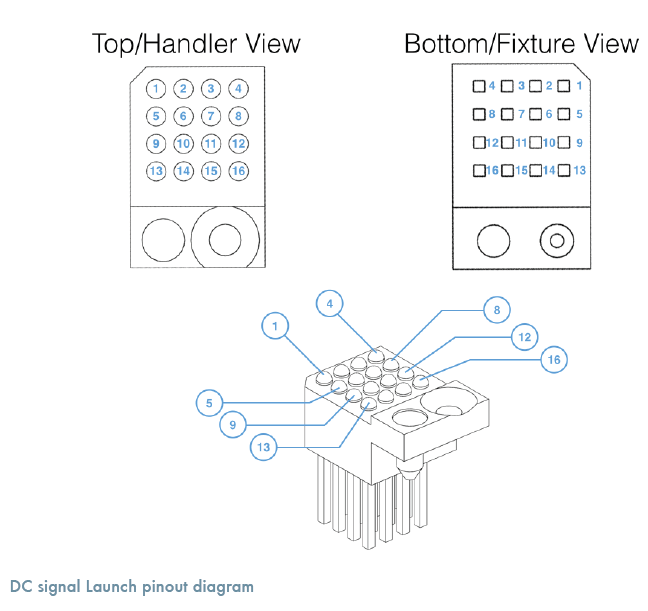

DC to DIB, 16 Pins for DIB and Probe Card Interface

Part Number: RIK0135C

Estimated Restocking Time: 1-2 weeks

$180

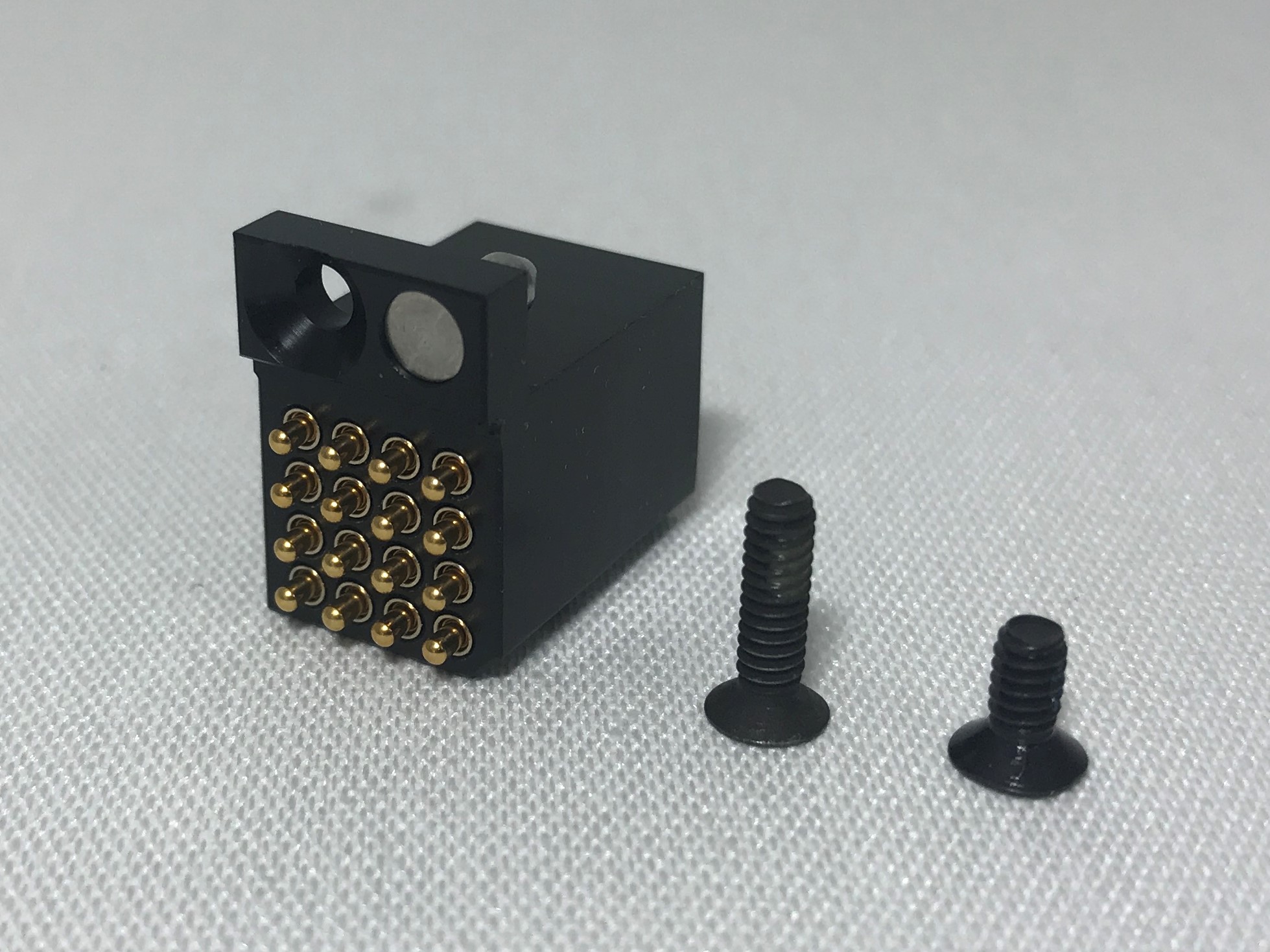

NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.
Connects DC resources from Block to DIB or Probe Card. Includes a shroud to prevent shorting pins. The pogo pin shelf is 0.020 inches taller to allow the pins to make a stronger connection to the DIB/Probe Card. The pins can compress 0.020 inches more to be backward compatible with DIB designs.

A 12 Pin Insert is available as RIK0115A

Part #ApplicationsDescriptionIN TYPEM/FQTYOUT TypeM/FQTYLength (in.)Max Freq. (GHz)QOHPriceSubCategory
Product Catalog
RIK0007AUsed to transfer DC power in fixtureDC Jumper Wires, 28AWG, 4"+8" (qty 20+20)DC (Jumper)F40DC (Jumper)F40800$446DC Wires (Jumper)
Product Catalog
RIK0007BDC Starter Kit for 8 Port FixturesDC Jumper Wires, 28AWG 4"+8"+12" (qty 20+20+20)DC (Jumper)F60DC (Jumper)F6012012$453DC Wires (Jumper)
Product Catalog
RIK0128ADC Starter Kit for 16 Port FixturesDC Jumper Wires, 28AWG, 12"+18" (qty 30&30)DC (Jumper)F60DC (Jumper)F601801$453DC Wires (Jumper)
Product Catalog
RIK0157ADC Power (Extra Long)DC Jumper Wire Set 28AWG 18" (40 pieces)DC (Jumper)F40DC (Jumper)F401805$368DC Wires (Jumper)
Product Catalog
RIK0190ADC power (Short), Daisy ChainDC Jumper Wires, 28AWG, 4" (qty 10)DC (Jumper)F10DC (Jumper)F10404$129DC Wires (Jumper)
Product Catalog
RIK0191ADC power (Mid)DC Jumper Wires, 28AWG, 8" (qty 10) DC (Jumper)F10DC (Jumper)F10805$129DC Wires (Jumper)
Product Catalog
RIK0192ADC power (Long), 20RF Top platesDC Jumper Wires, 28AWG, 12" (qty 10) DC (Jumper)F10DC (Jumper)F101203$129DC Wires (Jumper)

Related Documents:

User account required Create new account

Database 'Product Docs', View 'Manuals\Cassini Manual\Table Of Contents', Document 'DUT Interface Board (DIB) Design Guide'See Also DUT Interface Board (DIB) Design Guide for more overall design information and examples.



SubjectLast Modified
Product Docs
Matrix Top Plate RF Interfaces03/25
Product Docs
Test Fixture Design - Matrix Fixture Dut Interface Board (DIB) Layout02/11

Install to any Insert location around the edge of any Fixture Top Plate.

Mechanical Drawing:

W1MFESHF insert fix 16 pogo.pdfW1MFESHF insert fix 16 pogo.pdf

W1MFESHF insert fix 16 pogo.stpW1MFESHF insert fix 16 pogo.stp

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1M673SZ1A1SCREW, FLAT PHIL, 4-40 X 1/4", SS, BLK OX, W/NYLOCKHrdwr
2MSTXPU4C1RIK0135 DC Launch Insert 16pin, 0.020 taller*MscAssy
BOM Refreshed:10/17/2019 06:23 PM
