8 In Stock No New Designs

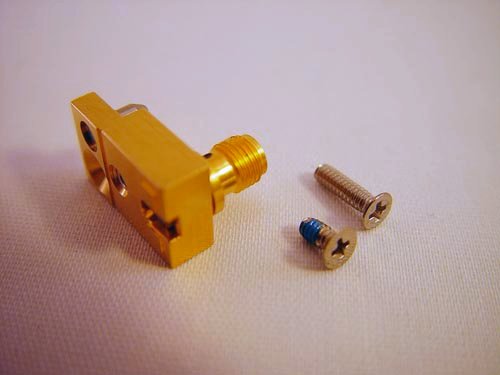

Matrix RF Insert, 10 GHz, Single SMA

RF to DIB, 1 SMA, DC to 10+ GHz, NOT recommended for use QuickLock

Part Number: RIK0117A

Estimated Restocking Time: Limited Availability: 12+ weeks

DO NOT use this for new Designs.

Suggested Replacement: RIK0212A

NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

Single SMA block used for single site application with one launch tab on the DIB.

If adapting old designs to QuickLock, use the RIK0259A "8 Screw" QuickLock that avoids DIB bowing induced grounding issues caused with this SMA Insert.

If using QuickLock clamps, you should use the RIK0212A to prevent possible grounding issues due to upward pressure from pogos around the center of the DIB.

Related Documents:

User account required Create new account
Product Docs
Matrix Top Plate RF Interfaces

Database 'Product Docs', View 'Manuals\Cassini Manual\Table Of Contents', Document 'DUT Interface Board (DIB) Design Guide'See DUT Interface Board (DIB) Design Guide for more design information and examples.

Product Docs
Test Fixture Design - Matrix Fixture Dut Interface Board (DIB) Layout
Product Docs
Reference: RF Insert Single Launch Data

Item Ref Part Number QTY Description Category Qty in Stock
1MH3FNL1A1SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr
2MJ42AR1A1Assy Matrix Fixture Insert, single SMA*AssyKt
BOM Refreshed:05/11/2020 06:25 PM
